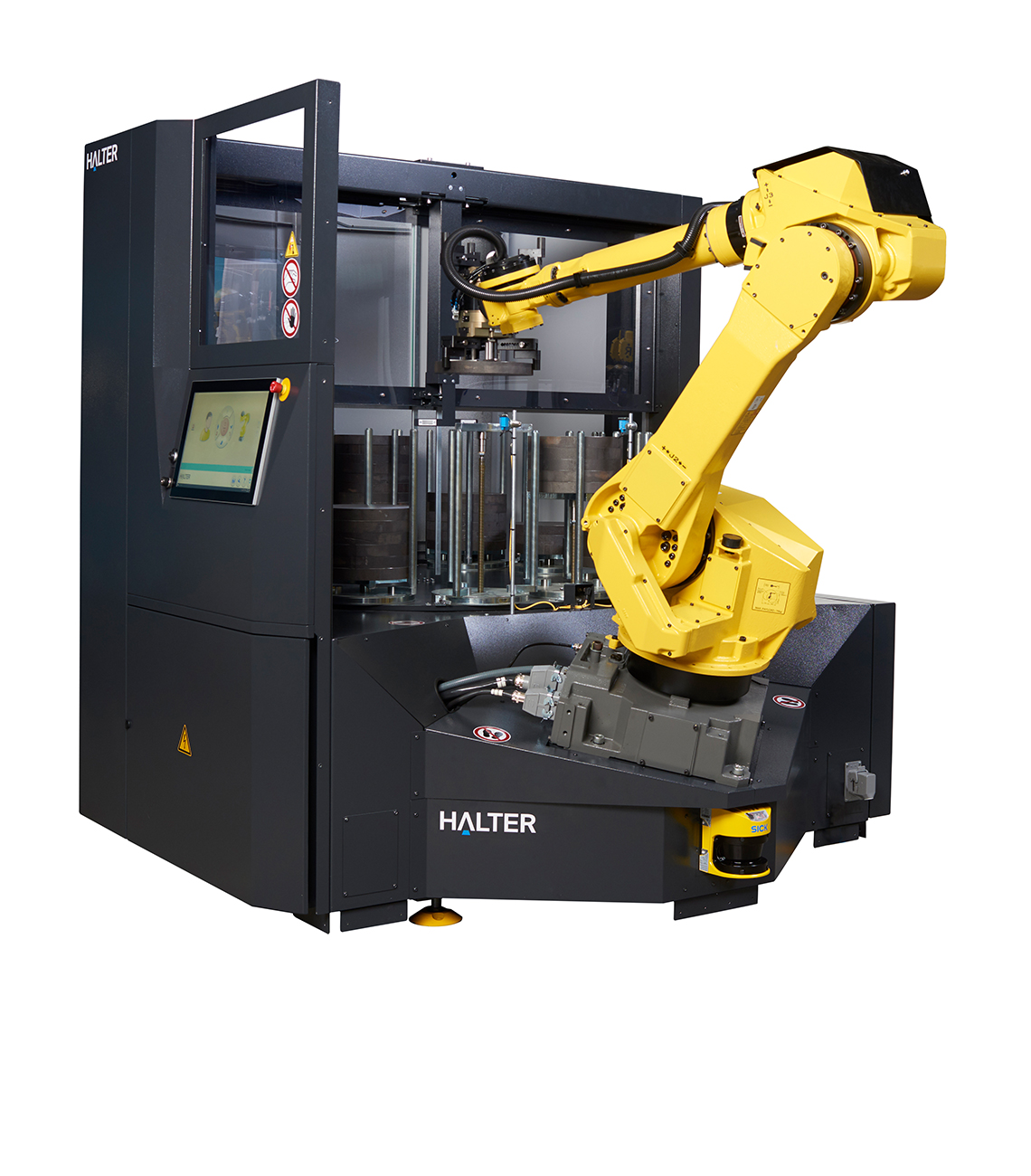

The HALTER LoadAssistant® TURNSTACKER system is optimized for pairing with turning centers and lathe type machines. The storage system features a stackable layout that allows for higher capacities of smaller parts. The TURNSTACKER system has a turn-around station for two-sided machining.
You are here
Turnstacker Compact 12
Turnstacker
Turnstacker Compact 12
Capacity
Max Workpiece Diameter
|
⌀135 mm (5.3 in.)
|
Max Workpiece Height
|
175 mm (6.9 in.)
|
Max Part Weight
|
12 kg (26.4 lbs)
|
Part Storage
Max Part Capacity
|
22/33/44/55/77/187
|
Max Storage Load
|
775 kg (1,708.6 lbs)
|
Stacking Stations
|
12
|
Dimensions
Length
|
1,250 mm (49.2 in.)
|
Height
|
2,220 mm (87.4 in.)
|
Width
|
1,250 mm (49.2 in.)
|
