The ONA Compact AD and AF Series is built to deliver high-production performance and reliability. The AD/AF Series is equipped with repeatability features delivering consistent accuracy to ensure precision and quality on every workpiece. The AD Series features simultaneous controls on up to 5 axes, low maintenance cost, low power consumption, and has a built-in collision protection system.
You are here

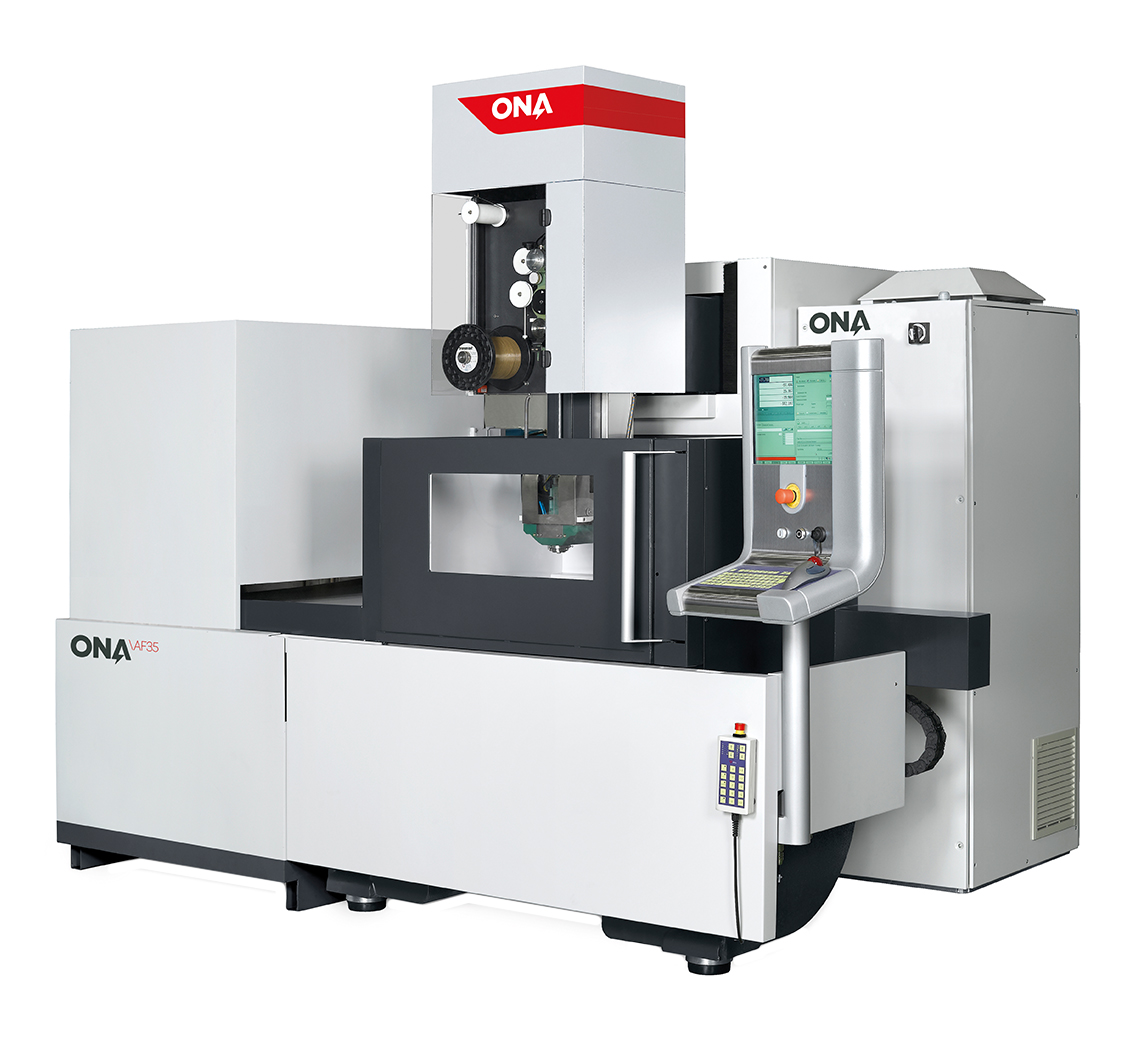

AF35
Compact AD/AF Series
AF35
Travels
Travel Distance X-axis
|
600 mm (23.6 in.)
|
Travel Distance Y-axis
|
400 mm (15.7 in.)
|
Travel Distance Z-axis
|
400 mm (15.7 in.)
|
Travel Distance U-V Axis
|
120 x 120 mm (4.7 x 4.7 in.)
|
Max Conical Cut Angle
|
±30°/87 mm (3.4 in.)
|
Worktank
Length
|
1,060 mm (41.7 in.)
|
Width
|
750 mm (29.5 in.)
|
Height
|
400 mm (15.7 in.)
|
Wire
Diameter Range
|
0.1 – 0.33 mm (0.004 – 0.013 in.)
|
Max Cutting Speed
|
450 mm²/min (17.7 in²/min)
|
Best Roughness
|
0.2 µm Ra (7.9 µin Ra)
|
