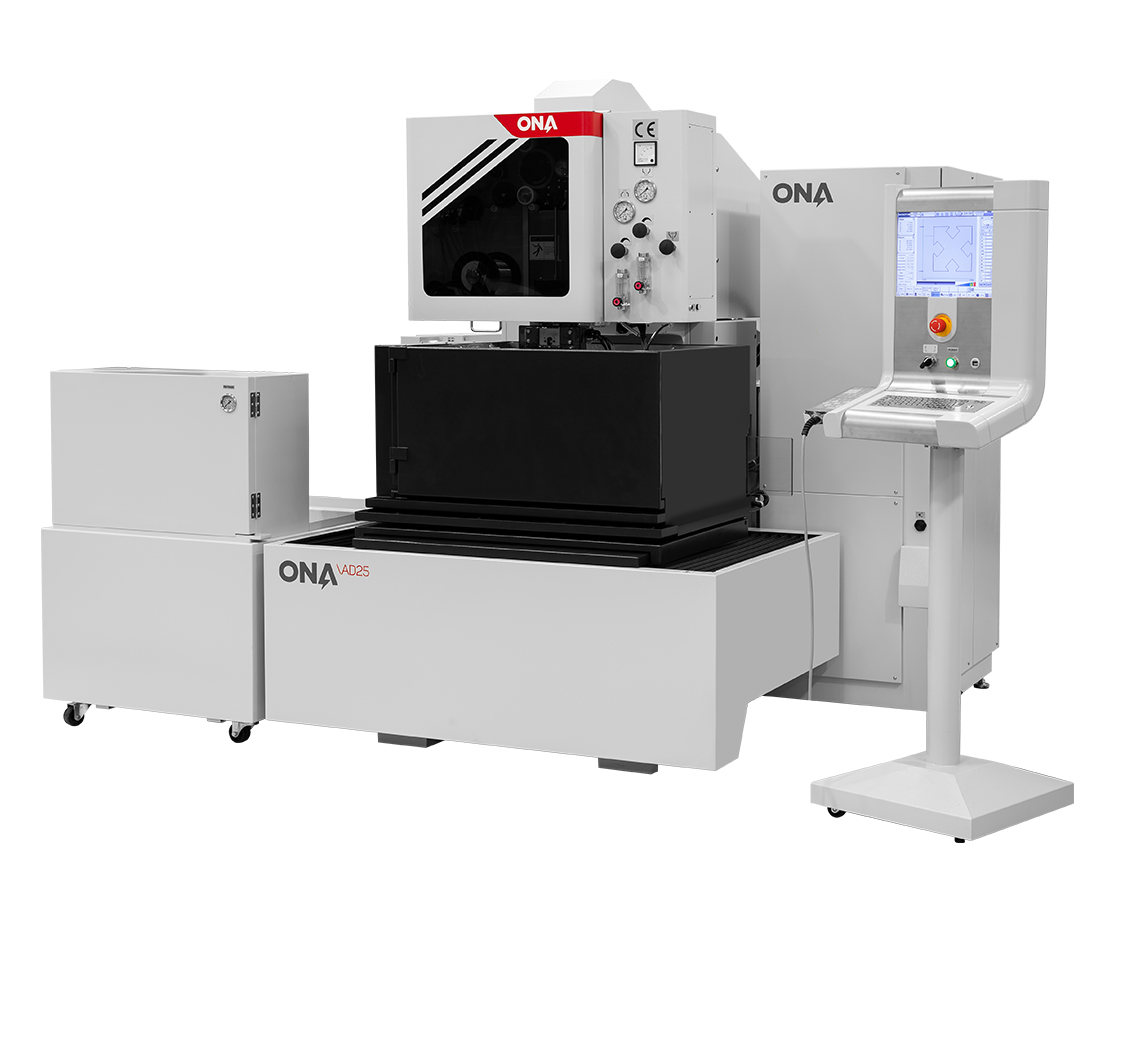

The ONA Compact AD and AF Series is built to deliver high-production performance and reliability. The AD/AF Series is equipped with repeatability features delivering consistent accuracy to ensure precision and quality on every workpiece. The AD Series features simultaneous controls on up to 5 axes, low maintenance cost, low power consumption, and has a built-in collision protection system.
You are here
AD35
Compact AD/AF Series
AD35
Travels
Travel Distance X-axis
|
600 mm (23.6 in.)
|
Travel Distance Y-axis
|
400 mm (15.7 in.)
|
Travel Distance Z-axis
|
290 mm (11.4 in.)
|
Travel Distance U-V Axis
|
100 x 100 mm (3.9 x 3.9 in.)
|
Max Axes Speed
|
800 mm/min (31.5 in/min)
|
Worktank
Length
|
990 mm (39 in.)
|
Width
|
620 mm (24.4 in.)
|
Height
|
290 mm (11.4 in.)
|
Wire
Diameter Range
|
0.2 – 0.3 mm (0.008 – 0.012 in.)
|
Max Taper
|
±21°/100 mm (3.9 in.)
|
Best Roughness
|
0.4 µm Ra (15.7 µin Ra)
|
Machine Size & Weight
Length
|
2,980 mm (117.3 in.)
|
Height
|
2,063 mm (81.2 in.)
|
Width
|
3,000 mm (118.1 in.)
|
Weight
|
3,700 kg (8,157.1 lbs.)
|
