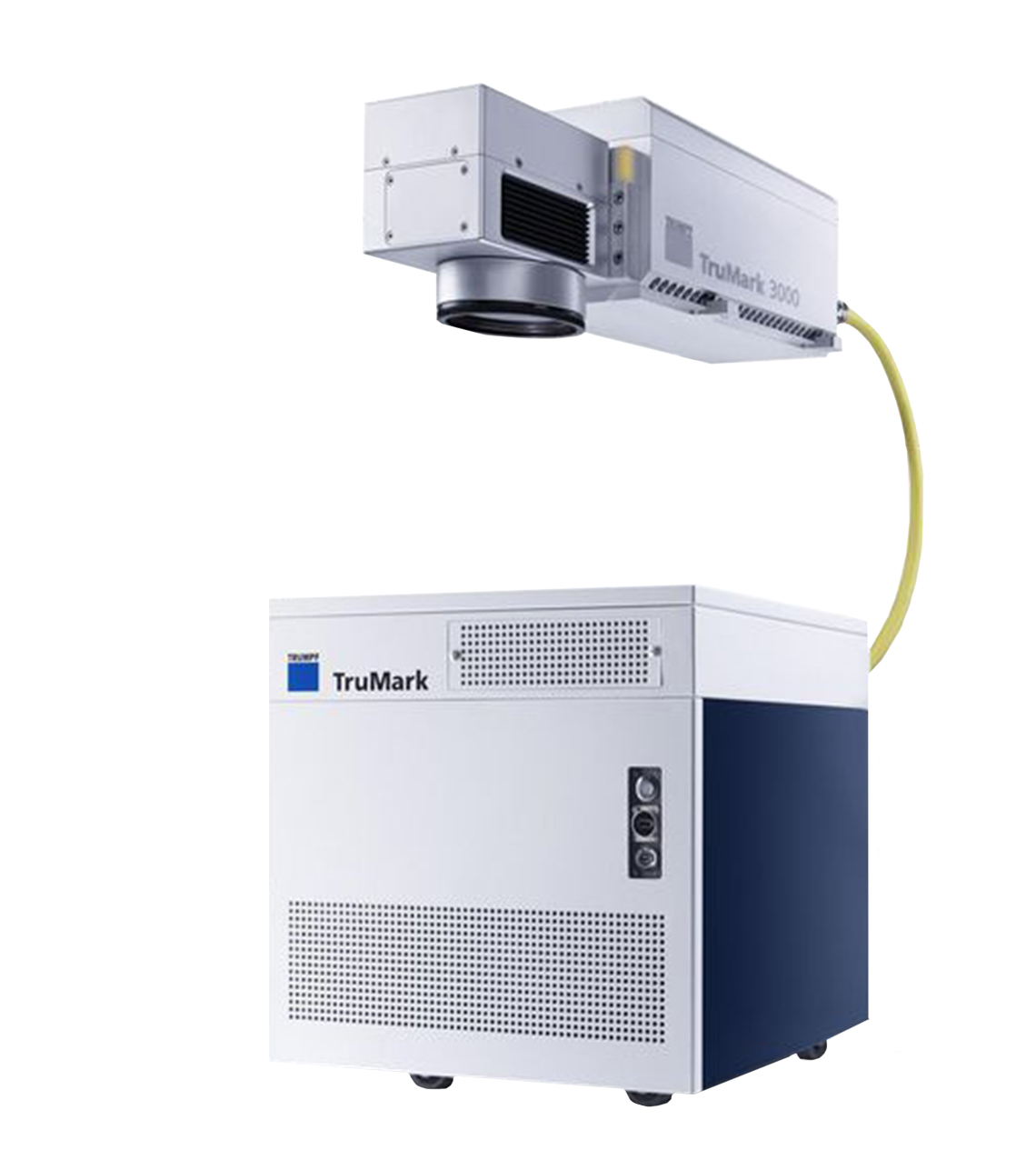

The TruMark Series 3000 marking laser from TRUMPF offers everything you need for versatile integration. The Series 3000 has options for all standard wavelengths including infrared, green, and ultraviolet lasers. With its modular design allowing peak pulse powers up to 100 kW, high pulse-to-pulse stability, software-controlled focal position adjustment, pilot laser, and mechanical beam trap, the Series 3000 is capable of covering a wide range of applications and materials.
You are here
TruMark 3020
TruMark Series 3000
TruMark 3020
Laser
Beam Quality
|
<1.5 M²
|
Wavelength
|
1,064 nm
|
Pulse Repetition Frequency
|
cw, 1 -100 kHz
|
Min. Focal Diameter
|
30 μm (1,181.1 μin.)
|
Max Internal Focal Position Control
|
±60 mm (2.4 in.)
|
Max Marking Field Size
|
290 x 290 mm (11.4 x 11.4 in.)
|
Laser Head Size
Width
|
138 mm (5.4 in.)
|
Height
|
138 mm (5.4 in.)
|
Depth
|
380 mm (15 in.)
|
Supply Unit Size
Width
|
445 mm (17.5 in.)
|
Height
|
465 mm (18.3 in.)
|
Depth
|
420 mm (16.5 in.)
|
Installation
Protection Type
|
IP54
|
Ambient Temperature
|
15-40°C (59-104°F)
|
