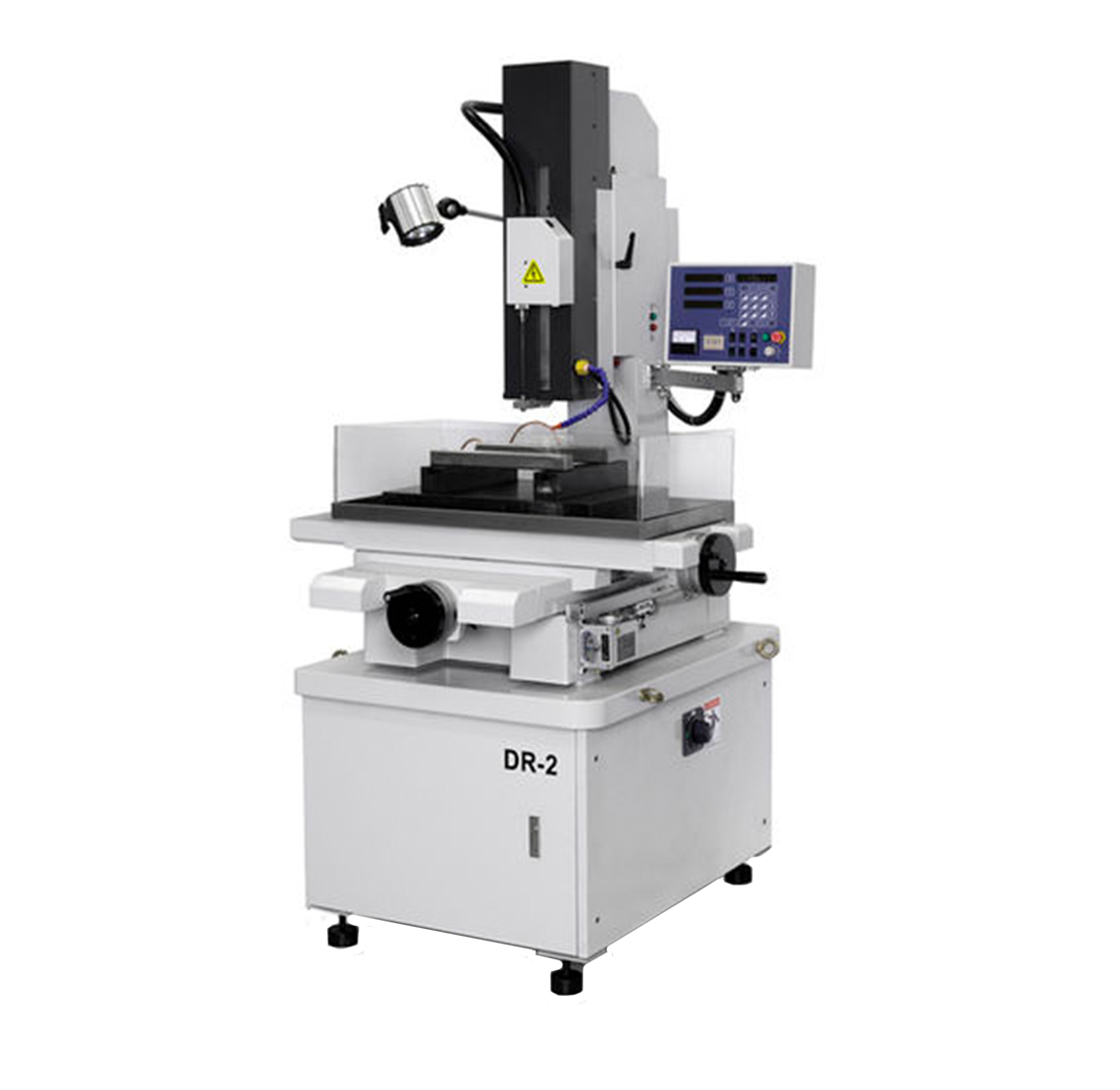

The ONA DR Series delivers fast and durable hole drilling capabilities. With a wide range of electrode diameters from 0.2 to 3 mm, the DR Series can drill into hardened and self-hardened steel, stainless steel, carbides, copper, and aluminum. The DR Series electrode guides offer higher precision, repeatability, and increased productivity. Additionally, the DR Series offers an extended 300 mm Z-axis.
You are here
DR4
Hole Drilling DR Series
DR4
Travels
Travel Distance X-axis
|
500 mm (19.7 in.)
|
Travel Distance Y-axis
|
400 mm (15.7 in.)
|
Travel Distance Z-axis
|
380 + 300 mm (14.9 + 11.8 in.)
|
Table
Table Size
|
700 x 400 mm (27.5 x 15.7 in.)
|
Max Load
|
500 kg (1,102 lbs.)
|
Water Tank Capacity
|
25 L
|
Electrode
Diameter Range
|
0.2 – 3 mm (0.008 – 0.12 in.)
|
Generator Intensity
|
30 A
|
Voltage Levels
|
9
|
Machine Size
Length
|
1,200 mm (47.2 in.)
|
Height
|
900 mm (35.4 in.)
|
Width
|
2,100 mm (82.7 in.)
|
