If you want to compete, you have to get the turning center that beats the competitors. The single ram-type spindle PUMA VTS and VTR turning series have the highest cutting capacity among its competitors. Whether you have to handle a 40” chuck up to a 63” chuck, the PUMA VTS and VTR series provides optimum durability by including box guideways on all axes. Additionally, the expansive diameter of the cross-taper roller bearings in the spindle ensures high rigidity and accuracy for heavy duty machining applications.
You are here

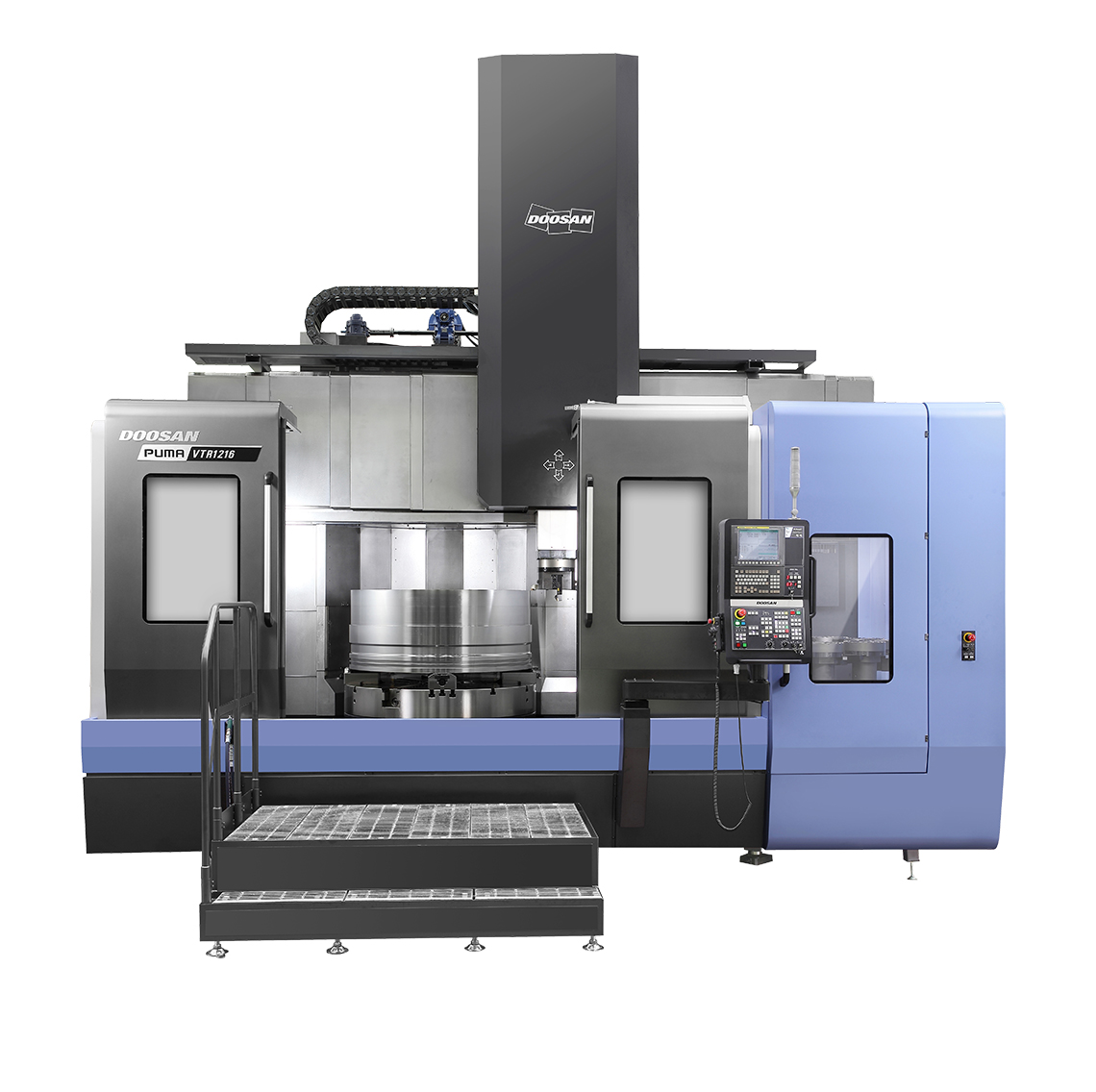

PUMA VTR1216
PUMA VTS/VTR Series
PUMA VTR1216
Travels
Travel Distance X-axis
|
1700 mm (66.9 in)
|
Travel Distance Z-axis (RAM)
|
1200 mm (47.2 in)
|
Rapid Traverse X-axis
|
12 m/min (472 in/min)
|
Rapid Traverse Z-axis
|
10 m/min (394 in/min)
|
Capacity
RAM Size
|
260 x 260 mm (10.2 x 10.2 in)
|
Max Turning Diameter
|
⌀1600 mm (63 in)
|
Max Turning Length
|
1250 mm (49.2 in)
|
Max Table Load
|
8000 kg (17637 lbs)
|
Spindle to Table Distance
|
1105 mm (43.5 in)
|
Spindle
Speed
|
400 rpm
|
Power
|
45 kW (60 Hp)
|
Torque
|
31977 Nm (23585 ft-lbs)
|
Tooling
Shank
|
BMT-KEY
|
Changer Capacity
|
12
|
Max Tool Length
|
500 mm (19.7 in)
|
Machine Size & Weight
Length
|
5,265 mm (207 in.)
|
Height
|
5,583 mm (220 in.)
|
Width
|
3,824 mm (150.5 in.)
|
Weight
|
29,501 (65,040 lbs.)
|
