The HM Series is comprised of heavy duty horizontal machining centers that combine a high torque spindle drive and powerful axis drives for a large chip removal rate. The machines are suitable for a wide range of applications, possible in part due to the 3 speed geared spindle head, which combines high speed and high torque.
You are here

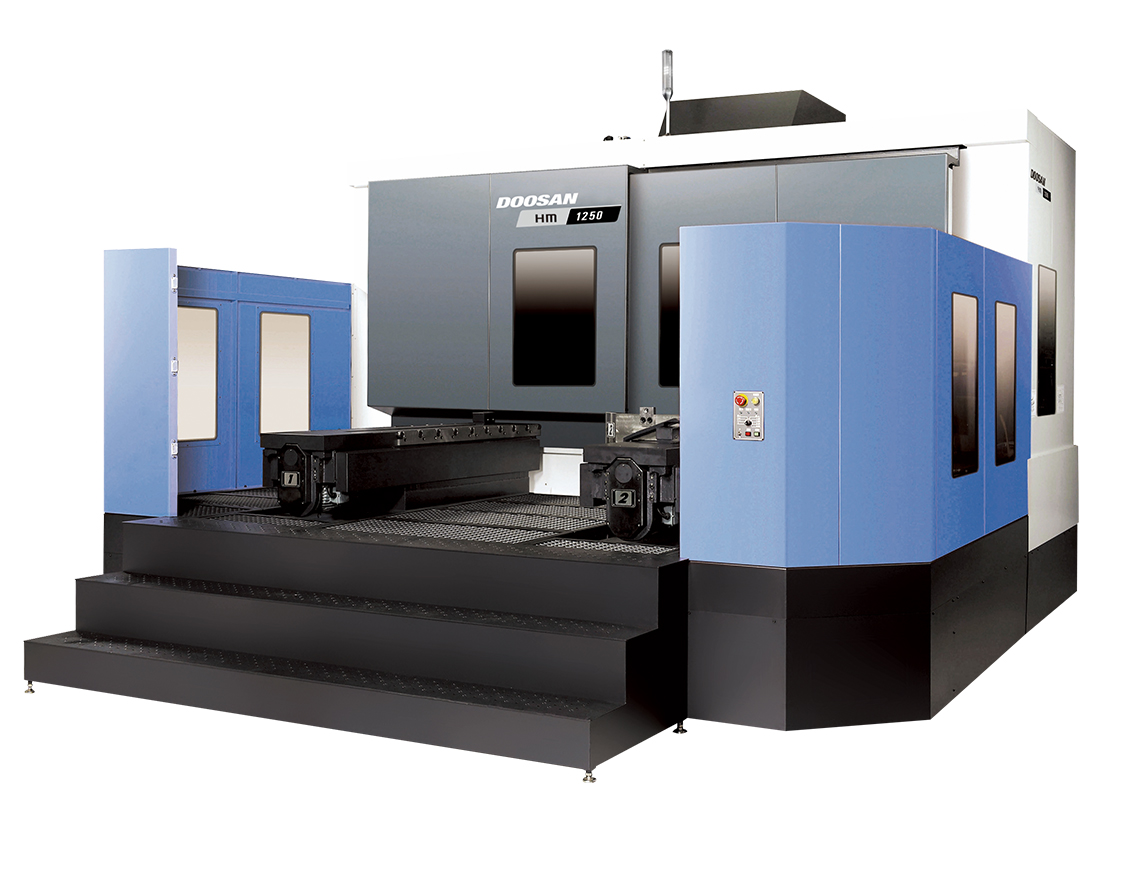

HM 1250
HM Series
HM 1250
Travels
Travel Distance X-axis
|
2100 mm (82.8 in)
|
Travel Distance Y-axis
|
1500 mm (59 in)
|
Travel Distance Z-axis
|
1500 mm (59 in)
|
Rapid Traverse X-axis
|
24 m/min (945 in/min)
|
Rapid Traverse Y-axis
|
24 m/min (945 in/min)
|
Rapid Traverse Z-axis
|
24 m/min (945 in/min)
|
Table
Table Size
|
1250 x 1250 mm (49.2 x 49.2 in)
|
Max Part Size
|
⌀2000 x 1725 mm (78.7 x 67.9 in)
|
Max Load
|
5000 kg (11023 lbs)
|
Spindle
Speed
|
6000 rpm
|
Power
|
45 kW (60 hp)
|
Torque
|
3439 Nm (2536 ft-lbs)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
120 (Opt. 90)
|
Change Time
|
8.5 Seconds
|
Max Diameter
|
⌀130/300 mm (5.1/11.8 in)
|
Max Length
|
650 mm (25.6 in)
|
Machine Size & Weight
Length
|
10,530 mm (414.6 in.)
|
Height
|
4,060 mm (160 in.)
|
Width
|
5,822 mm (229.3 in.)
|
Weight
|
31,500 kg (69,445 lbs.)
|
