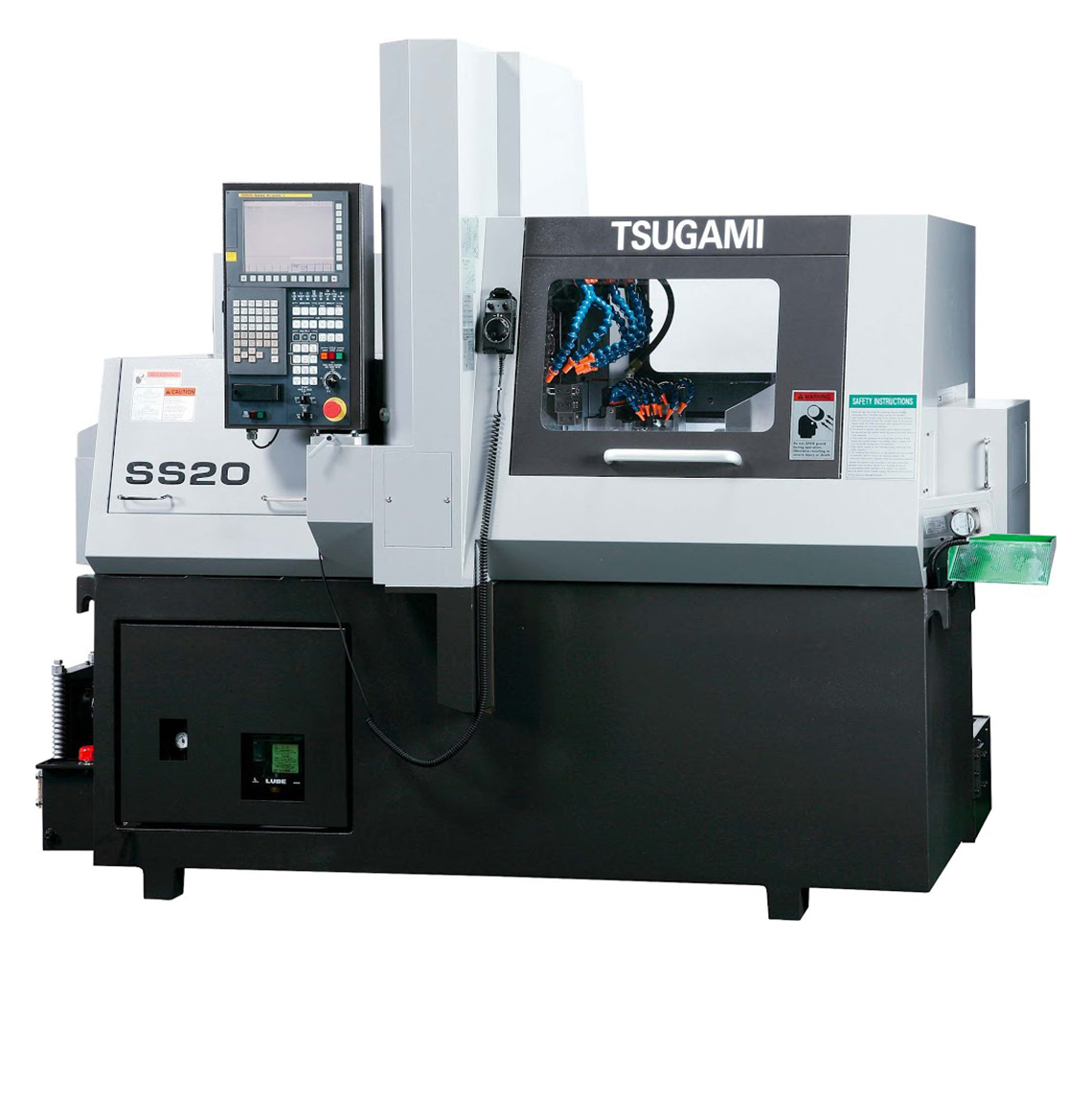

SS20

Opposed Gang Tool

Tsugami's line of Opposed Gang Tool lathes offer the widest selection of machining capacities and configurations. From basic Swiss turn lathes to advanced turning centers, the Opposed Gang Tool line is capable of milling, drilling, tapping, and threading. Minimize secondary setup times while achieving superior precision.

SS20

Travels
Max Headstock Stroke
45/220 mm (1.8/8.7 in)
Number of Axes
6
Capacity
Max Bar Diameter
Ø20 mm (0.8 in)
Sliding Headstock/Guide Bushing
Yes
Convertible: Run w/o Guide Bushing
Yes
Spindle
Speed (Main)
200-10000 rpm
Speed (Sub)
200-10000 rpm
Power
2.2/3.7 kW (2.9/5 Hp)
Tooling
Tool Capacity
24/40
Live Tool Capacity
13-Oct
Live Tool Speed
5000 rpm
Machine Size
Length
1675 mm (65.9 in)
Height
2020 mm (79.5 in)
Width
2020 mm (79.5 in)
