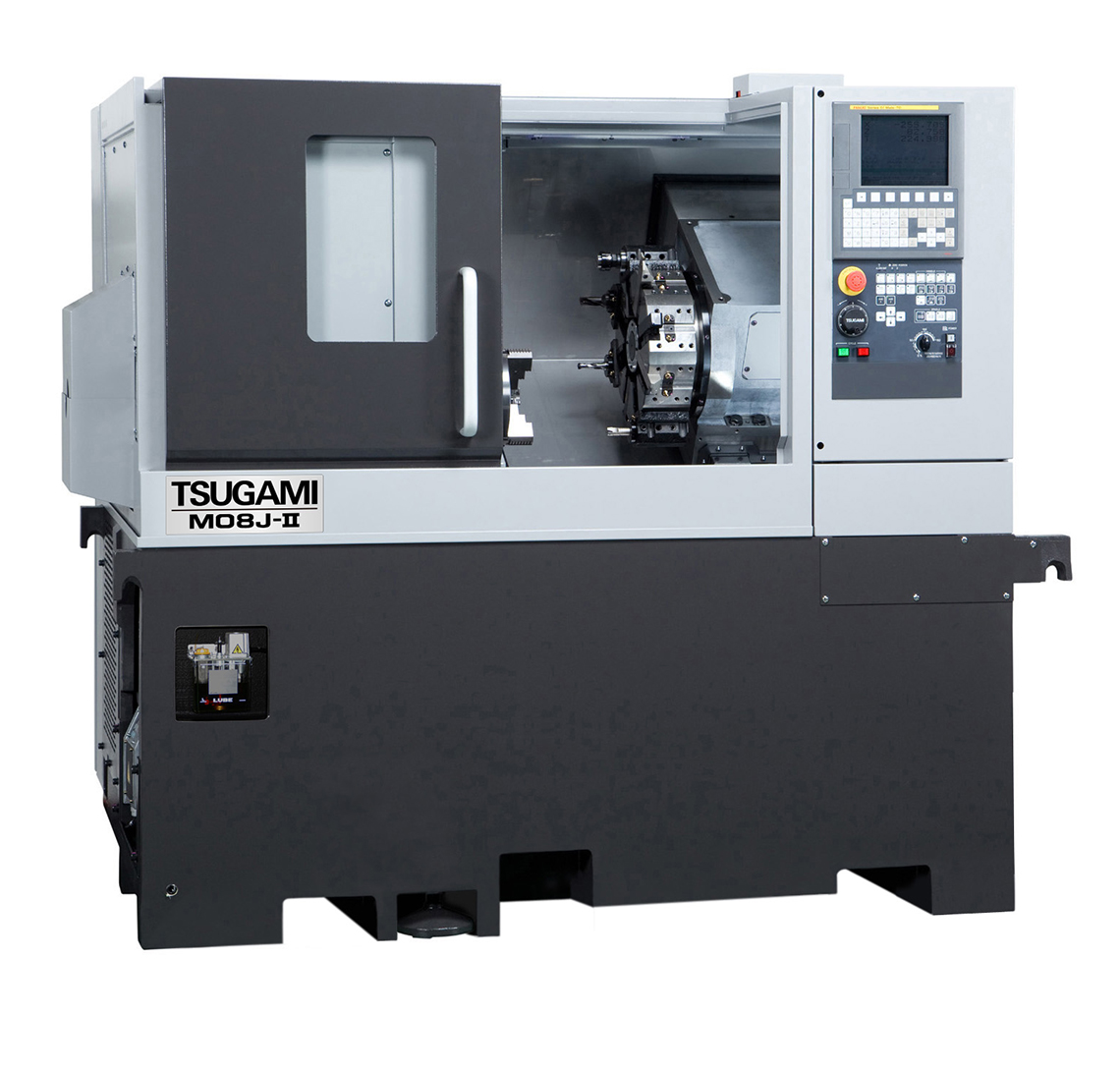

M08J-II

Fixed Headstock Series

The Fixed Headstock line from Tsugami provides optimal spindle stability for precise cuts while allowing for turning, drilling, boring, and thread cutting operations. The spindle features thermal stability, enhanced rigidity, and excels at heavy-duty machining.

M08J-II

Travels
Travel Distance X-axis
160 mm (6.3 in)
Travel Distance Z-axis
330 mm (13 in)
Rapid Traverse X-axis
24 m/min (945 in/min)
Rapid Traverse Z-axis
27 m/min (1062 in/min)
Capacity
Max Machining Diameter
⌀65/280 mm (2.6/11 in)
Max Machining Length
290 mm (11.4 in)
Spindle
Chuck
8 in
Speed
4000 rpm
Power
9/11 kW (12.1/14.7 Hp)
Tooling
Turret Stations
8
Max Tool Diameter
⌀25/40 mm (1/1.6 in)
Machine Size
Length
1673 mm (65.9 in)
Height
1600 mm (63 in)
Width
1690 mm (66.5 in)
