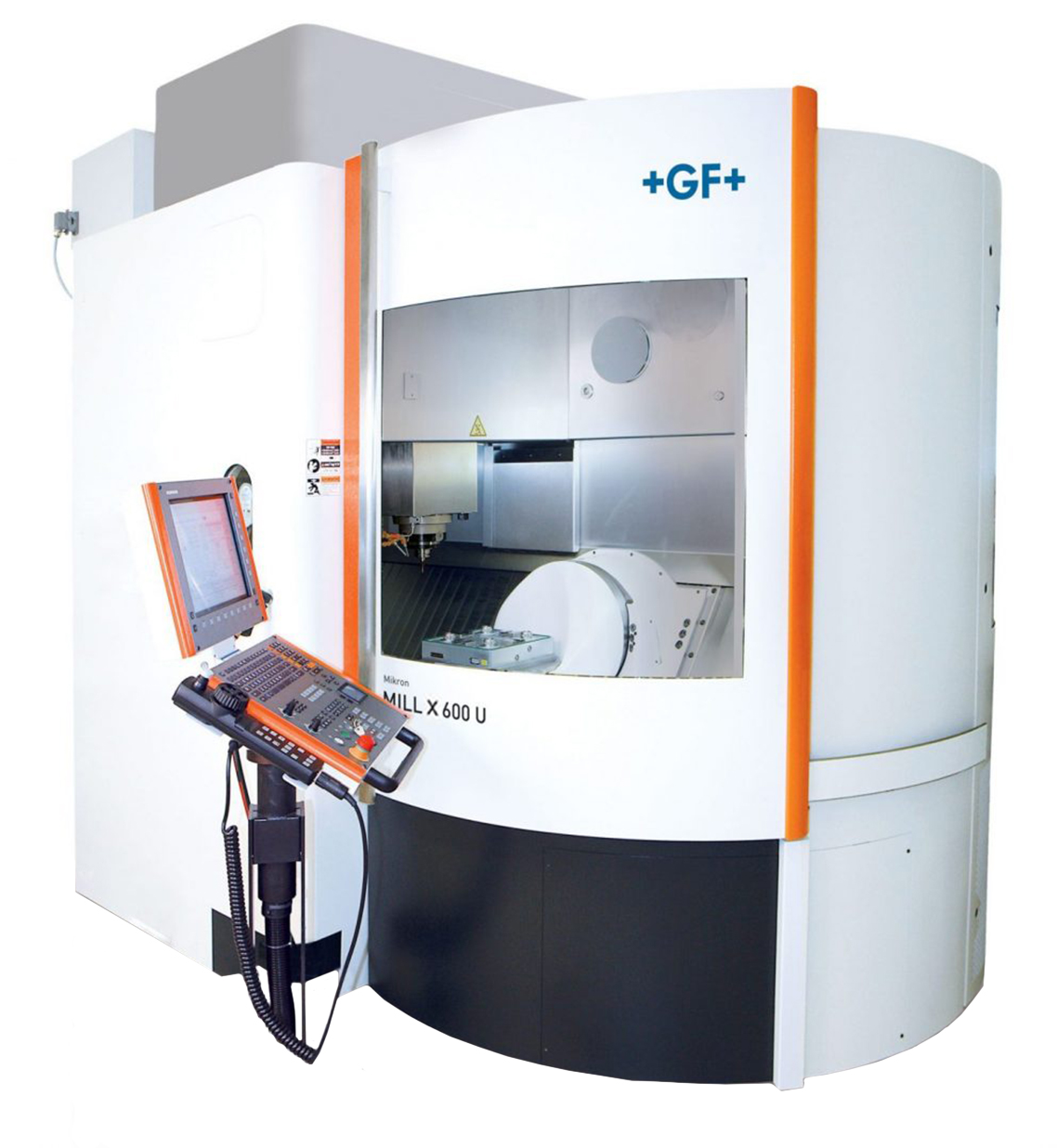

Mikron MILL X 600 U

Ultra-High Speed Machine: Mikron MILL X Series

The Mikron MILL X Series takes the features of the MILL S Series and takes it to the next level with enhanced spindle speeds of up to 42,000 rpms and travel rates of up to 100 m/min. Take the MILL X Series rapid performance even further with options for varying pallet sizes and pallet pool system for more productivity.

Mikron MILL X 600 U

Travels
Travel Distance X-axis
800 mm (31.5 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
500 mm (19.7 in)
Travel Distance B-axis
+30°/-110°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
100 m/min (3937 in/min)
Rapid Traverse Y-axis
100 m/min (3937 in/min)
Rapid Traverse Z-axis
100 m/min (3937 in/min)
Rapid Traverse B-axis
60 rpm
Rapid Traverse C-axis
150 rpm
Table
Table Size
Varies by Pallet
Max Load
120 kg (264.6 lbs)
Number of Pallets (Option)
7/10
Spindle
Speed
24000/30000/36000/42000 rpm
Power
13.5/28/33 kW (18.1/37.5/44.2 Hp)
Torque
8.8/21/28 Nm (6.5/15.5/20.6 ft-lbs)
Tooling
Shank
HSK-A63/HSK-E40/HSK-E50
Changer Capacity
15/18/30/36/48/60/68/120/168/170/220/308
Machine Size
Length
2571 mm (101.2 in)
Height
3522 mm (138.7 in)
Width
2390 mm (94.1 in)
