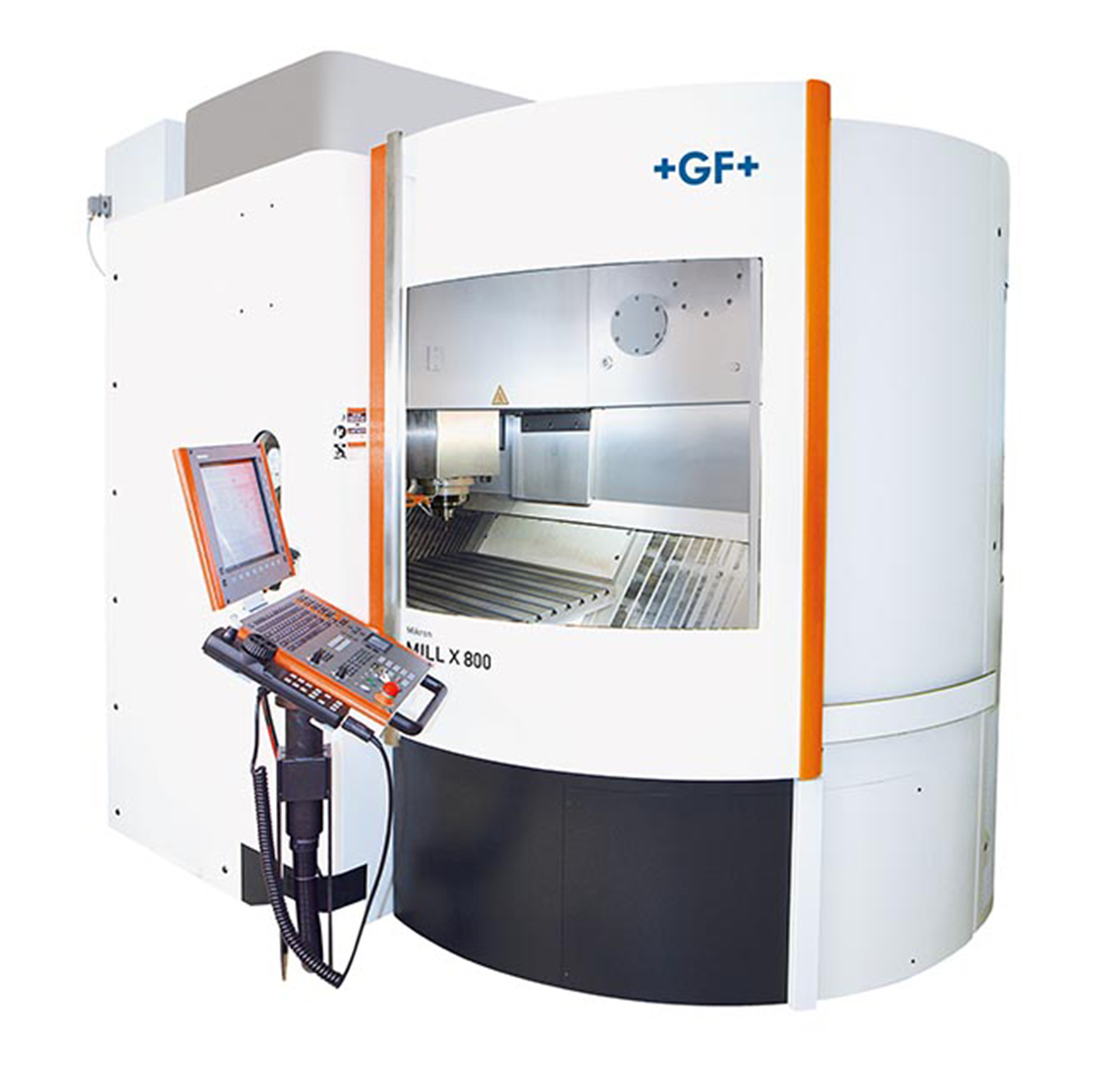

Mikron MILL X 800

Ultra-High Speed Machine: Mikron MILL X Series

The MILL X Series is GF Machining Solutions fastest line of machining centers featuring 3-axis capabilities with up to 42,000 rpm spindle speeds, 100 m/min traverse speed, and is designed to handle repeated mass production. The MILL X also has options for automated pallet pools, massive tool changer capacities, and several options for different pallet sizes.

Mikron MILL X 800

Travels
Travel Distance X-axis
800 mm (31.5 in.)
Travel Distance Y-axis
600 mm (23.6 in.)
Travel Distance Z-axis
500 mm (19.7 in.)
Rapid Traverse X-axis
100 m/min. (3,937 in./min.)
Rapid Traverse Y-axis
100 m/min. (3,937 in./min.)
Rapid Traverse Z-axis
100 m/min. (3,937 in./min.)
Table
Table Size
900 x 600 mm (35.4 x 23.6 in.)
Max Load
1,000 kg (2,204.6 lbs.)
Pallet Size (Option)
600/800 x 600 mm (23.6/31.5 x 23.6 in.)
Number of Pallets (Option)
4
Spindle
Speed
24,000/30,000/36,000/42,000 rpm
Power
13.5/28/33 kW (18.1/37.5/44.2 Hp)
Torque
8.8/21/28 Nm (6.5/15.5/24.3 ft-lbs.)
Tooling
Shank
HSK-E40/HSK-E50/HSK-A63
Changer Capacity
15/18/30/36/48/60/68/120/168/170/220/308
Machine Size
Length
2,571 mm (101.2 in.)
Height
3,522 mm (138.7 in.)
Width
2,390 mm (94.1 in.)
