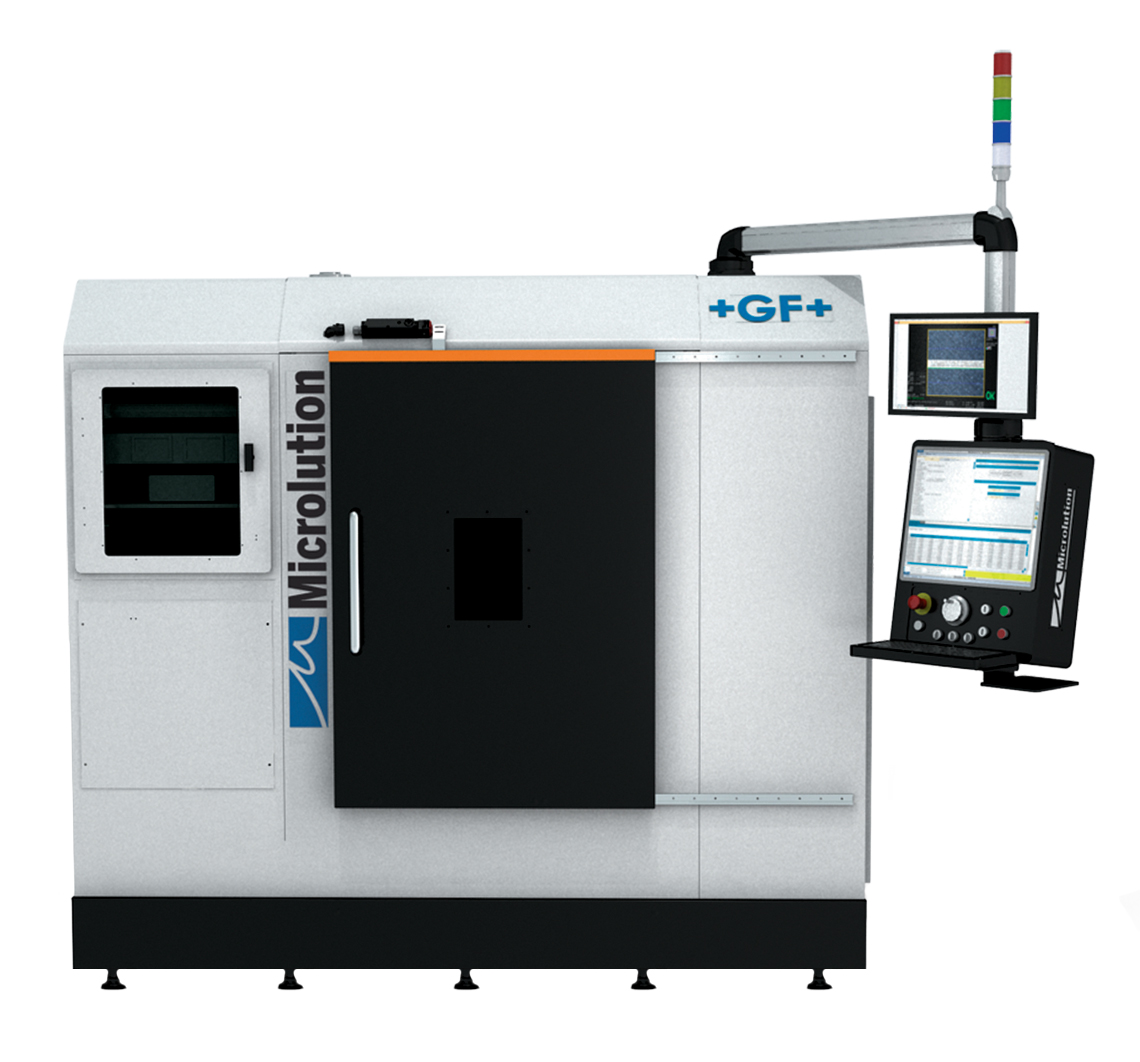

Microlution ML-5

Microlution ML Series

The ultrafast Microlution ML Series laser micromachining solution combines exceptional motion control, part handling, and real-time positioning feedback quickly producing high accuracy micro holes and features. Femtosecond Laser offers the ability to machine a wide range of materials without tool wear, and no-heat affected zones allowing ultrahigh surface and edge quality. This Laser can create unique shapes such as negative taper holes, transforming holes (circular entrance and elliptical exit), star patterns, shapes that are impossible to do on a mechanical machine and many more.

Microlution ML-5

Travels
Travel Distance X-axis
280 mm (11 in)
Travel Distance Y-axis
350 mm (13.8 in)
Travel Distance Z-axis
300 mm (11.8 in)
Travel Distance A-axis (Option)
+95°/-45°
Travel Distance C-axis (Option)
360°
Laser
Power
10/20/50 W
Machine Size
Length
1050 mm (41.3 in)
Height
2260 mm (89 in)
Width
2310 mm (90.9 in)
