AgieCharmilles DRILL 20

Hole Drilling EDM: AgieCharmilles DRILL Series

The AgieCharmilles DRILL Series is designed for 3-axis starter hole drilling with brass, copper, and carbide electrodes. The DRILL Series is optimized for faster set up cycles utilizing edge, center, and corner finding technology, and easy programming and erosion set up for multiple holes with different diameters.

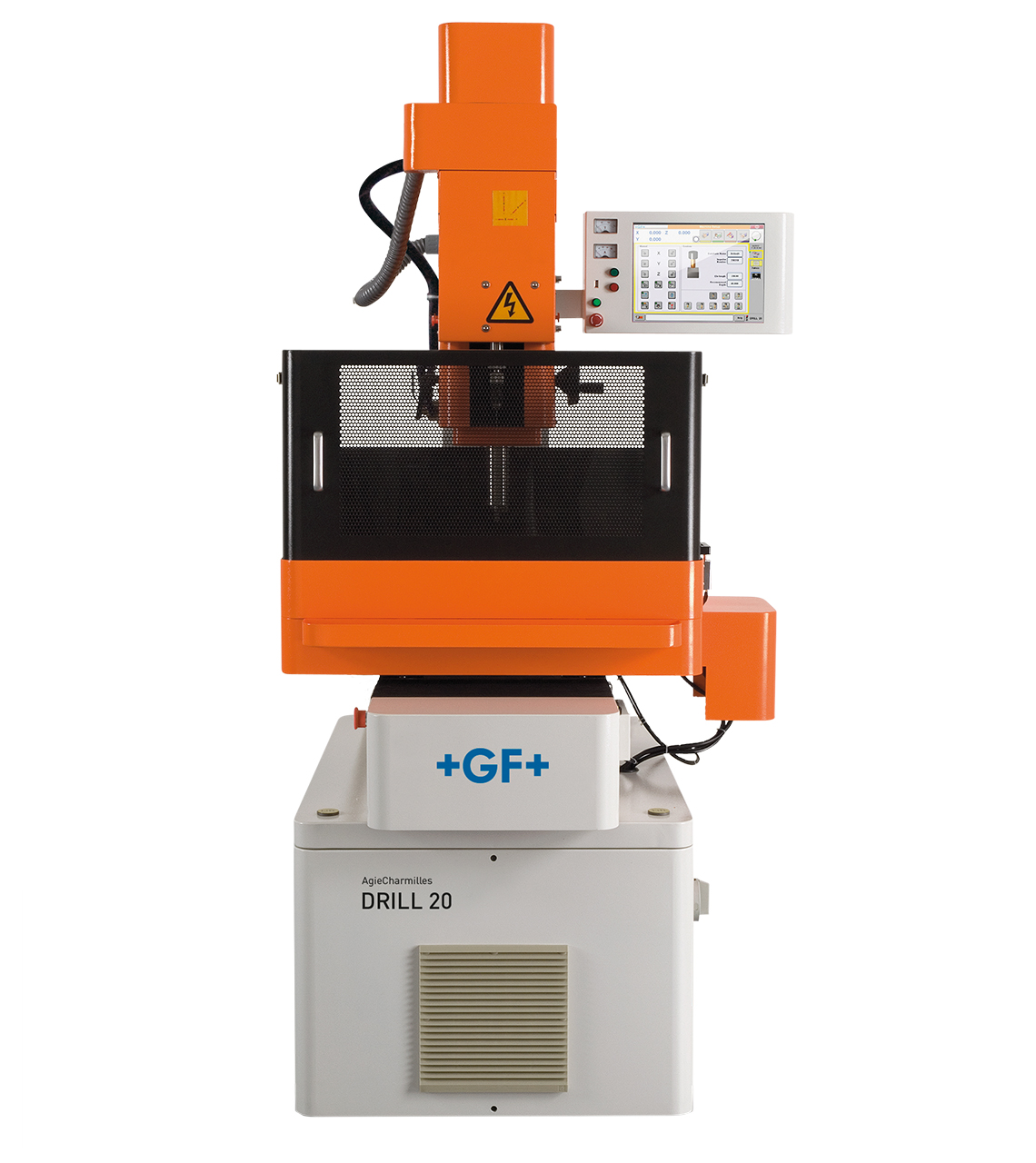

AgieCharmilles DRILL 20

Travels
Travel Distance X-axis
300 mm (11.8 in)
Travel Distance Y-axis
200 mm (7.9 in)
Travel Distance Z-axis
300 mm (11.8 in)
Table
Table Size
400 x 300 mm (15.7 x 11.8 in)
Max Part Weight
300 kg (661 lbs)
Electrode
Diameter
0.3-3 mm (0.012-0.12 in)
Generator
30 A
Max Drilling Depth
200 mm (7.8 in)
Machine Size
Length
910 mm (35.8 in)
Height
1940 mm (76.4 in)
Width
1340 mm (52.7 in)
