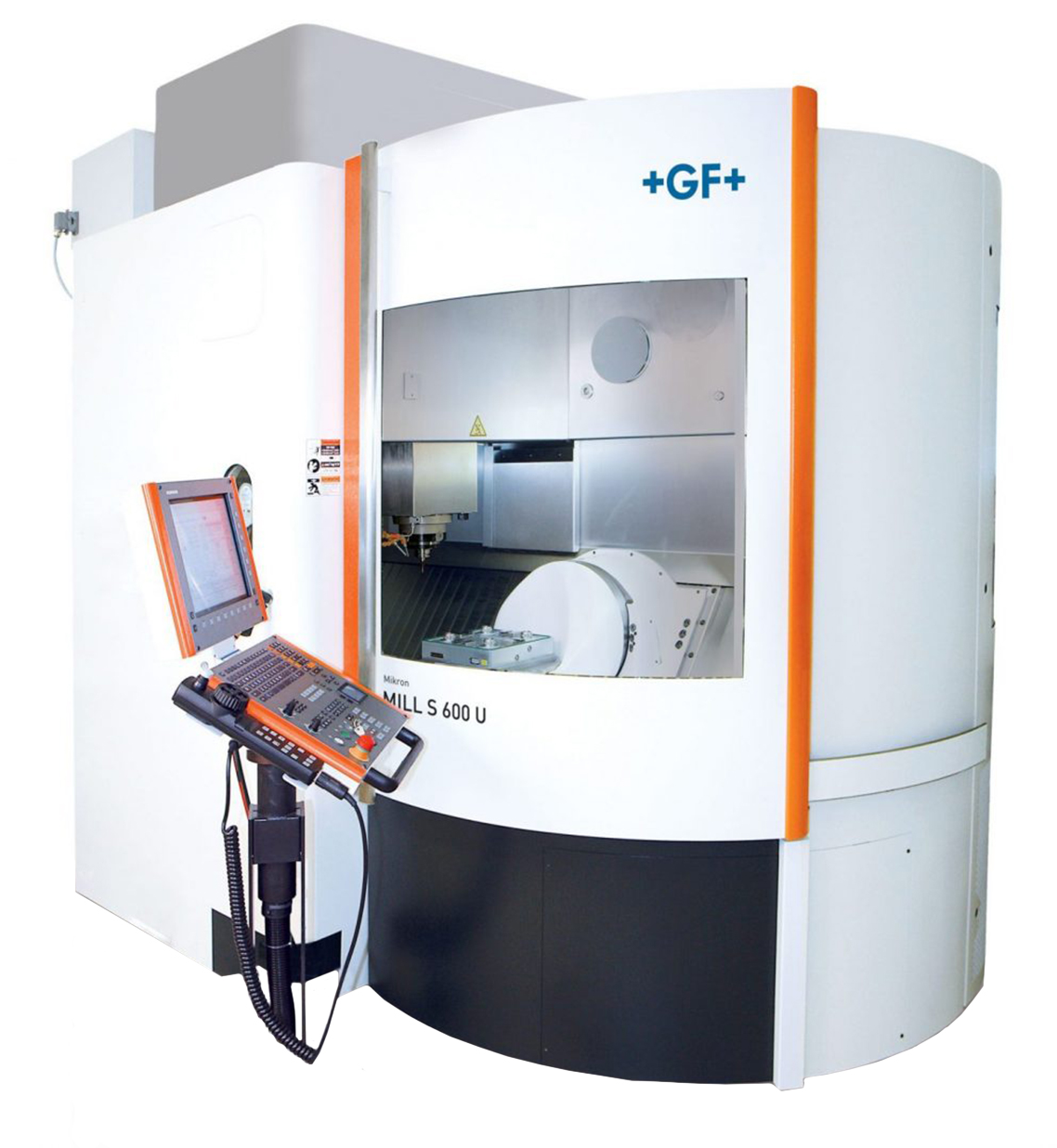

Mikron MILL S 600 U

High Speed Machine: Mikron HSM/MILL S Series

The Mikron HSM/MILL S Series machines are built with high-speed spindles, high feed rates, rapid acceleration, and 5-axis machining capabilities designed for manufacturing a wide range of complex die and mold parts. The HSM/MILL S Series is capable of reaching speeds 10 times faster than conventional milling machines and features model options specifically designed for Graphite and Precision machining.

Mikron MILL S 600 U

Travels
Travel Distance X-axis
800 mm (31.5 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
500 mm (19.7 in)
Travel Distance B-axis
+30°/-110°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
61 m/min (2401.6 in/min)
Rapid Traverse Y-axis
61 m/min (2401.6 in/min)
Rapid Traverse Z-axis
61 m/min (2401.6 in/min)
Rapid Traverse B-axis
60 rpm
Rapid Traverse C-axis
150 rpm
Table
Table Size
Varies by Pallet
Max Load
120 kg (264.6 lbs)
Number of Pallets (Option)
7/10
Spindle
Speed
30000/36000/42000 rpm
Power
13.5/33 kW (18.1/44.2 Hp)
Torque
8.8/21 Nm (6.5/15.5 ft-lbs)
Tooling
Shank
HSK-E40/HSK-E50
Changer Capacity
15/18/30/36/60/68/120/168/170/220/308
Machine Size
Length
2571 mm (101.2 in)
Height
3522 mm (138.7 in)
Width
2390 mm (94.1 in)
