Mikron MILL S 500

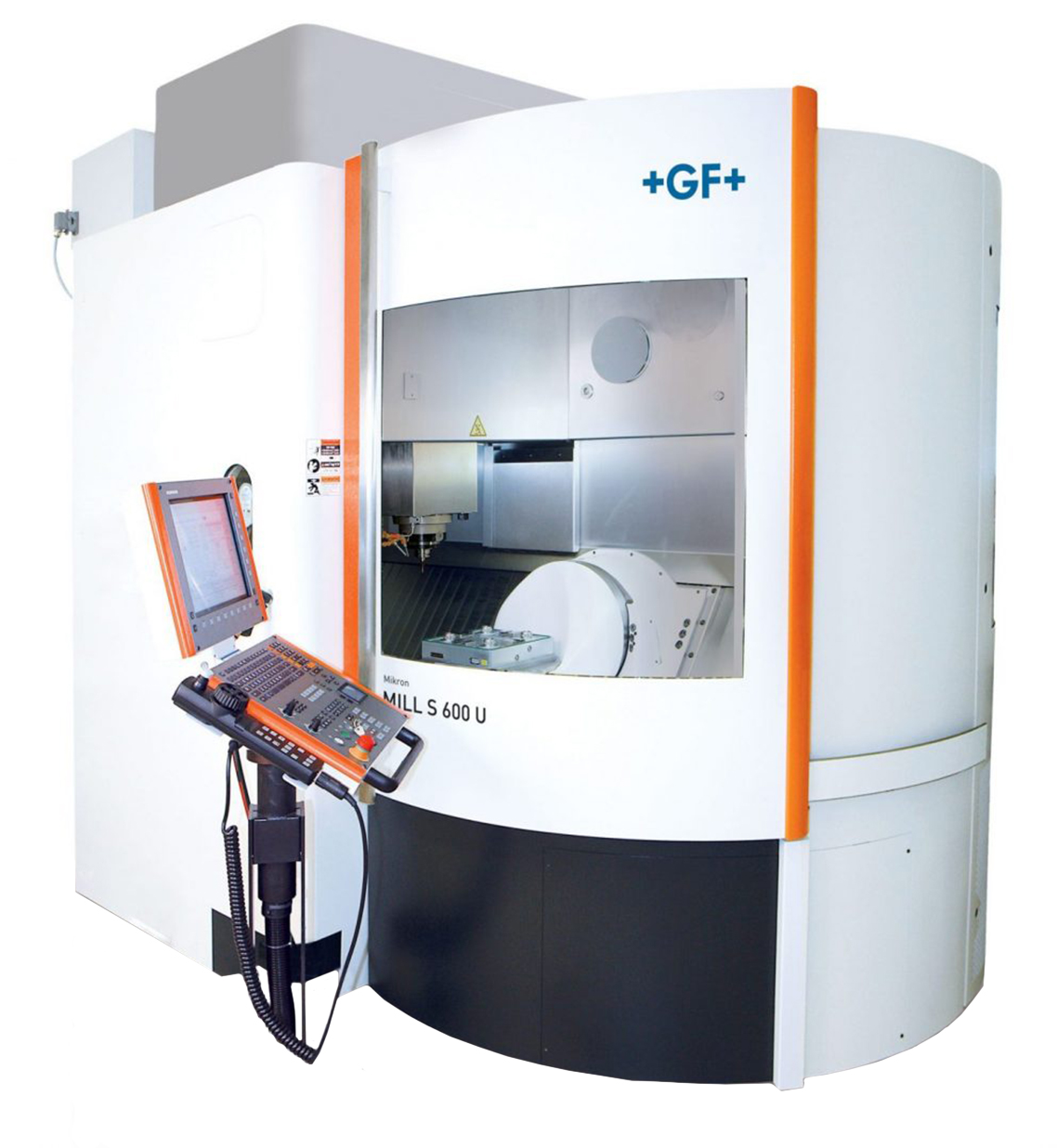

High Speed Machine: Mikron HSM/MILL S Series

GF Machining Solutions’ high speed machining centers are built with high-speed spindles ranging from 30,000 to 60,000 RPM’s, high feed rates reaching up to 61 m/min, and best-in-class acceleration for machining complex three dimensional surfaces across a wide range of applications. The MILL S Series also features specialized models for Moldmaster, Graphite, and Precision.

Mikron MILL S 500

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
450 mm (17.7 in)
Travel Distance Z-axis
360 mm (14.2 in)
Rapid Traverse X-axis
61 m/min (2401.6 in/min)
Rapid Traverse Y-axis
61 m/min (2401.6 in/min)
Rapid Traverse Z-axis
61 m/min (2401.6 in/min)
Table
Table Size
590 x 450 mm (23.2 x 17.7 in)
Max Load
200 kg (440.9 lbs)
Spindle
Speed
30000/42000/60000 rpm
Power
8.5/13.5 kW (11.4/18.1 Hp)
Torque
3.5/8.8 Nm (2.6/6.5 ft-lbs)
Tooling
Shank
HSK-E32/HSK-E40
Changer Capacity
18/20/36/40/68/168/308
Machine Size
Length
1811 mm (71.3 in)
Height
2850 mm (112.2 in)
Width
2373 mm (93.4 in)
