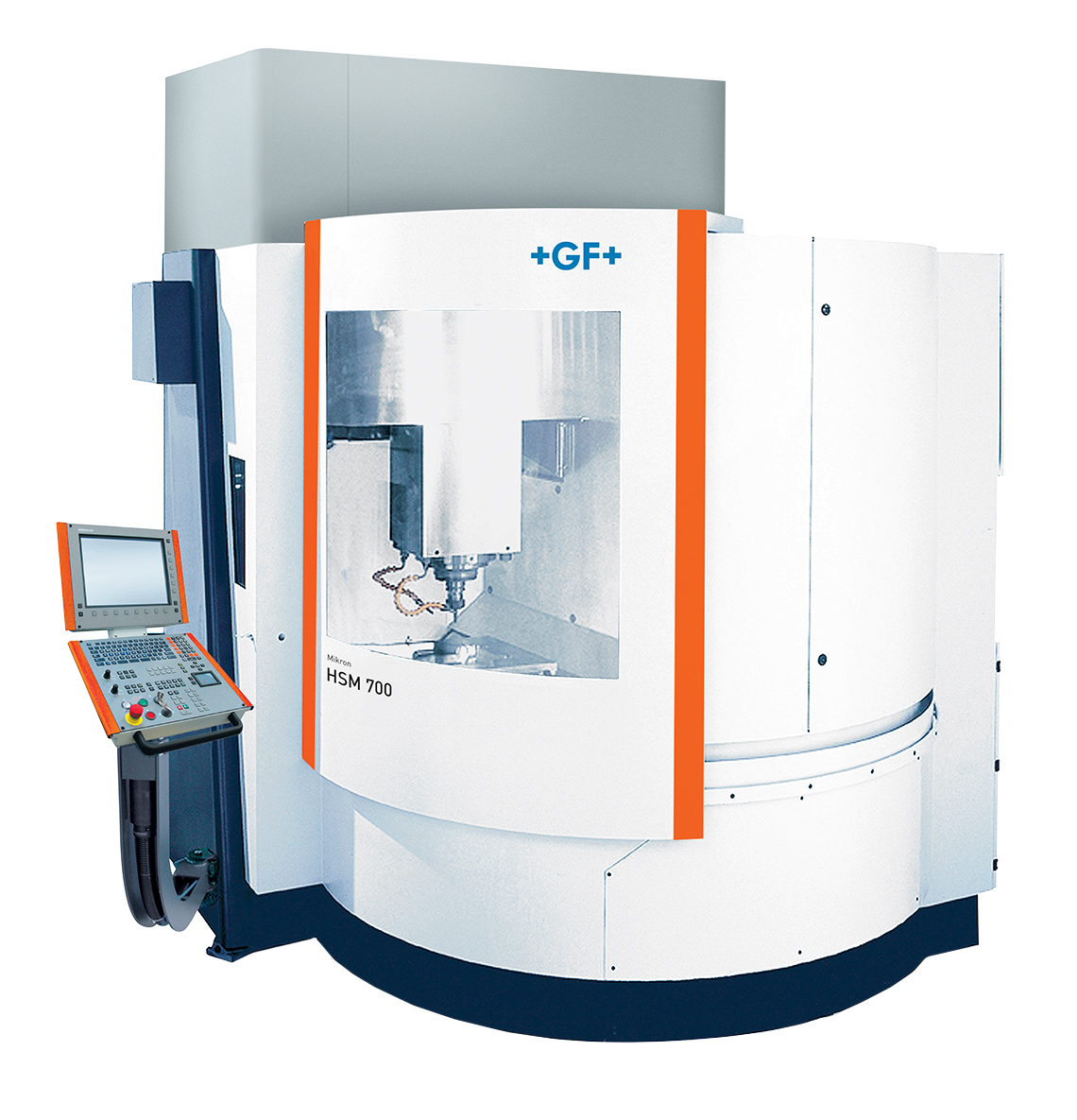

Mikron HSM 700

High Speed Machine: Mikron HSM/MILL S Series

GF Machining Solutions’ high speed machining centers are built with high-speed spindles ranging from 30,000 to 60,000 RPM’s, high feed rates reaching up to 61 m/min, and best-in-class acceleration for machining complex three dimensional surfaces across a wide range of applications. The MILL S Series also features specialized models for Moldmaster, Graphite, and Precision.

Mikron HSM 700

Travels
Travel Distance X-axis
700 mm (27.5 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
500 mm (19.7 in)
Rapid Traverse X-axis
40 m/min (1575 in/min)
Rapid Traverse Y-axis
40 m/min (1575 in/min)
Rapid Traverse Z-axis
40 m/min (1575 in/min)
Table
Table Size
900 x 600 mm (35.4 x 23.6 in)
Max Load
800 kg (1763.7 lbs)
Spindle
Speed
42000 rpm
Power
13.5 kW (18.1 Hp)
Torque
4.2 Nm (3.1 ft-lbs)
Tooling
Shank
HSK-E40
Changer Capacity
15/30
Machine Size
Length
2571 mm (101.2 in)
Height
3522 mm (138.7 in)
Width
3299 mm (129.9 in)
