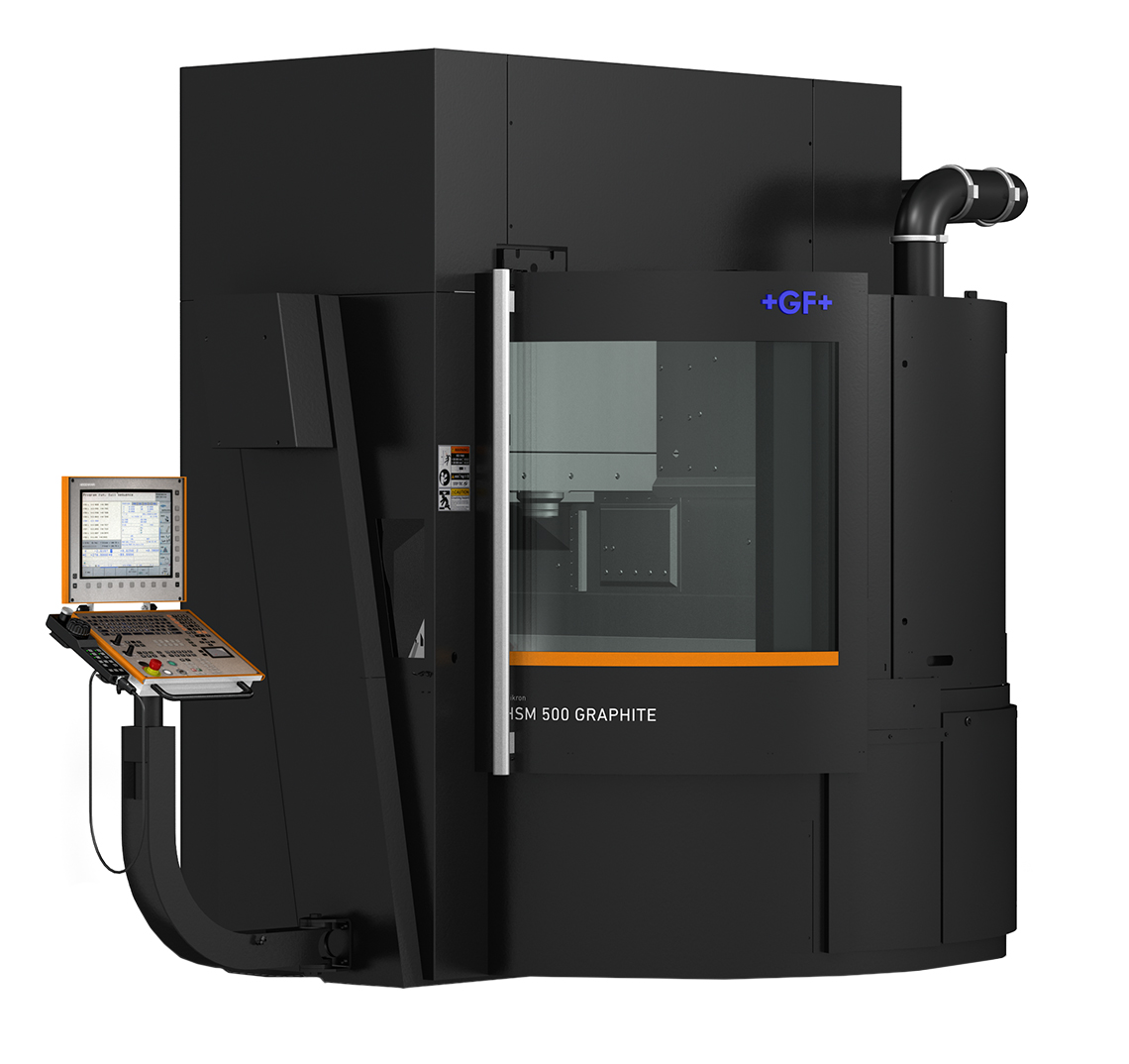

Mikron HSM 500 GRAPHITE

High Speed Machine: Mikron HSM/MILL S Series

GF Machining Solutions’ high speed machining centers are built with high-speed spindles ranging from 30,000 to 60,000 RPM’s, high feed rates reaching up to 61 m/min, and best-in-class acceleration for machining complex three dimensional surfaces across a wide range of applications. The MILL S Series also features specialized models for Moldmaster, Graphite, and Precision.

Mikron HSM 500 GRAPHITE

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
450 mm (17.7 in)
Travel Distance Z-axis
350 mm (14.2 in)
Rapid Traverse X-axis
20/42 m/min (787.4/1653.5 in/min)
Rapid Traverse Y-axis
20/42 m/min (787.4/1653.5 in/min)
Rapid Traverse Z-axis
20/42 m/min (787.4/1653.5 in/min)
Table
Table Size
550 x 450 mm (21.6 x 17.7 in)
Max Load
200 kg (440.9 lbs)
Spindle
Speed
42000 rpm
Power
13 kW (17.4 Hp)
Torque
4.2 Nm (3.1 ft-lbs)
Tooling
Shank
HSK-E40
Changer Capacity
36
Machine Size
Length
2571 mm (101.2 in)
Height
2850 mm (112.2 in)
Width
2373 mm (93.4 in)
