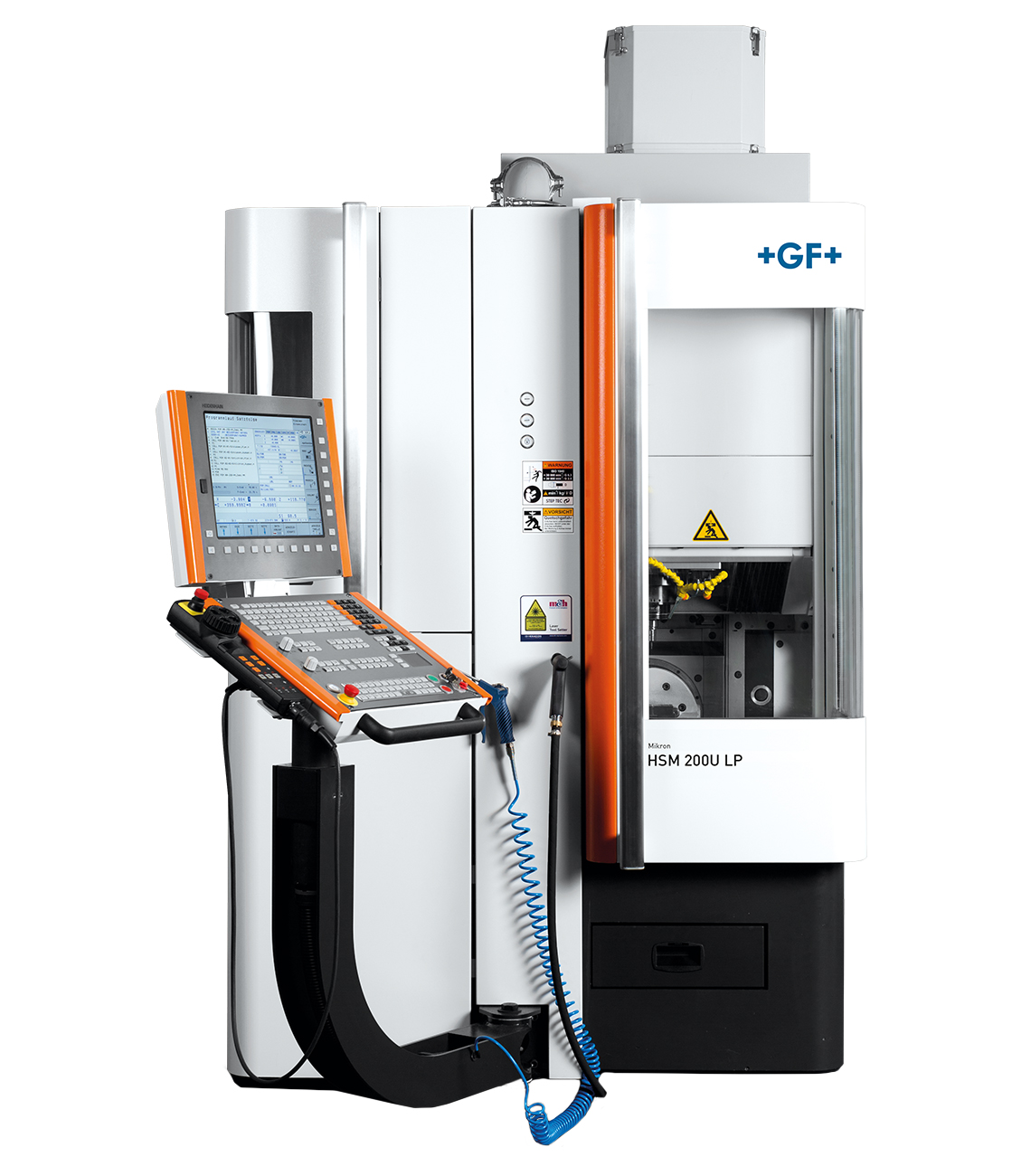

Mikron HSM 200U LP

High Speed Machine: Mikron HSM/MILL S Series

The Mikron HSM/MILL S Series machines are built with high-speed spindles, high feed rates, rapid acceleration, and 5-axis machining capabilities designed for manufacturing a wide range of complex die and mold parts. The HSM/MILL S Series is capable of reaching speeds 10 times faster than conventional milling machines and features model options specifically designed for Graphite and Precision machining.

Mikron HSM 200U LP

Travels
Travel Distance X-axis
160 mm (6.3 in)
Travel Distance Y-axis
160 mm (6.3 in)
Travel Distance Z-axis
200 mm (7.9 in)
Travel Distance B-axis
+30°/-120°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
42 m/min (1653.5 in/min)
Rapid Traverse Y-axis
42 m/min (1653.5 in/min)
Rapid Traverse Z-axis
42 m/min (1653.5 in/min)
Rapid Traverse B-axis
150 rpm
Rapid Traverse C-axis
250 rpm
Table
Table Size
Varies by Pallet
Max Load
8 kg (17.6 lbs)
Number of Pallets (Option)
12/14/2020
Spindle
Speed
50000 rpm
Power
8.5 kW (11.4 Hp)
Torque
3.4 Nm (2.5 ft-lbs)
Tooling
Shank
HSK-E32
Changer Capacity
30/60/140
Machine Size
Length
2330 mm (91.7 in)
Height
2140 mm (84.2 in)
Width
1360 mm (53.5 in)
