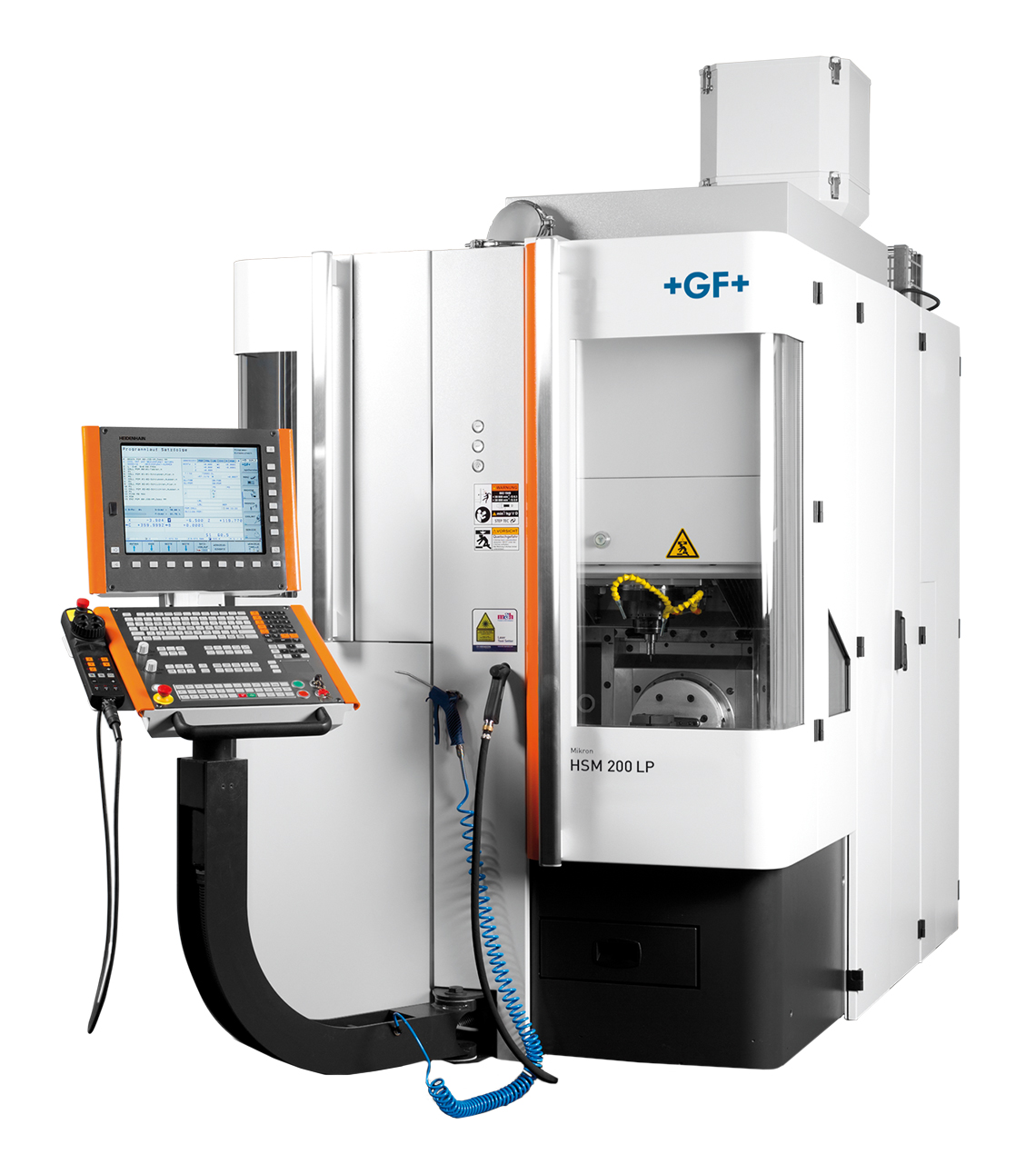

Mikron HSM 200 LP

High Speed Machine: Mikron HSM/MILL S Series

GF Machining Solutions’ high speed machining centers are built with high-speed spindles ranging from 30,000 to 60,000 RPM’s, high feed rates reaching up to 61 m/min, and best-in-class acceleration for machining complex three dimensional surfaces across a wide range of applications. The MILL S Series also features specialized models for Moldmaster, Graphite, and Precision.

Mikron HSM 200 LP

Travels
Travel Distance X-axis
160 mm (6.3 in)
Travel Distance Y-axis
160 mm (6.3 in)
Travel Distance Z-axis
200 mm (7.9 in)
Rapid Traverse X-axis
42 m/min (1653.5 in/min)
Rapid Traverse Y-axis
42 m/min (1653.5 in/min)
Rapid Traverse Z-axis
42 m/min (1653.5 in/min)
Table
Table Size
Varies by Pallet
Max Load
20 kg (44.1 lbs)
Number of Pallets (Option)
12/14/20
Spindle
Speed
50000 rpm
Power
8.5 kW (11.4 Hp)
Torque
3.4 Nm (2.5 ft-lbs)
Tooling
Shank
HSK-E32
Changer Capacity
30/60/140
Machine Size
Length
2330 mm (91.7 in)
Height
2140 mm (84.2 in)
Width
1360 mm (53.5 in)
