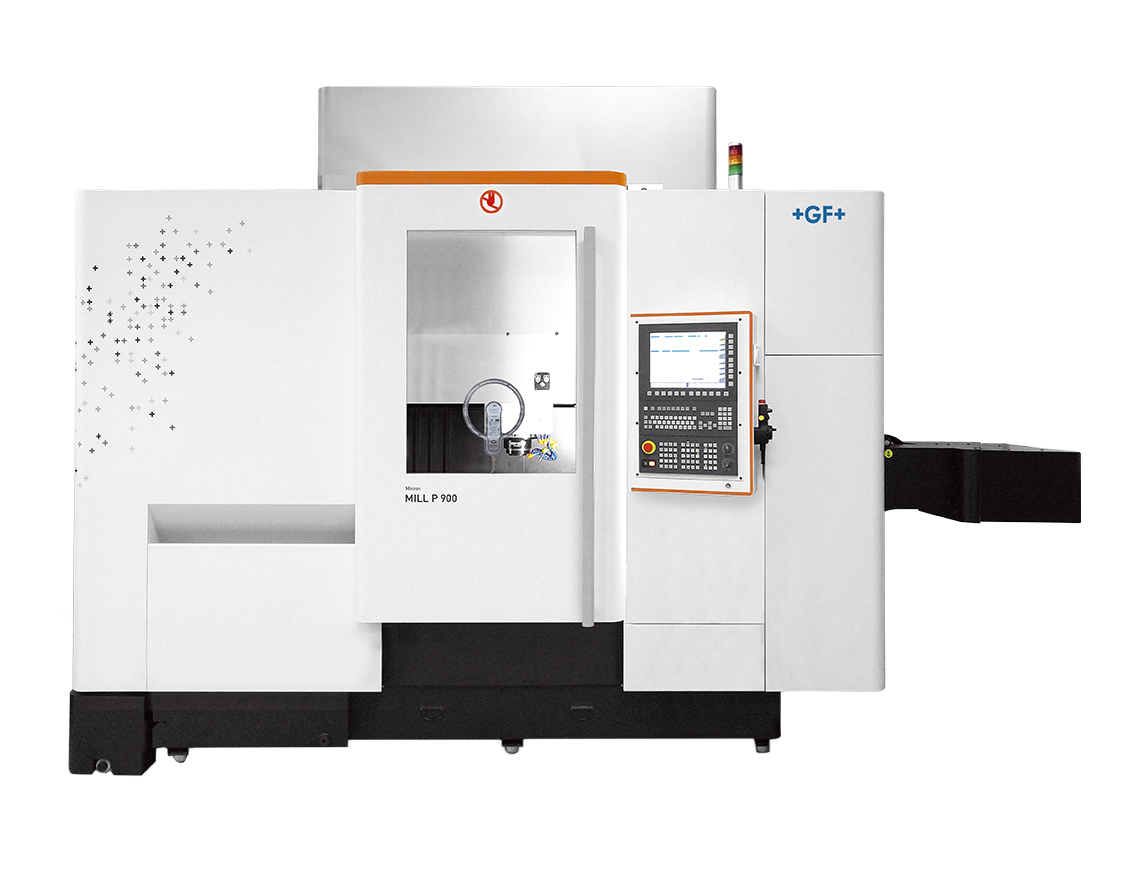

Mikron MILL P 900

High Performance Machine: Mikron HPM/MILL P Series

The High Performance Machine: HPM & MILL P series boasts high power and high torque spindles suitable for removing large volumes of material or machining difficult to cut materials. Achieve precise and economical production in a minimal amount of space.

Mikron MILL P 900

Travels
Travel Distance X-axis
900 mm (35.4 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
450 mm (17.7 in)
Rapid Traverse X-axis
30 m/min (1181 in/min)
Rapid Traverse Y-axis
30 m/min (1181 in/min)
Rapid Traverse Z-axis
30 m/min (1181 in/min)
Table
Table Size
400 x 400 mm (15.7 x 15.7 in)
Max Load
1000 kg (2204 lbs)
Number of Pallets (Option)
5
Spindle
Speed
20000/36000 rpm
Power
33/36 kW (44.3/48.3 Hp)
Torque
21.3/120 Nm (15.7/88.5 ft-lbs)
Tooling
Shank
HSK-A63/HSK-E50
Changer Capacity
30/60
Machine Size
Length
2238 mm (88.1 in)
Height
3102 mm (122.1 in)
Width
4825 mm (190 in)
