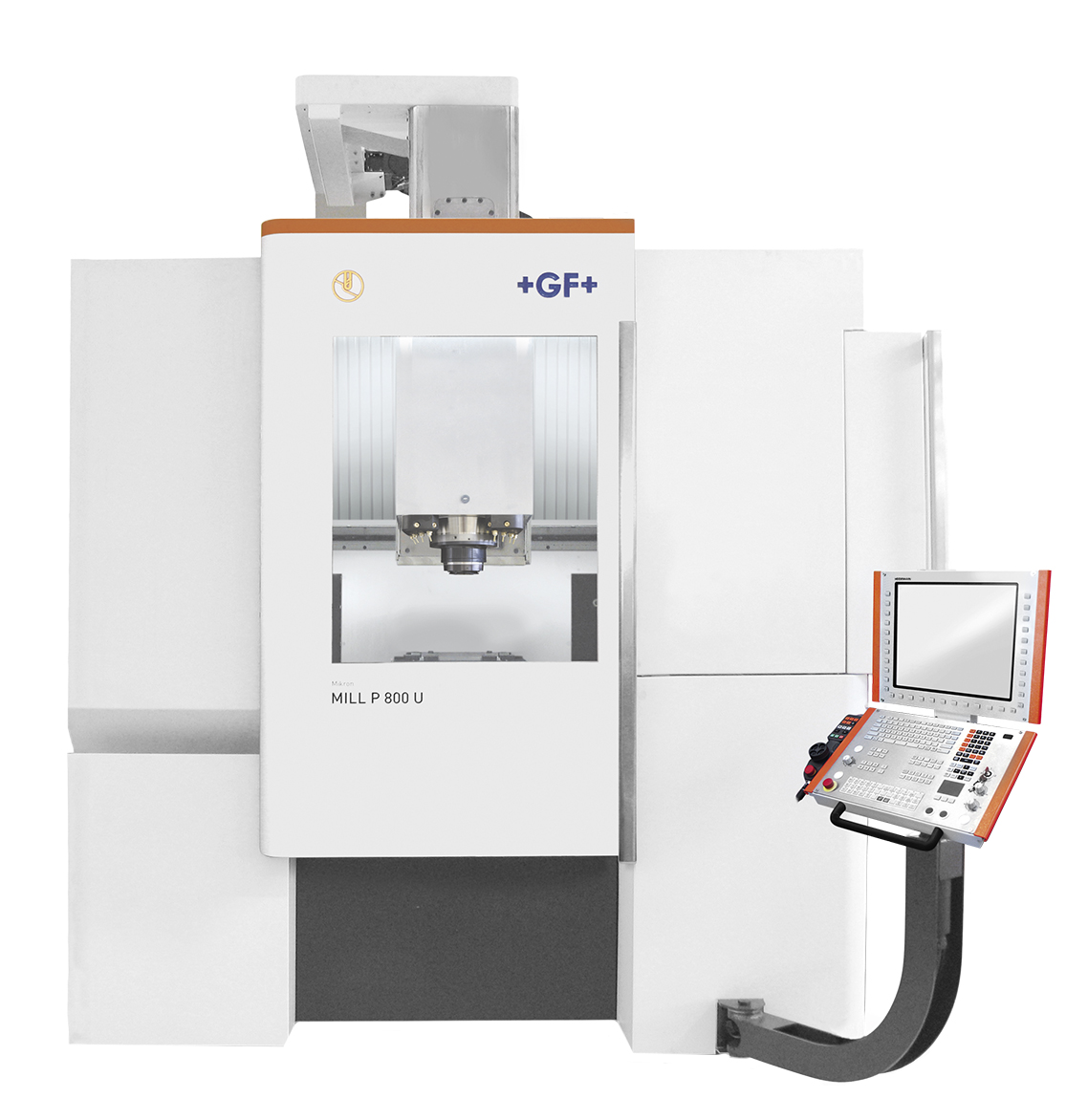

Mikron MILL P 800 U

High Performance Machine: Mikron HPM/MILL P Series

The HPM/MILL P Series from GF Machining Solutions is built to handle anything you throw at it. Rather than maximizing speed, the MILL P and HPM series are designed to maximize precision and material removal volume when machining tough metals. High spindle power and torque, 5-axis machining, and automated pallet and tool magazines are meshed together to bring you a machine capable handling the toughest parts.

Mikron MILL P 800 U

Travels
Travel Distance X-axis
800 mm (31.5 in)
Travel Distance Y-axis
800 mm (31.5 in)
Travel Distance Z-axis
550 mm (21.6 in)
Travel Distance A-axis
+91°/-121°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
45 m/min (1771.7 in/min)
Rapid Traverse Y-axis
45 m/min (1771.7 in/min)
Rapid Traverse Z-axis
45 m/min (1771.7 in/min)
Rapid Traverse A-axis (3+2 axis)
25 rpm
Rapid Traverse A-axis (5 axis)
50 rpm
Rapid Traverse C-axis (3+2 axis)
35 rpm
Rapid Traverse C-axis (5 axis)
60 rpm
Table
Table Size
⌀500/631 mm (19.7/24.8 in)
Max Load
500/800 kg (1102.3/1763.7 lbs)
Number of Pallets (Option)
2/7/9/12
Spindle
Speed
20000/28000/36000 rpm
Power
33/36 kW (44.2/48.3 Hp)
Torque
21/36/120 Nm (15.5/26.6/88.5 ft-lbs)
Tooling
Shank
HSK-A63/HSK-E50/HSK-T63
Changer Capacity
30/60/120/170/215
Machine Size
Length
3554 mm (139.9 in)
Height
3450 mm (135.8 in)
Width
3750 mm (147.6 in)
