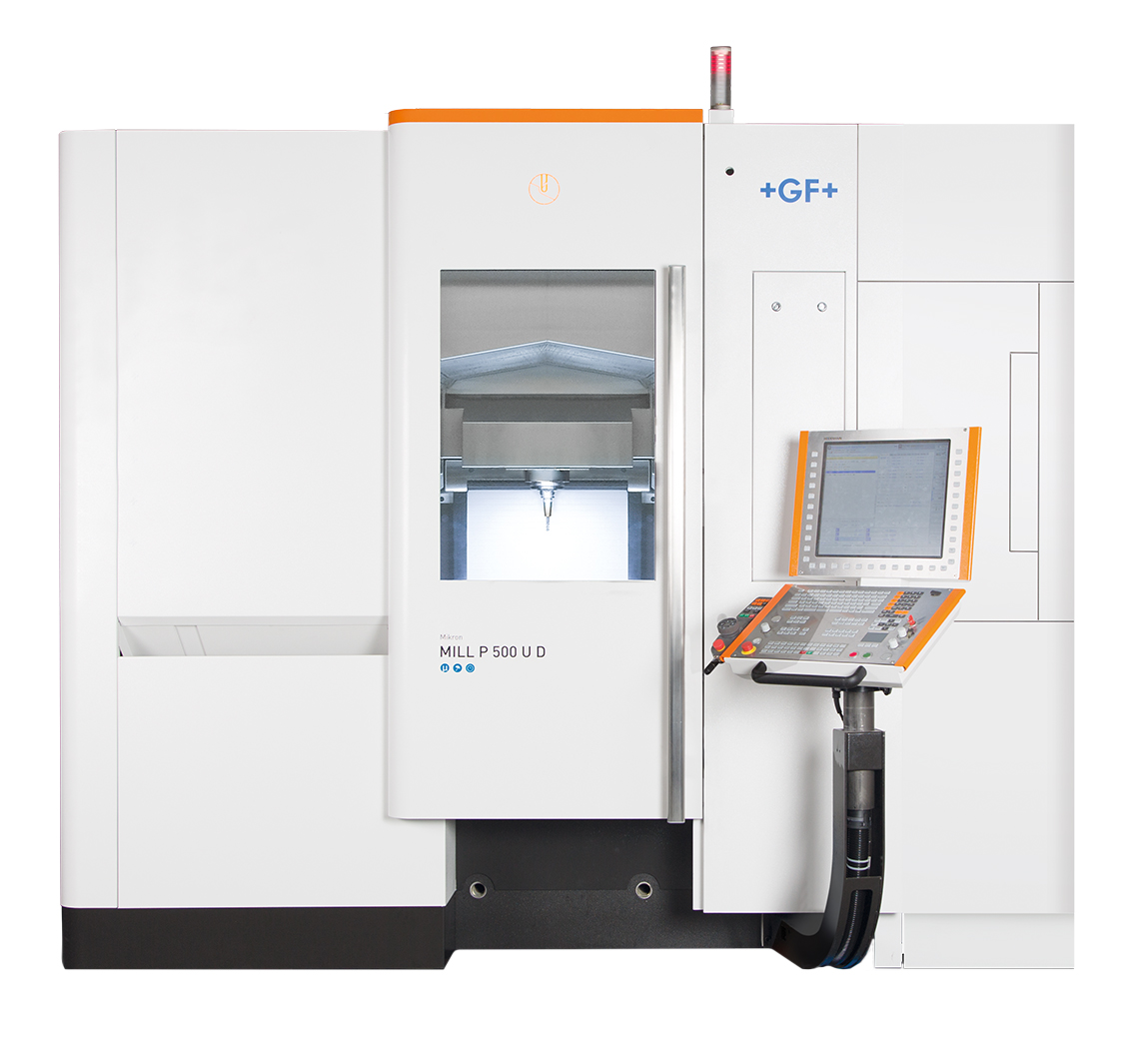

Mikron MILL P 500 U

High Performance Machine: Mikron HPM/MILL P Series

The HPM/MILL P Series from GF Machining Solutions is built to handle anything you throw at it. Rather than maximizing speed, the MILL P and HPM series are designed to maximize precision and material removal volume when machining tough metals. High spindle power and torque, 5-axis machining, and automated pallet and tool magazines are meshed together to bring you a machine capable handling the toughest parts.

Mikron MILL P 500 U

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
450 mm (17.7 in)
Travel Distance A-axis
+91°/-121°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
45 m/min (1771.7 in/min)
Rapid Traverse Y-axis
45 m/min (1771.7 in/min)
Rapid Traverse Z-axis
45 m/min (1771.7 in/min)
Rapid Traverse A-axis (3+2 axis)
25 rpm
Rapid Traverse A-axis (5 axis)
50 rpm
Rapid Traverse C-axis (3+2 axis)
35 rpm
Rapid Traverse C-axis (5 axis)
60 rpm
Table
Table Size
⌀500 mm (19.7 in)
Max Load
200/400/600 kg (440.9/881.8/1322.8 lbs)
Number of Pallets (Option)
4/5/2007
Spindle
Speed
20000/36000 rpm
Power
33/36 kW (44.2/48.3 Hp)
Torque
21/120 Nm (15.5/88.5 ft-lbs)
Tooling
Shank
HSK-A63/HSK-E50/HSK-T63
Changer Capacity
30/60/120/170/215
Machine Size
Length
2510 mm (98.8 in)
Height
3150 mm (124 in)
Width
4170 mm (164.2 in)
