Mikron HPM 1350U

High Performance Machine: Mikron HPM/MILL P Series

The HPM/MILL P Series from GF Machining Solutions is built to handle anything you throw at it. Rather than maximizing speed, the MILL P and HPM series are designed to maximize precision and material removal volume when machining tough metals. High spindle power and torque, 5-axis machining, and automated pallet and tool magazines are meshed together to bring you a machine capable handling the toughest parts.

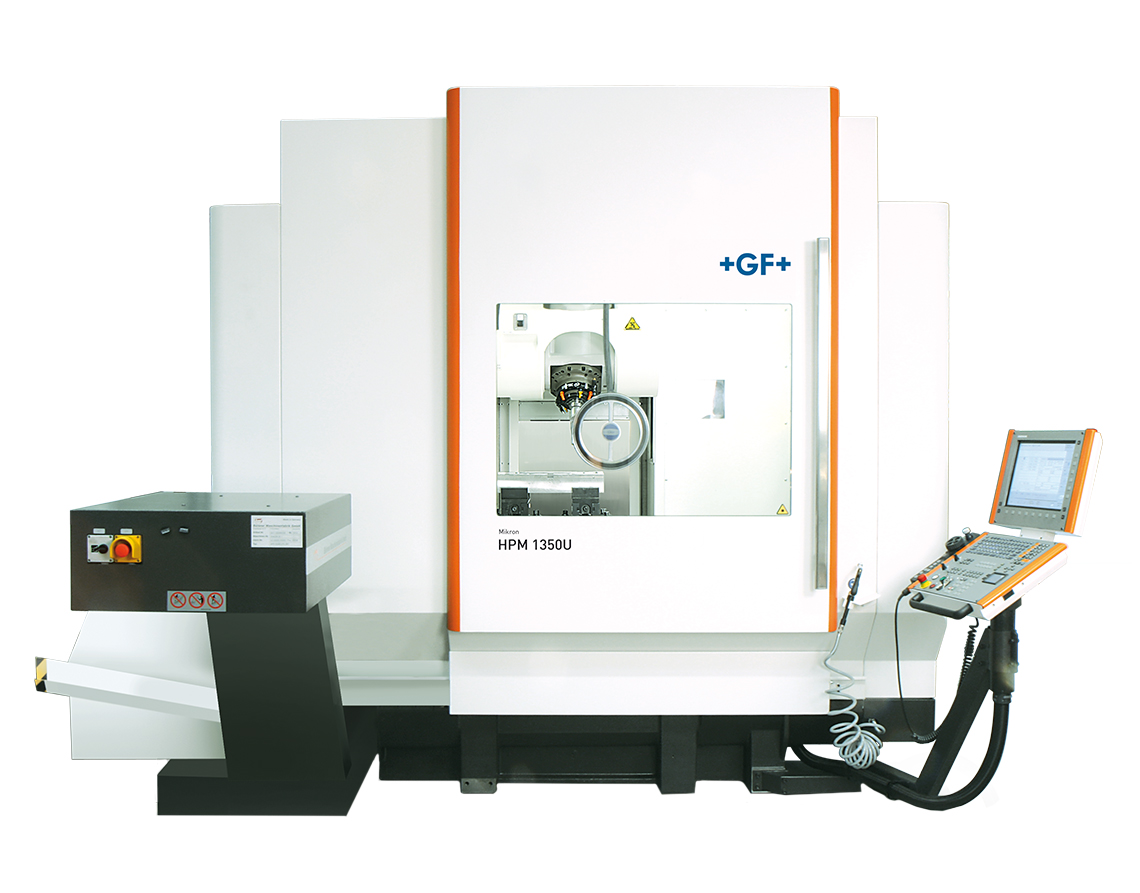

Mikron HPM 1350U

Travels
Travel Distance X-axis
1350 mm (53.1 in)
Travel Distance Y-axis
1150 mm (45.3 in)
Travel Distance Z-axis
700/895 mm (27.6/35.2 in)
Travel Distance A-axis
+16°/-120°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
15/32 m/min (590.6/1259.8 in/min)
Rapid Traverse Y-axis
15/32 m/min (590.6/1259.8 in/min)
Rapid Traverse Z-axis
15/32 m/min (590.6/1259.8 in/min)
Rapid Traverse A-axis
11/20 m/min (433.1/787.4 in/min)
Rapid Traverse C-axis
40 rpm
Table
Table Size
⌀1100 mm (43.3 in)
Max Load
1600 kg (3527.4lbs)
Number of Pallets (Option)
3
Spindle
Speed
10000/15000/24000 rpm
Power
30/34/38 kW (40.2/45.6/50.9 Hp)
Torque
75/193/324 Nm (55.3/142.3/239 ft-lbs)
Tooling
Shank
ISO-B40/HSK-A63/HSK-A100
Changer Capacity
30/46/92/170
Machine Size
Length
4190 mm (165 in)
Height
3150 mm (124 in)
Width
4890 mm (192.5 in)
