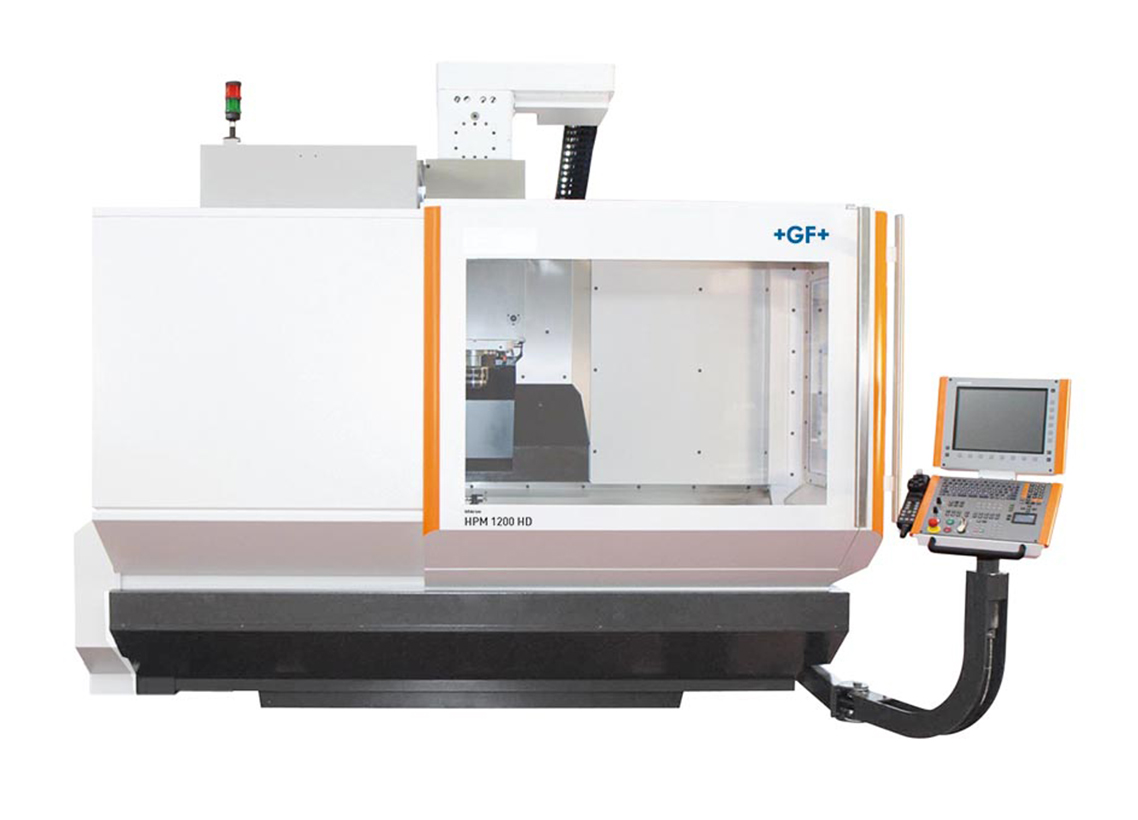

Mikron HPM 1200 HD

High Performance Machine: Mikron HPM/MILL P Series

The High Performance Machine: HPM & MILL P series boasts high power and high torque spindles suitable for removing large volumes of material or machining difficult to cut materials. Achieve precise and economical production in a minimal amount of space.

Mikron HPM 1200 HD

Travels
Travel Distance X-axis
1200 mm (47.2 in)
Travel Distance Y-axis
600 mm (23.6 in)
Travel Distance Z-axis
500 mm (19.7 in)
Rapid Traverse X-axis
40 m/min (1575 in/min)
Rapid Traverse Y-axis
40 m/min (1575 in/min)
Rapid Traverse Z-axis
30 m/min (1181 in/min)
Table
Table Size
1400 x 600 mm (55.1 x 23.6 in)
Max Load
1200 kg (2645.5 lbs)
Pallet Size (Option)
800 x 600 mm (31.5 x 23.6 in)
Number of Pallets (Option)
4
Spindle
Speed
15000/20000 rpm
Power
39 kW (52.3 Hp)
Torque
84 Nm (61.9 ft-lbs)
Tooling
Shank
HSK-A63/ISO-SK40
Changer Capacity
60
Machine Size
Length
2867 mm (112.9 in)
Width
3182 mm (125.3 in)
