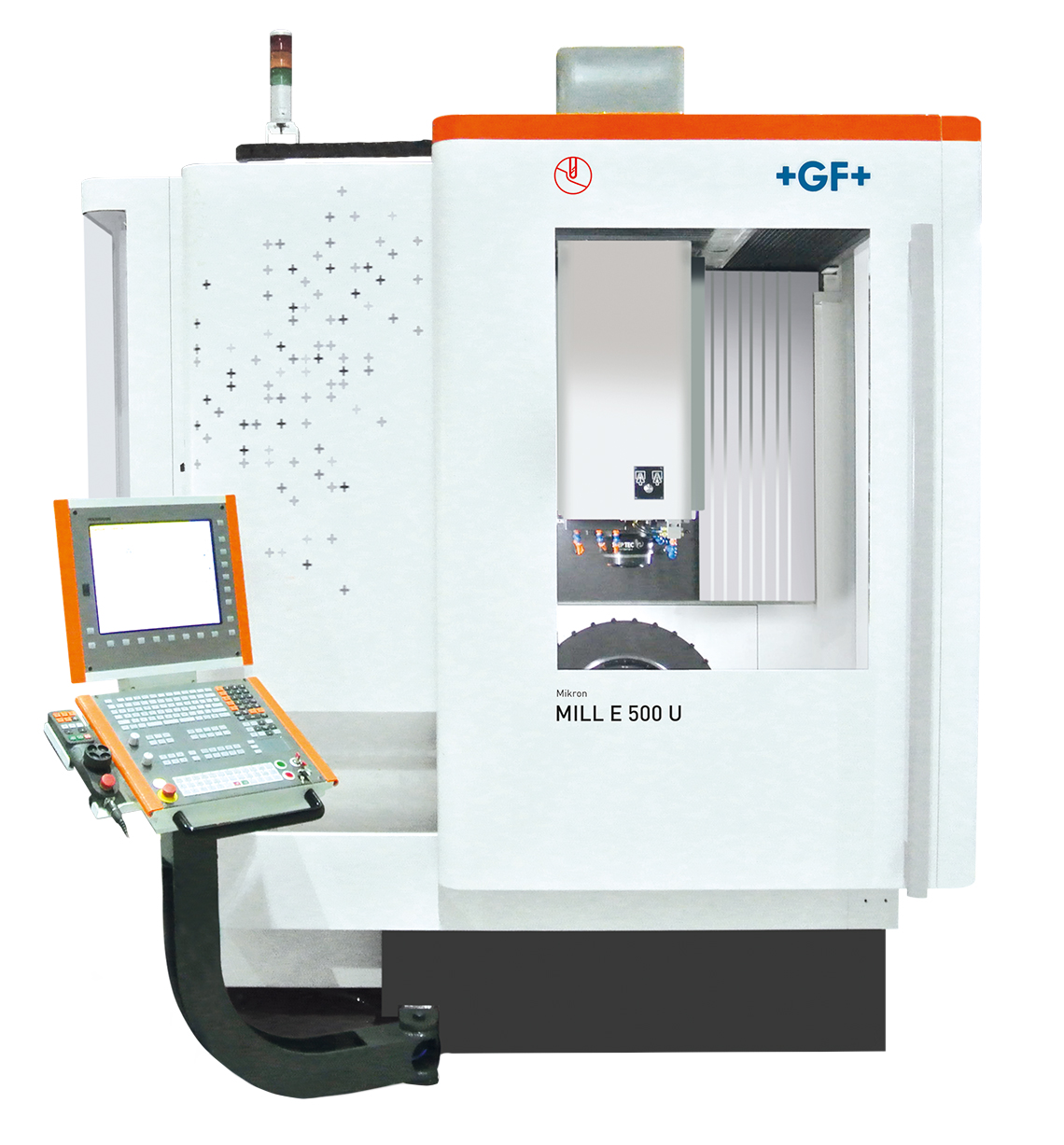

Mikron MILL E 500 U

High Efficiency Machine: Mikron MILL E Series

The Mikron MILL E Series from GF Machining Solutions offers universal 5-axis machining capabilities allowing the user to do more in less time. Designed with flexibility, reliability, and efficiency in mind, the MILL E Series incorporates machining technology and structural features to maximize rigidity and precision without sacrificing speed. The MILL E comes equipped with a pivoting and rotary table, and several options for table sizes, pallet pool systems, and tool magazine capacities.

Mikron MILL E 500 U

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
450 mm (17.7 in)
Travel Distance Z-axis
400 mm (15.7 in)
Travel Distance B-axis
-65°/+120°
Travel Distance C-axis
n x 360°
Rapid Traverse X-axis
30 m/min (1181 in/min)
Rapid Traverse Y-axis
30 m/min (1181 in/min)
Rapid Traverse Z-axis
30 m/min (1181 in/min)
Rapid Traverse B-axis (3+2 axis)
17 rpm
Rapid Traverse C-axis (3+2 axis)
28 rpm
Rapid Traverse B-axis (5 axis)
32 rpm
Rapid Traverse C-axis (5 axis)
112 rpm
Table
Table Size
320/350/400 mm² (12.6/13.8/15.7 in²)
Max Load
300 kg (661.4 lbs)
Number of Pallets (Option)
7/10
Spindle
Speed
12000/20000 rpm
Power
20/36 kW (26.8/48.3 Hp)
Torque
88/120 Nm (64.9/88.5 ft-lbs)
Tooling
Shank
ISO 40/BT 40/CAT 40/HSK-A63
Changer Capacity
30/60
Machine Size
Length
2630 mm (103.5 in)
Height
3130 mm (123.2 in)
Width
3400 mm (133.8 in)
