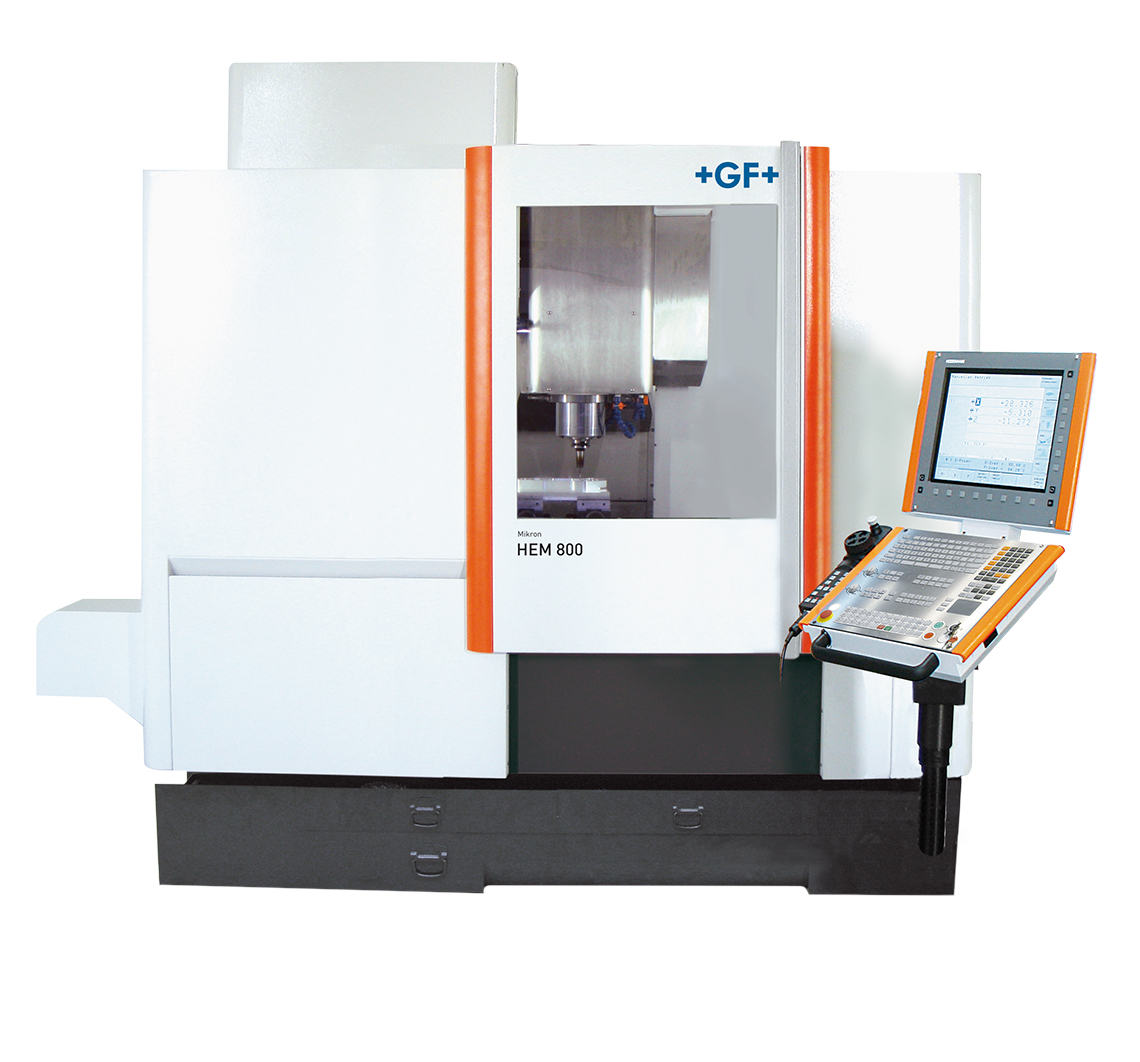

Mikron HEM 800

High Efficiency Machine: Mikron HEM Series

The HEM Series from GF Machining Solutions is build for flexible, 3-axis machining in a compact footprint. Save time and increase production with GF's intelligent technology features that enhance controlability and optimizes machining efficiency.

Mikron HEM 800

Travels
Travel Distance X-axis
850 mm (33.5 in)
Travel Distance Y-axis
530 mm (20.9 in)
Travel Distance Z-axis
600 mm (23.6 in)
Rapid Traverse X-axis
35 m/min (1377.9 in/min)
Rapid Traverse Y-axis
35 m/min (1377.9 in/min)
Rapid Traverse Z-axis
35 m/min (1377.9 in/min)
Table
Table Size
1050 x 560 mm (41.3 x 22 in)
Max Load
800 kg (1763.7 lbs)
Max Part Height
750 mm (29.5 in)
Spindle
Speed
9000/16000/20000 rpm
Power
9.5/15/26 kW (12.7/20.1/34.9 Hp)
Torque
71/91/94 Nm (52.4/67.1/69.3 ft-lbs)
Tooling
Shank
BT 40/ISO 40/HSK-A63
Changer Capacity
24/30
Max Tool Diameter
⌀80/125 mm (3.1/4.9 in)
Max Tool Length
300 mm (11.8 in)
Machine Size
Length
2610 mm (102.8 in)
Height
2850 mm (112.2 in)
Width
2550 mm (100.4 in)
