Mikron HEM 600

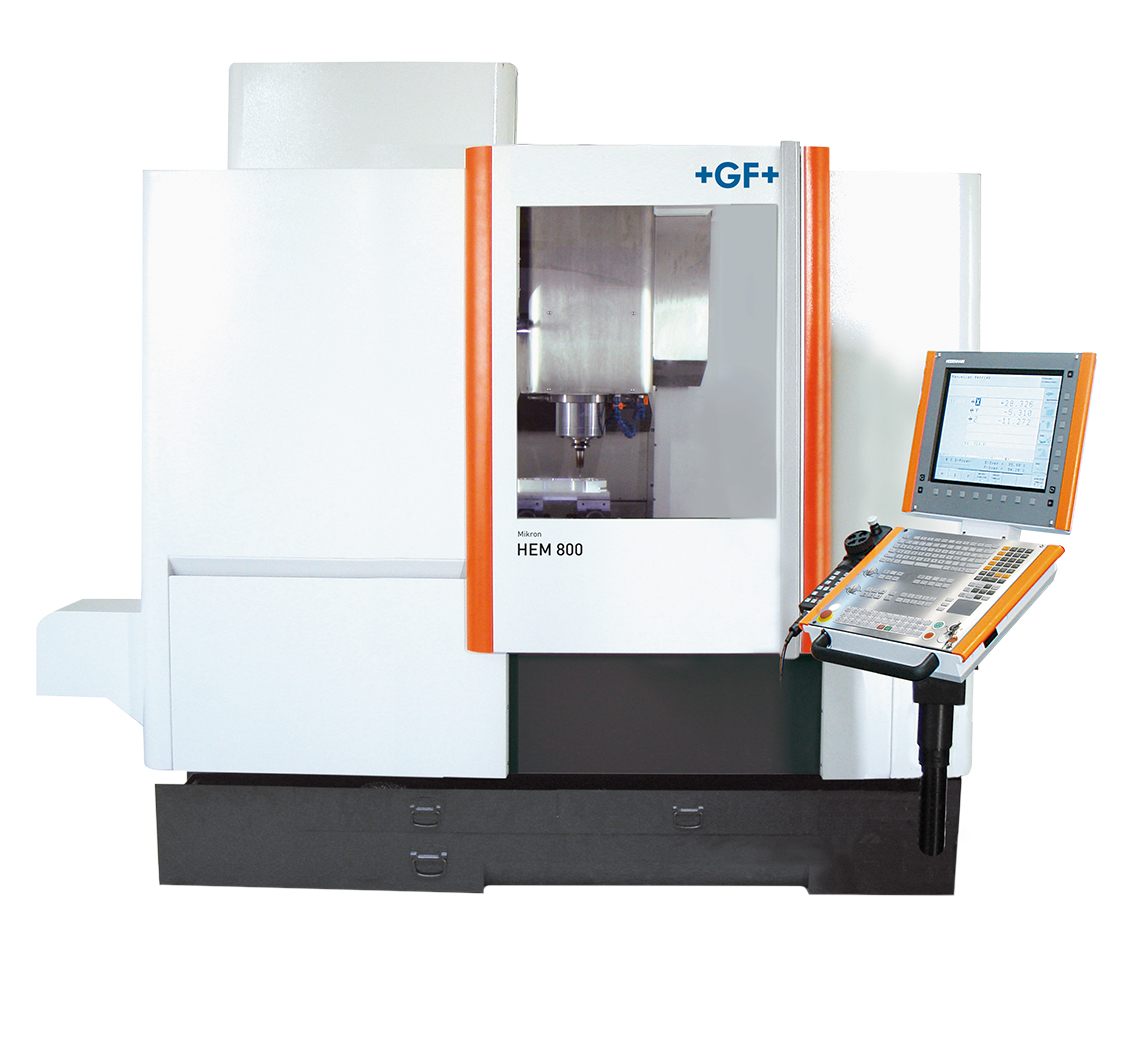

High Efficiency Machine: Mikron HEM Series

The HEM Series from GF Machining Solutions is build for flexible, 3-axis machining in a compact footprint. Save time and increase production with GF's intelligent technology features that enhance controlability and optimizes machining efficiency.

Mikron HEM 600

Travels
Travel Distance X-axis
650 mm (25.6 in.)
Travel Distance Y-axis
530 mm (20.9 in.)
Travel Distance Z-axis
600 mm (23.6 in.)
Rapid Traverse X-axis
35 m/min. (1,377.9 in./min.)
Rapid Traverse Y-axis
35 m/min. (1,377.9 in./min.)
Rapid Traverse Z-axis
35 m/min. (1,377.9 in./min.)
Table
Table Size
850 x 560 mm (33.5 x 22 in.)
Max Load
600 kg (1,320 lbs.)
Max Part Height
750 mm (29.5 in.)
Spindle
Speed
9,000/16,000/20,000 rpm
Power
9.5/15/26 kW (12.7/20.1/34.9 Hp)
Torque
71/91/94 Nm (52.4/67.1/69.3 ft-lbs.)
Tooling
Shank
BT 40/ISO 40/HSK-A63
Changer Capacity
24/30
Max Tool Diameter
⌀80/125 mm (3.2/4.9 in.)
Max Tool Length
300 mm (11.8 in.)
Machine Size
Length
2,610 mm (102.8 in.)
Height
2,850 mm (112.2 in.)
Width
2,550 mm (100.4 in.)
