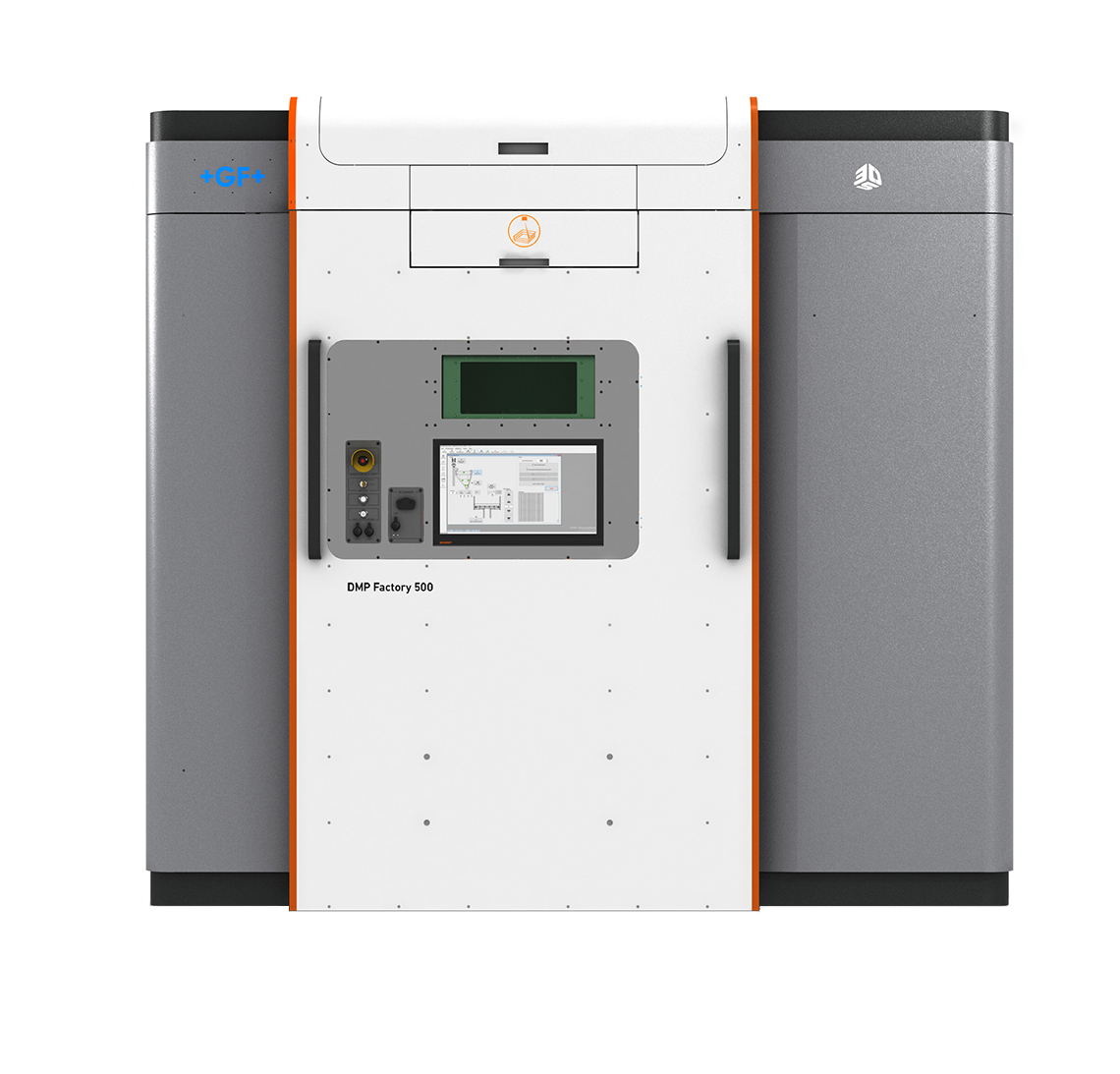

DMP Factory 500

DMP Factory/Flex Series

GF Machining Solutions and 3D Systems have partnered to introduce new metal additive manufacturing 3D printing solutions. Engineered using 3D Systems’ precise metal additive technology, along with GF’s technical and industrial knowledge, and the precision System 3R clamping systems, the DMP Factory/Flex Series is a fully integrated, streamlined metal additive machining solution. The DMP is capable of manufacturing parts with complex shapes, high densities, and high repeatability in a single process creating seamless parts that can meet the needs of aerospace, automotive, motorsports, and high-tech industries.

The DMP Factory is a workflow-optimized solution for repeatable high-quality parts, large scalability, high throughput, low Total Cost of Ownership (TCO), and offers integrated powder management system for higher performance and efficiency.

The DMP Flex offers a modular design that enhances gas flow for improved production of highly dense and repeatable parts while maintaining a low TCO.

DMP Factory 500

Laser
Power
3 x 500 W
Type
Fiber Laser
Accuracy
±0.1-0.2% with ±50 µm (0.0002 in) minimum
Capacity
Layer Thickness Range
Adjustable 2-200 µm (0.0008-0.0079 in)
Layer Thickness Preset
Typ. 30-60-90 µm (0.0012-0.0024-0.0035 in)
Max Part Size
500 x 500 x 500 mm (19.7 x 19.7 x 19.7 in)
Minimum Feature Size
100 µm (0.0039 in)
Available Materials
Metals
Nickel Alloys, Titanium
Other
Available Upon Request
Machine Size
Length
2290 mm (90 in)
Height
2820 mm (111 in)
Width
3010 mm (118 in)
Requirements
Electrical
400 V AC 3 phase + N + PE - 50/60 Hz
