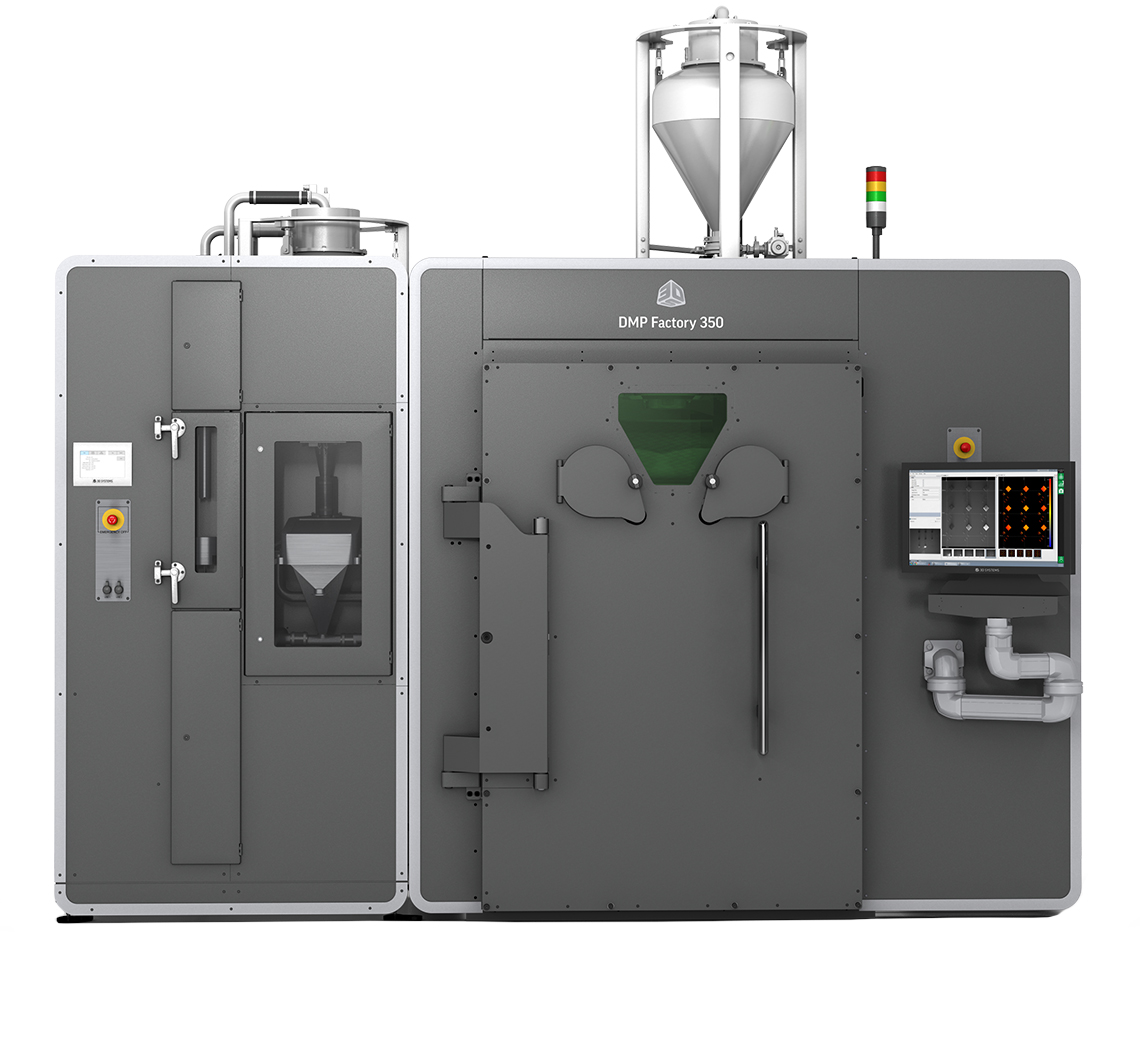

DMP Factory 350

DMP Factory/Flex Series

GF Machining Solutions and 3D Systems have partnered to introduce new metal additive manufacturing 3D printing solutions. Engineered using 3D Systems’ precise metal additive technology, along with GF’s technical and industrial knowledge, and the precision System 3R clamping systems, the DMP Factory/Flex Series is a fully integrated, streamlined metal additive machining solution. The DMP is capable of manufacturing parts with complex shapes, high densities, and high repeatability in a single process creating seamless parts that can meet the needs of aerospace, automotive, motorsports, and high-tech industries.

The DMP Factory is a workflow-optimized solution for repeatable high-quality parts, large scalability, high throughput, low Total Cost of Ownership (TCO), and offers integrated powder management system for higher performance and efficiency.

The DMP Flex offers a modular design that enhances gas flow for improved production of highly dense and repeatable parts while maintaining a low TCO.

DMP Factory 350

Laser
Power
500 W
Type
Fiber Laser
Accuracy
±0.1-0.2% with ±50 µm (0.0002 in) minimum
Capacity
Layer Thickness Range
10-100 µm (0.0004 in.)
Layer Thickness Preset
30-60 µm (0.0012-0.0024 in.)
Max Part Size
275 x 275 x 380 mm (10.8 x 10.8 x 15 in.)
Minimum Feature Size
100 µm (0.0039 in.)
Available Materials
Metals
Inconel, Titanium, Cobalt Chrome, Aluminium, Steel, Nickel Alloys
Other
Available Upon Request
Machine Size
Requirements
Electrical
400 V AC 3 phase + N + PE - 50/60 Hz
Machine Size
Length
2,290 mm (90.2 in.)
Height
2,820 mm (111 in.)
Width
3,010 mm (118.5 in.)
