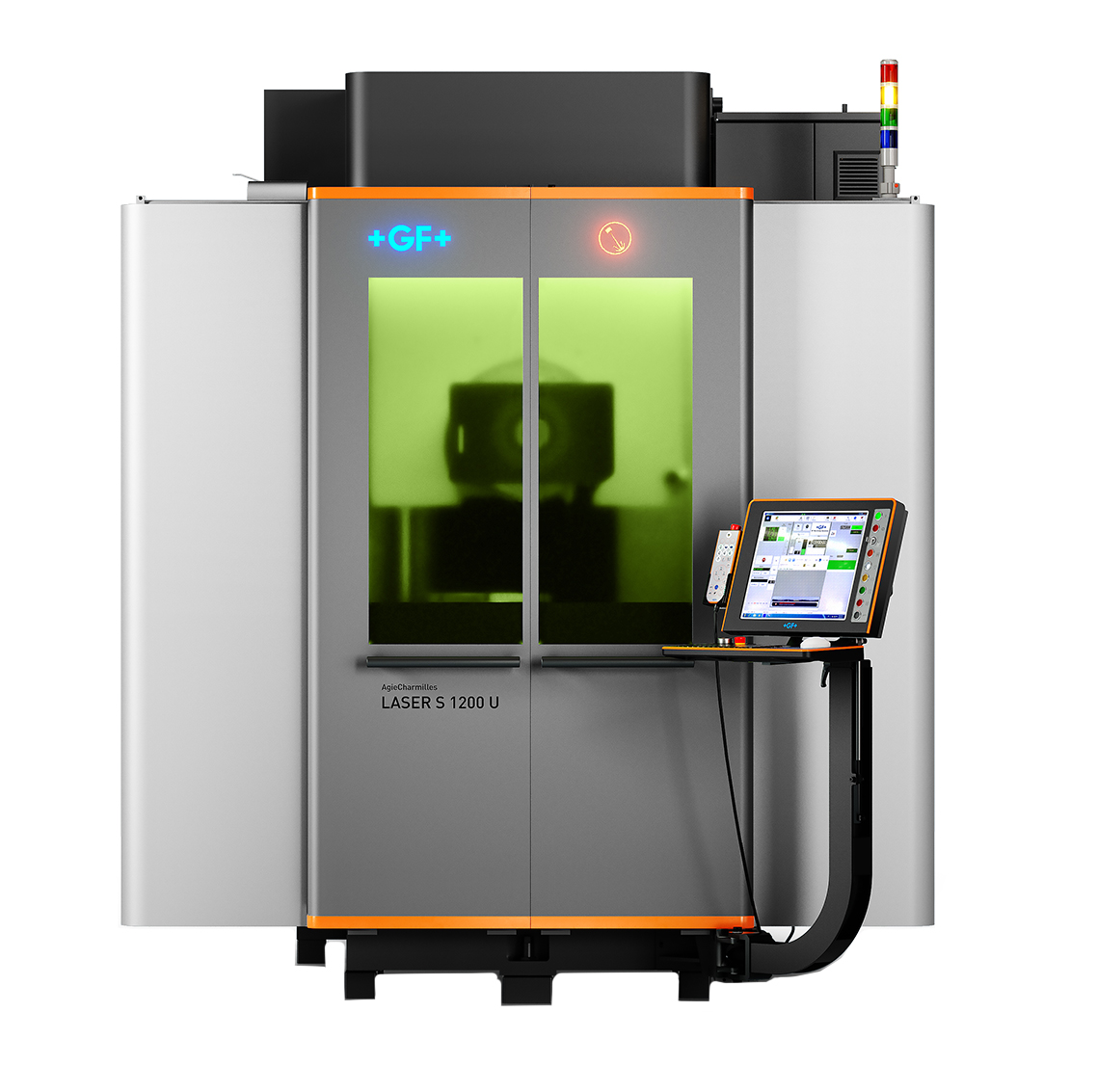

LASER S 1200 U

AgieCharmilles LASER S Series

Innovative laser texturing. Accelerated productivity. The new AgieCharmilles LASER S series from GF Machining Solutions features 40% increased speed, increased surface texturing range, and comes equipped with two nano laser sources for increased productivity. The enhanced Flexipulse laser sources combines high-speed 3D scanning systems and a wider marking field. MAKE MORE in less time and increase your laser texturing capabilities and productivity.

LASER S 1200 U

Travels
Travel Distance X-axis
1,200 mm (47.2 in.)
Travel Distance Y-axis
900 mm (35.4 in.)
Travel Distance Z-axis
1,200 mm (47.2 in.)
Travel Distance A-axis
180°
Travel Distance B-axis
720°
Rotary Table
Table Diameter
⌀800 mm (31.5 in.)
Max Part Diameter
⌀810 mm (31.9 in.)
Max Part Height
850 mm (33.5 in.)
Max Load
1,700 kg (3,748 lbs)
Laser
Type
Ytterbium Pulsed Fiber Laser
Power
50/100 W
Machine Size
Length
3,404 mm (134 in.)
Height
2,932 mm (115.4 in.)
Width
2,240 mm (88.2 in.)
