AgieCharmilles LASER P 4000 U

AgieCharmilles LASER P Series

Fully digital, precise, and ecologically sound, the AgieCharmilles LASER P Series is optimized for adding distinct textures to molds for car interiors, packaging, home appliance, and ICT components. Capable of texturing, etching, blasting, and engraving, the LASER P Series machines can give you the extra competitive edge in manufacturing and machining. Take your capabilities one step further with the Dedicated series specifically designed for engraving and texturing on tires from bicycles to trucks.

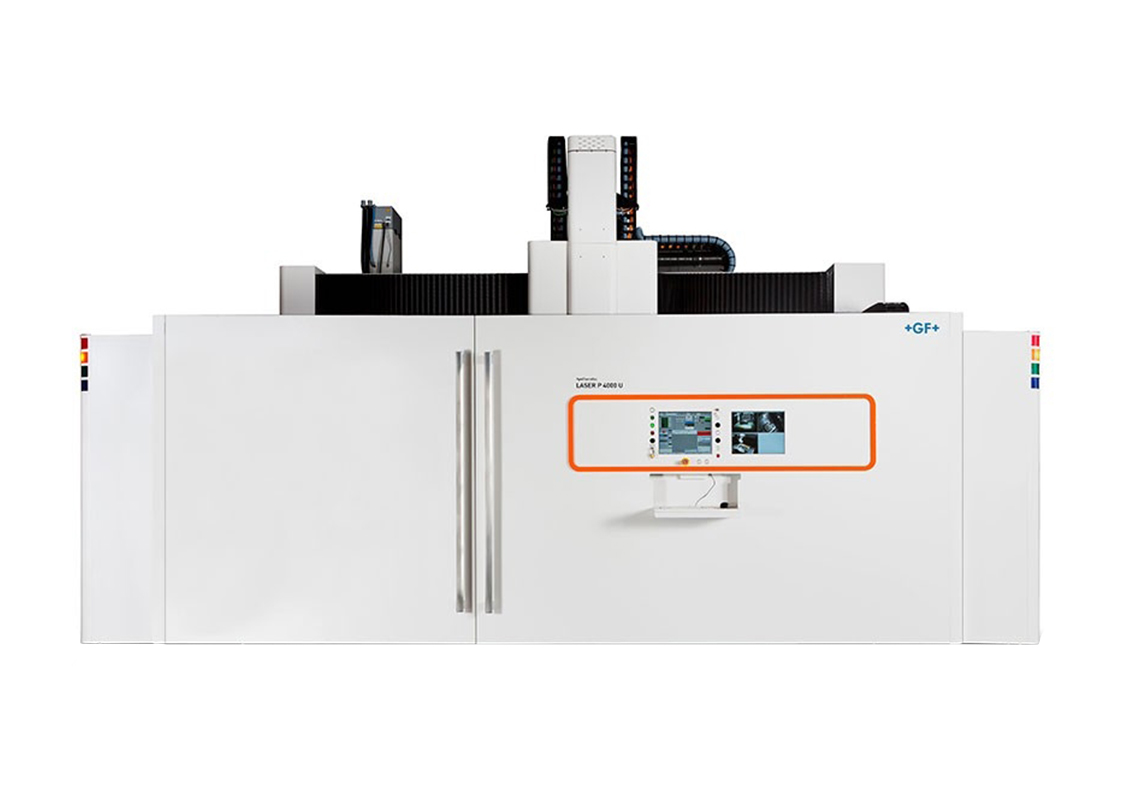

AgieCharmilles LASER P 4000 U

Travels
Travel Distance X-axis
4000 mm (157.5 in)
Travel Distance Y-axis
3000 mm (118.1 in)
Travel Distance Z-axis
1500 mm (59 in)
Travel Distance A-axis
270°
Travel Distance B-axis
370°
Table
Size
4000 x 3000 mm (157.5 x 118.1 in)
Max Part Height
1170 mm (46.1 in)
Max Load
20000 kg (44092 lbs)
Laser
Type
Ytterbium Pulsed Fiber Laser
Power
50/100 W
Consumption
12.5 kW
Machine Size
Length
10000 mm (393.7 in)
Height
5250 mm (206.7 in)
Width
7000 mm (275.6 in)
