AgieCharmilles LASER P 400 U

AgieCharmilles LASER P Series

Fully digital, precise, and ecologically sound, the AgieCharmilles LASER P Series is optimized for adding distinct textures to molds for car interiors, packaging, home appliance, and ICT components. Capable of texturing, etching, blasting, and engraving, the LASER P Series machines can give you the extra competitive edge in manufacturing and machining. Take your capabilities one step further with the Dedicated series specifically designed for engraving and texturing on tires from bicycles to trucks.

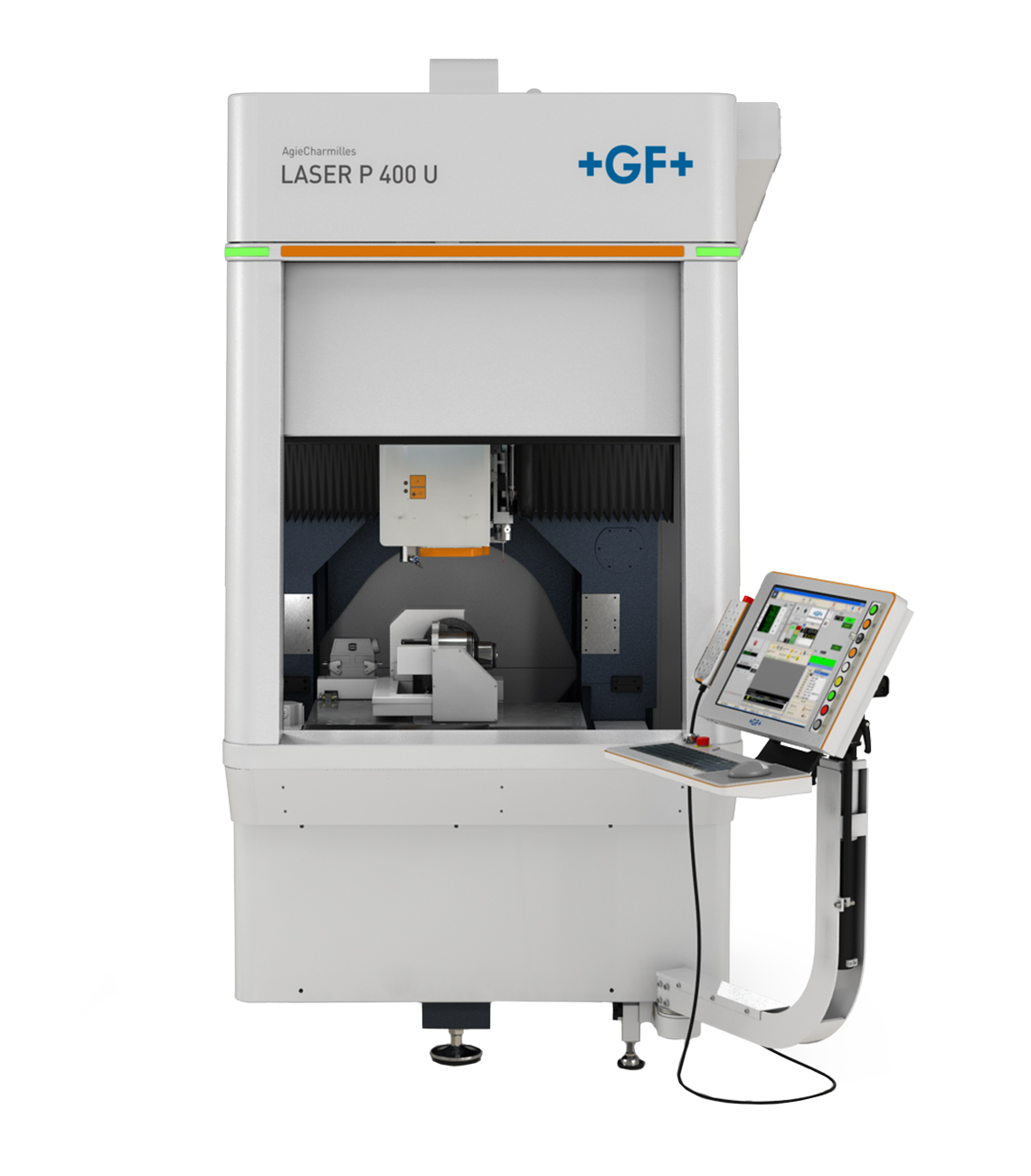

AgieCharmilles LASER P 400 U

Travels
Travel Distance X-axis
600 mm (23.6 in)
Travel Distance Y-axis
400 mm (15.7 in)
Travel Distance Z-axis
300 mm (11.8 in)
Travel Distance A-axis (U Option)
115°-105°
Travel Distance B-axis (U Option)
360°
Table
Table Size
680 x 400 mm (26.8 x 15.7 in)
Max Load (3 axis)
50 kg (110.2 lbs)
Max Load (5 axis)
4 kg (8.8 lbs)
Laser
Type
Nanosecond and/or Ultrashort Pulse
Machine Size
Length
2330 mm (91.7 in)
Height
2490 mm (98 in)
Width
1230 mm (48.4 in)
Requirements
Electrical
3 x 400 Vac + Ground; 6 kVA
