AgieCharmilles LASER P 1200 U/Dedicated

AgieCharmilles LASER P Series

Fully digital, precise, and ecologically sound, the AgieCharmilles LASER P Series is optimized for adding distinct textures to molds for car interiors, packaging, home appliance, and ICT components. Capable of texturing, etching, blasting, and engraving, the LASER P Series machines can give you the extra competitive edge in manufacturing and machining. Take your capabilities one step further with the Dedicated series specifically designed for engraving and texturing on tires from bicycles to trucks.

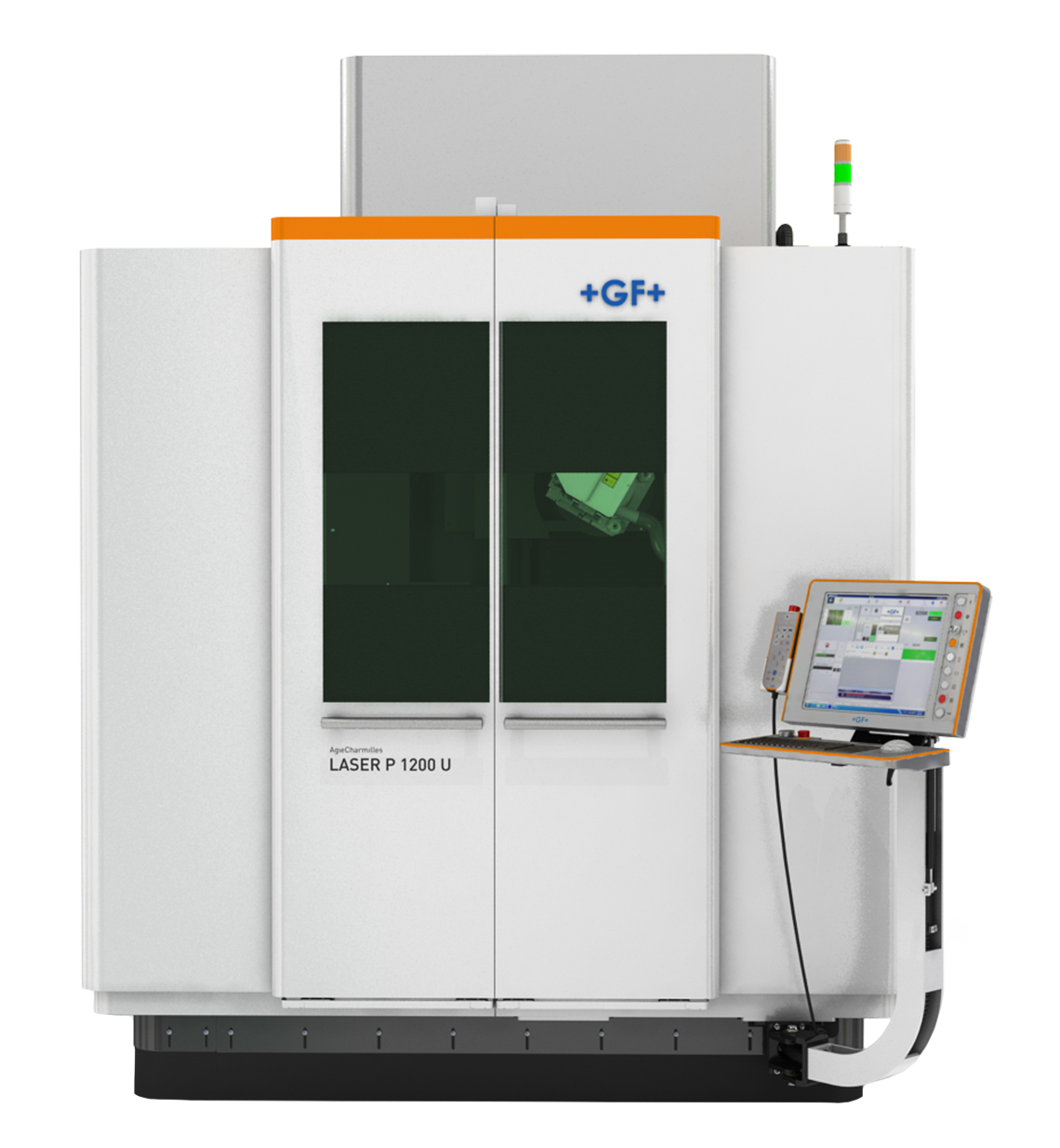

AgieCharmilles LASER P 1200 U/Dedicated

Travels
Travel Distance X-axis
1200 mm (47.2 in)
Travel Distance Y-axis
900 mm (35.4 in)
Travel Distance Z-axis
1200 mm (47.2 in)
Travel Distance A-axis
210°
Travel Distance B-axis
360°
Rotary Table
Table Diameter
Ø800 mm (31.5 in)
Max Part Diameter
Ø920 mm (36.2 in)
Max Part Height
790 mm (31.1 in)
Max Load
1700 kg (3748 lbs)
Speed
90°/s
Laser
Type
Ytterbium Pulsed Fiber Laser
Power
50/100 W
Consumption
4 kW
Machine Size
Length
3395 mm (133.7 in)
Height
2930 mm (115.3 in)
Width
2240 mm (88.2 in)
