AgieCharmilles LASER P 1000 U

AgieCharmilles LASER P Series

Fully digital, precise, and ecologically sound, the AgieCharmilles LASER P Series is optimized for adding distinct textures to molds for car interiors, packaging, home appliance, and ICT components. Capable of texturing, etching, blasting, and engraving, the LASER P Series machines can give you the extra competitive edge in manufacturing and machining. Take your capabilities one step further with the Dedicated series specifically designed for engraving and texturing on tires from bicycles to trucks.

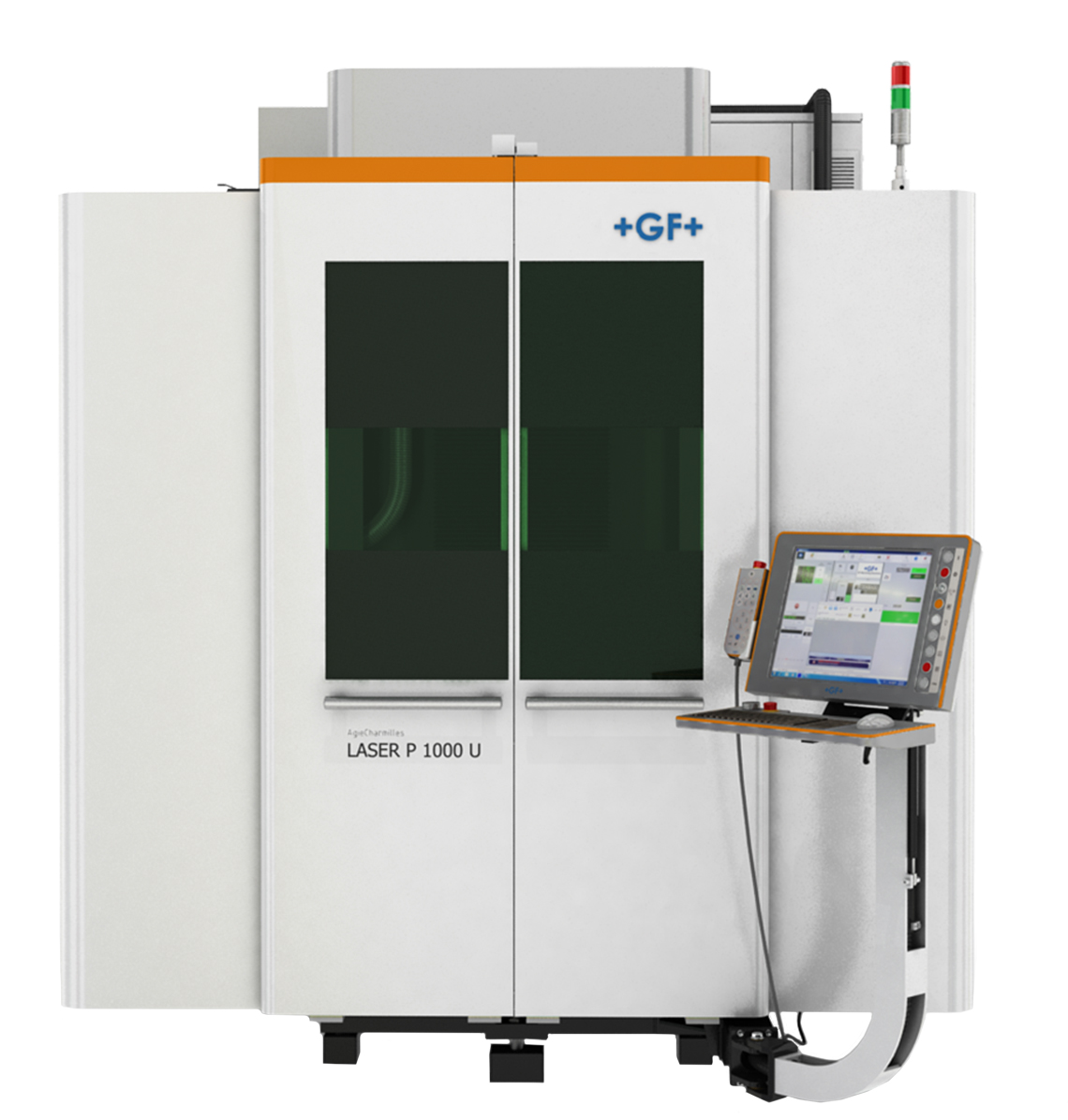

AgieCharmilles LASER P 1000 U

Travels
Travel Distance X-axis
1000 mm (39.4 in)
Travel Distance Y-axis
550 mm (21.6 in)
Travel Distance Z-axis
880 mm (34.6 in)
Travel Distance A-axis
210°
Travel Distance B-axis
360°
Rotary Table
Table Diameter
Ø380 mm (15 in)
Max Part Diameter
Ø510 mm (20.1 in)
Max Part Height
480 mm (18.9 in)
Max Load
150 kg (330 lbs)
Speed
180°/s
Laser
Type
Ytterbium Pulsed Fiber Laser
Power
20/30/50/100 W
Consumption
4 kW
Machine Size
Length
2605 mm (102.6 in)
Height
2845 mm (112 in)
Width
2240 mm (88.2 in)
