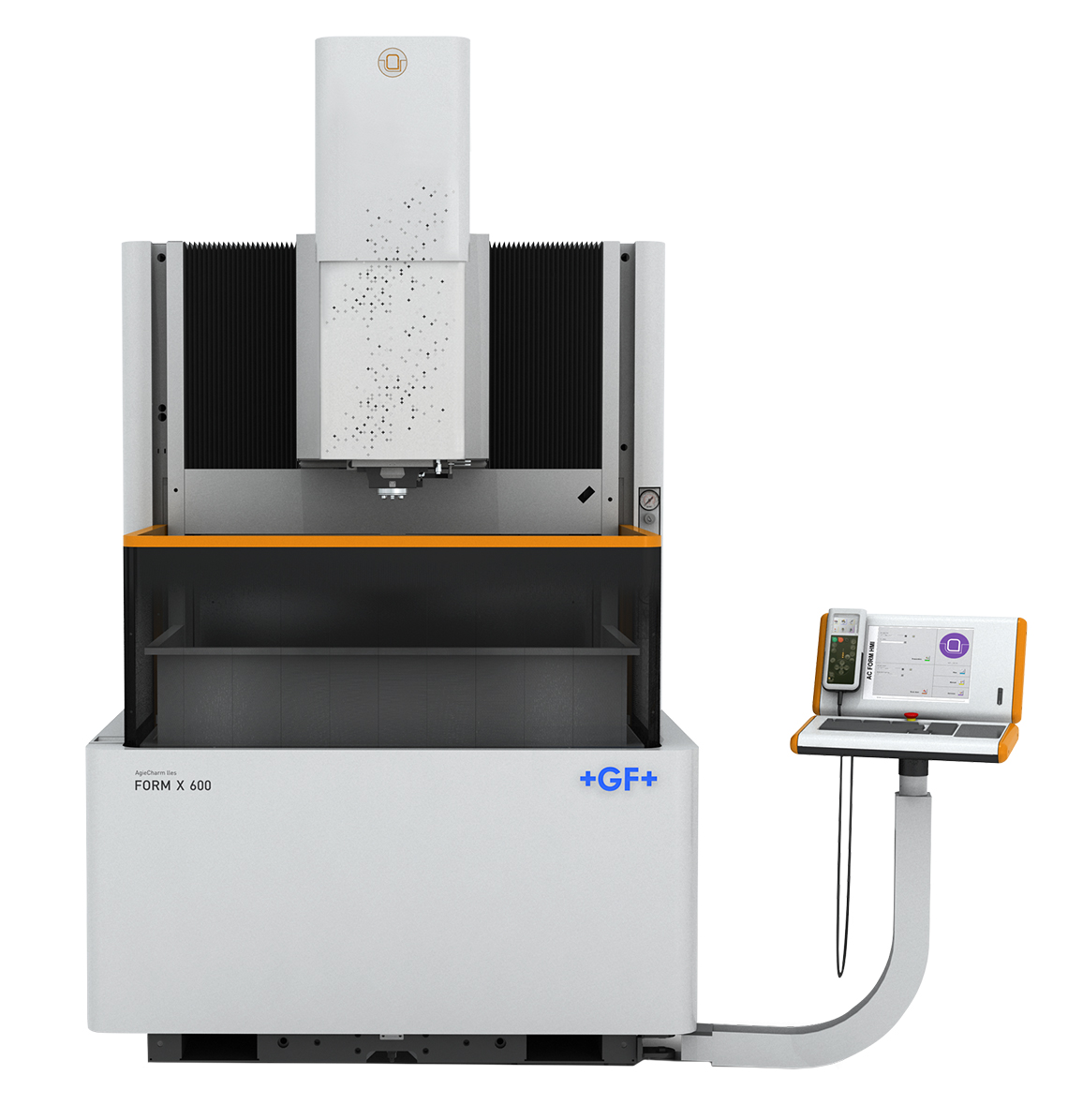

AgieCharmilles FORM X 600

AgieCharmilles FORM X Series

The AgieCharmilles FORM X Series die sinking EDM is designed for extreme accuracy, high precision, and unparalleled productivity. The FORM X utilizes TECFORM technology to ensure the highest accuracy and reproducibility on both big and small parts. Utilizing a fixed table and stiff machine base, the FORM X delivers perfect positioning accuracy along the entire axis travel resulting in high precision throughout the machining area.

AgieCharmilles FORM X 600

Travels
Travel Distance X-axis
600 mm (23.6 in)
Travel Distance Y-axis
400 mm (15.7 in)
Travel Distance Z-axis
500 mm (19.7 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
15 m/min (590.5 in/min)
Table
Table Size
850 x 600 mm (33.5 x 23.6 in)
Max Part Size
1200 x 800 mm (47.2 x 31.5 in)
Max Part Height
350 mm (13.8 in)
Max Load
2000 kg (4409.2 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.08 µm Ra (3.1 µin Ra)
Tooling
Changer Capacity
20/30/40/60/140/210
Machine Size
Length
2860 mm (112.6 in)
Height
3110 mm (122.4 in)
Width
1790 mm (70.5 in)
