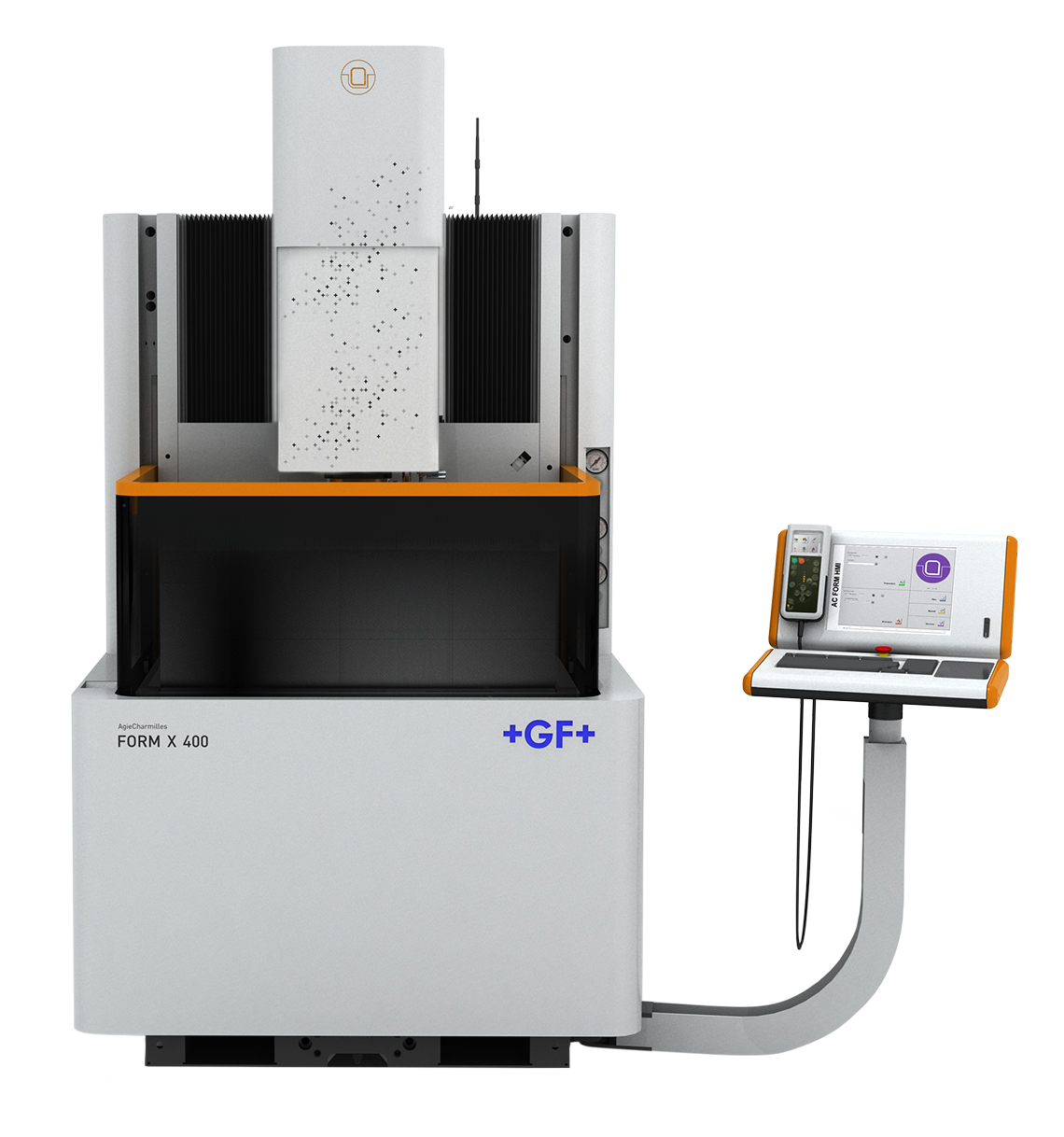

AgieCharmilles FORM X 400

AgieCharmilles FORM X Series

The AgieCharmilles FORM X Series die sinking EDM is designed for extreme accuracy, high precision, and unparalleled productivity. The FORM X utilizes TECFORM technology to ensure the highest accuracy and reproducibility on both big and small parts. Utilizing a fixed table and stiff machine base, the FORM X delivers perfect positioning accuracy along the entire axis travel resulting in high precision throughout the machining area.

AgieCharmilles FORM X 400

Travels
Travel Distance X-axis
400 mm (15.7 in)
Travel Distance Y-axis
300 mm (11.8 in)
Travel Distance Z-axis
350 mm (15.7 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
15 m/min (590.5 in/min)
Table
Table Size
600 x 400 mm (23.6 x 15.7 in)
Max Part Size
820 x 580 mm (32.3 x 22.8 in)
Max Part Height
250 mm (9.8 in)
Max Load
800 kg (1763.7 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.08 µm Ra (3.1 µin Ra)
Tooling
Changer Capacity
20/30/40/60/140/210
Machine Size
Length
2460 mm (96.8 in)
Height
2660 mm (104.7 in)
Width
1410 mm (55.5 in)
