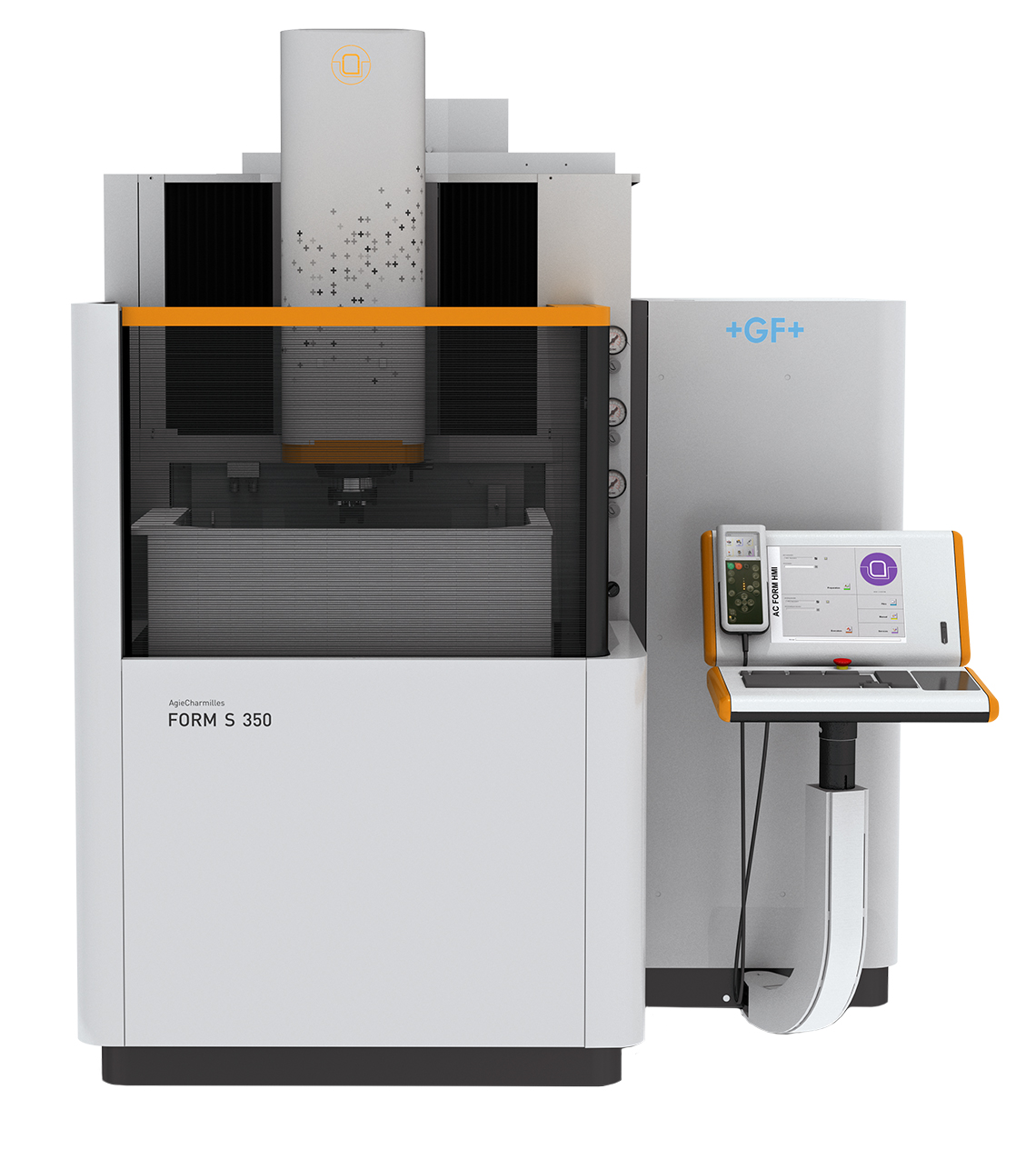

AgieCharmilles FORM S 350

AgieCharmilles FORM S Series

Built for long-lasting reliability, repeatability, and precision, the AgieCharmilles FORM S Series delivers outstanding micromachining precision. The die sinking EDM machine reduces electrode wear keeping your tools lasting longer with structural rigidity to maintain accuracy. The FORM S series is designed to give you the tools to break into the automotive electronics, micro-electronic components, and technological industries.

AgieCharmilles FORM S 350

Travels
Travel Distance X-axis
350 mm (13.8 in)
Travel Distance Y-axis
250 mm (9.85 in)
Travel Distance Z-axis
300 mm (11.8 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
15 m/min (590.5 in/min)
Table
Table Size
500 x 400 mm (19.7 x 15.7 in)
Max Part Size
790 x 530 mm (31.1 x 20.9 in)
Max Part Height
300 mm (11.8 in)
Max Load
500 kg (1102.3 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.08 µm Ra (3.1 µin Ra)
Tooling
Changer Capacity
4-5/16-160
Machine Size
Length
1690 mm (66.5 in)
Height
2650 mm (104.3 in)
Width
1900 mm (74.8 in)
