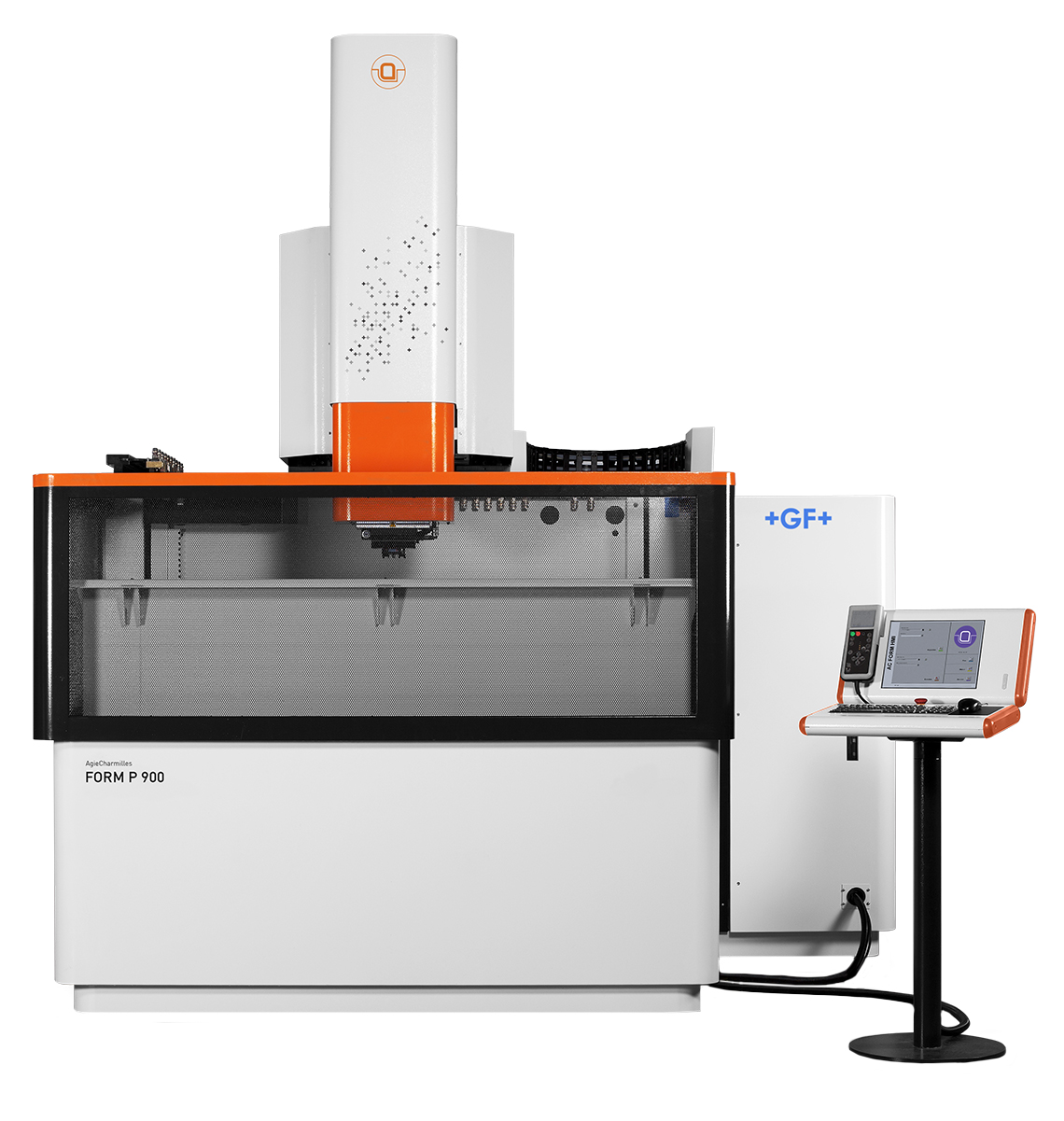

AgieCharmilles FORM P 900

AgieCharmilles FORM P Series

The AgieCharmilles FORM P Series die sinking EDM’s are built to deliver performance, reliability, and accuracy for die and mold parts with deep ribs. Utilizing GF’s Predictive Learning System (PLS), ISPG, High Velocity Pulsation (HVP), Adaptive Current Control (ACC), and Adaptive Current Optimization (ACO), the FORM P is able to optimize its machining process to deliver precision and efficiency without compromising quality and maintaining machine and tool life.

AgieCharmilles FORM P 900

Travels
Travel Distance X-axis
900 mm (35.4 in)
Travel Distance Y-axis
700 mm (27.6 in)
Travel Distance Z-axis
500 mm (19.7 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
7.5 m/min (295.3 in/min)
Table
Table Size
1100 x 900 mm (43.3 x 35.4 in)
Max Part Size
1814 x 1215 mm (71.4 x 47.8 in)
Max Part Height
600 mm (23.6 in)
Max Load
3000 kg (6613.9 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.1 µm Ra (3.9 µin Ra)
Tooling
Changer Capacity
10
Machine Size
Length
3100 mm (122.1 in)
Height
3320 mm (130.7 in)
Width
2970 mm (116.9 in)
