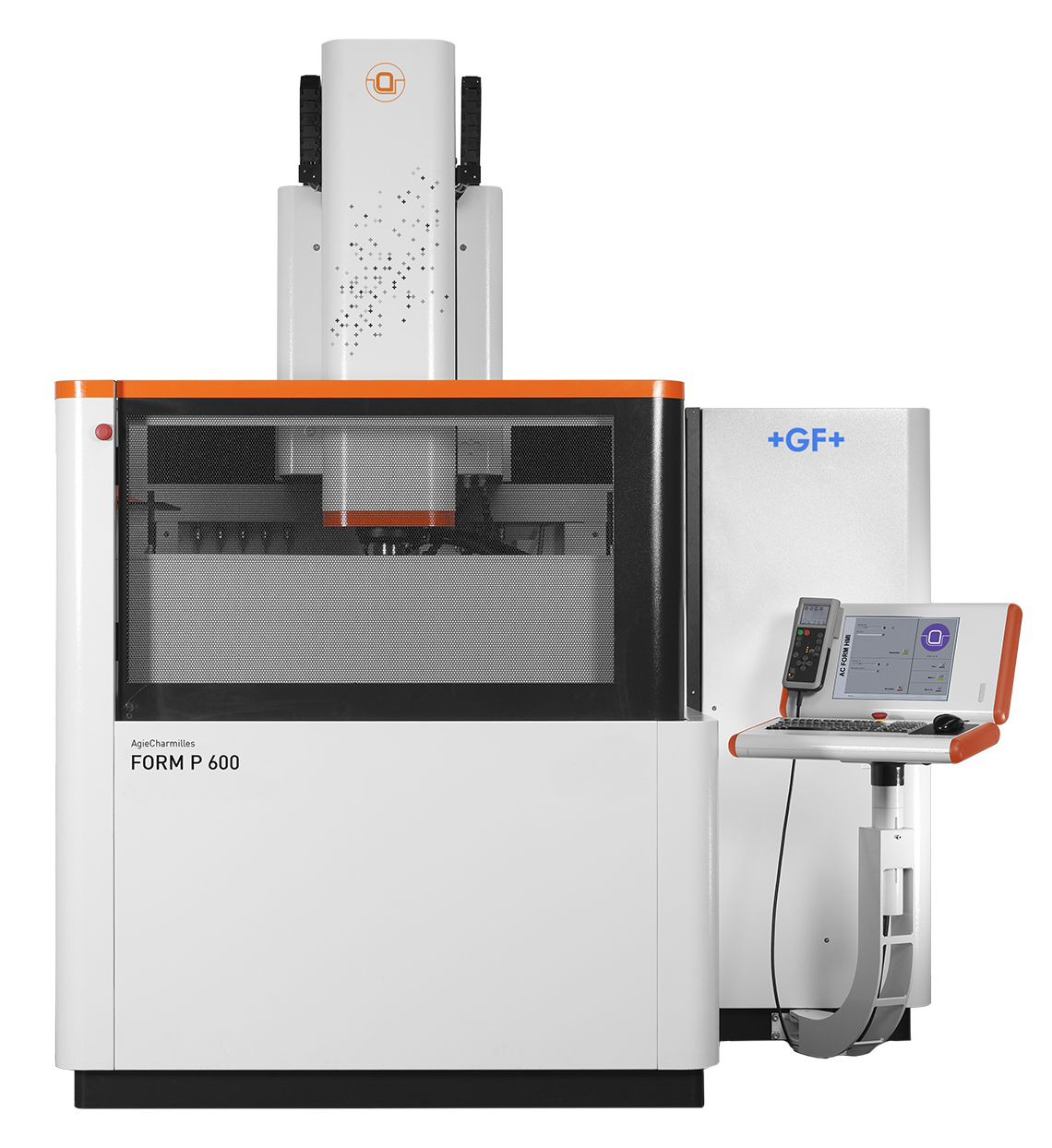

AgieCharmilles FORM P 600

AgieCharmilles FORM P Series

The AgieCharmilles FORM P Series die sinking EDM’s are built to deliver performance, reliability, and accuracy for die and mold parts with deep ribs. Utilizing GF’s Predictive Learning System (PLS), ISPG, High Velocity Pulsation (HVP), Adaptive Current Control (ACC), and Adaptive Current Optimization (ACO), the FORM P is able to optimize its machining process to deliver precision and efficiency without compromising quality and maintaining machine and tool life.

AgieCharmilles FORM P 600

Travels
Travel Distance X-axis
600 mm (23.6 in)
Travel Distance Y-axis
400 mm (15.7 in)
Travel Distance Z-axis
450 mm (17.7 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
10 m/min (393.7 in/min)
Table
Table Size
750 x 600 mm (29.5 x 23.6 in)
Max Part Size
1220 x 870 mm (48 x 34.2 in)
Max Part Height
470 mm (18.5 in)
Max Load
1600 kg (3527.4 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.08 µm Ra (3.1 µin Ra)
Tooling
Changer Capacity
6/16-18/32-160
Machine Size
Length
2110 mm (83.1 in)
Height
2780 mm (109.4 in)
Width
2265 mm (89.2 in)
