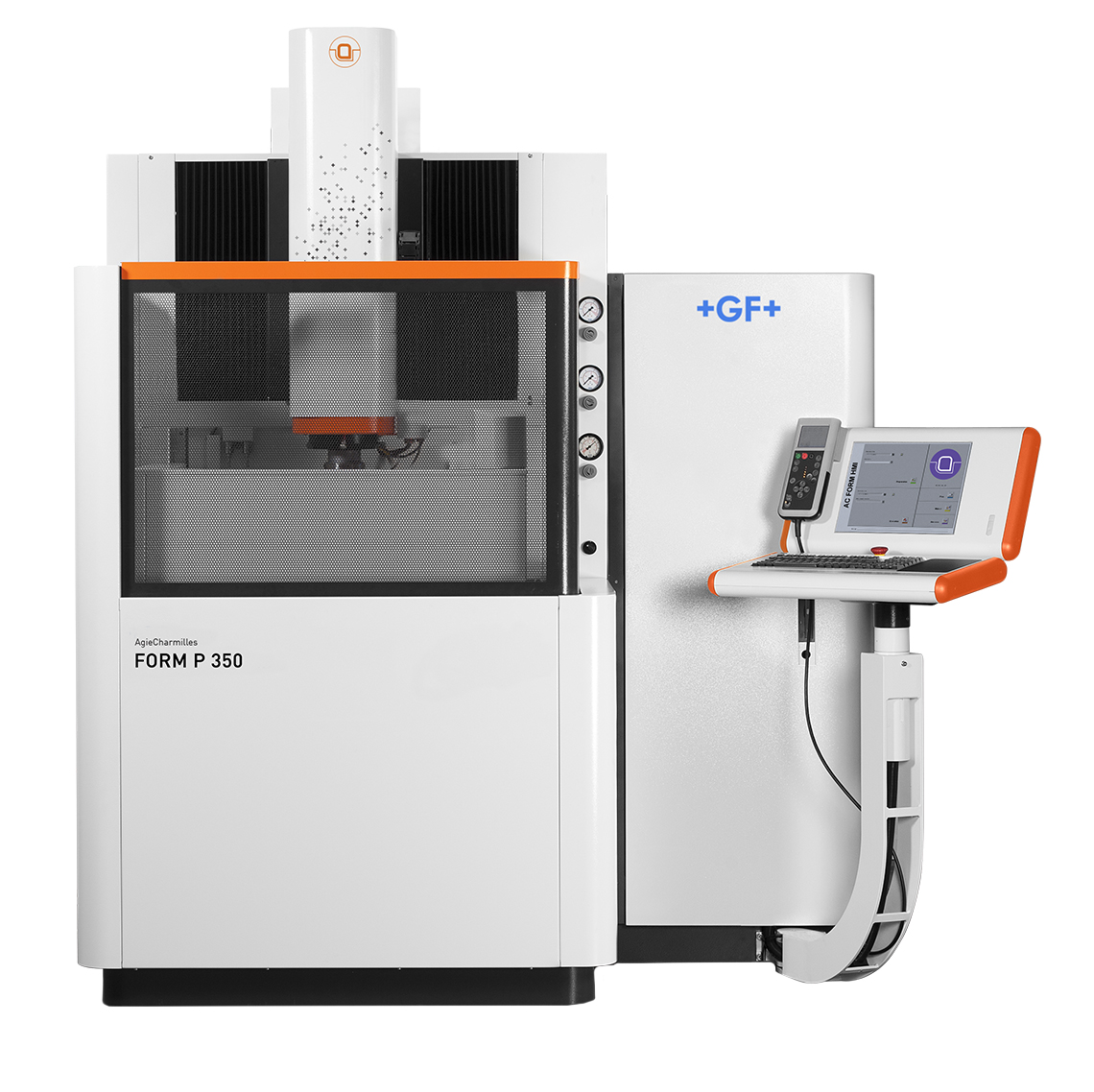

AgieCharmilles FORM P 350

AgieCharmilles FORM P Series

The AgieCharmilles FORM P Series die sinking EDM’s are built to deliver performance, reliability, and accuracy for die and mold parts with deep ribs. Utilizing GF’s Predictive Learning System (PLS), ISPG, High Velocity Pulsation (HVP), Adaptive Current Control (ACC), and Adaptive Current Optimization (ACO), the FORM P is able to optimize its machining process to deliver precision and efficiency without compromising quality and maintaining machine and tool life.

AgieCharmilles FORM P 350

Travels
Travel Distance X-axis
350 mm (13.8 in)
Travel Distance Y-axis
250 mm (9.8 in)
Travel Distance Z-axis
300 mm (11.8 in)
Traverse Rate X-axis
6 m/min (236.2 in/min)
Traverse Rate Y-axis
6 m/min (236.2 in/min)
Traverse Rate Z-axis
15 m/min (590.5 in/min)
Table
Table Size
500 x 400 mm (19.7 x 15.7 in)
Max Part Size
790 x 530 mm (31.1 x 20.9 in)
Max Part Height
275 mm (10.8 in)
Max Load
500 kg (1102.3 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
80 A
Voltage
3 x 380V/400V ±10%; 50/60 Hz
Best Surface Finish
0.08 µm Ra (3.1 µin Ra)
Tooling
Changer Capacity
4/5/16-18/32-160
Machine Size
Length
1690 mm (66.5 in)
Height
2398 mm (94.4 in)
Width
1900 mm (74.8 in)
