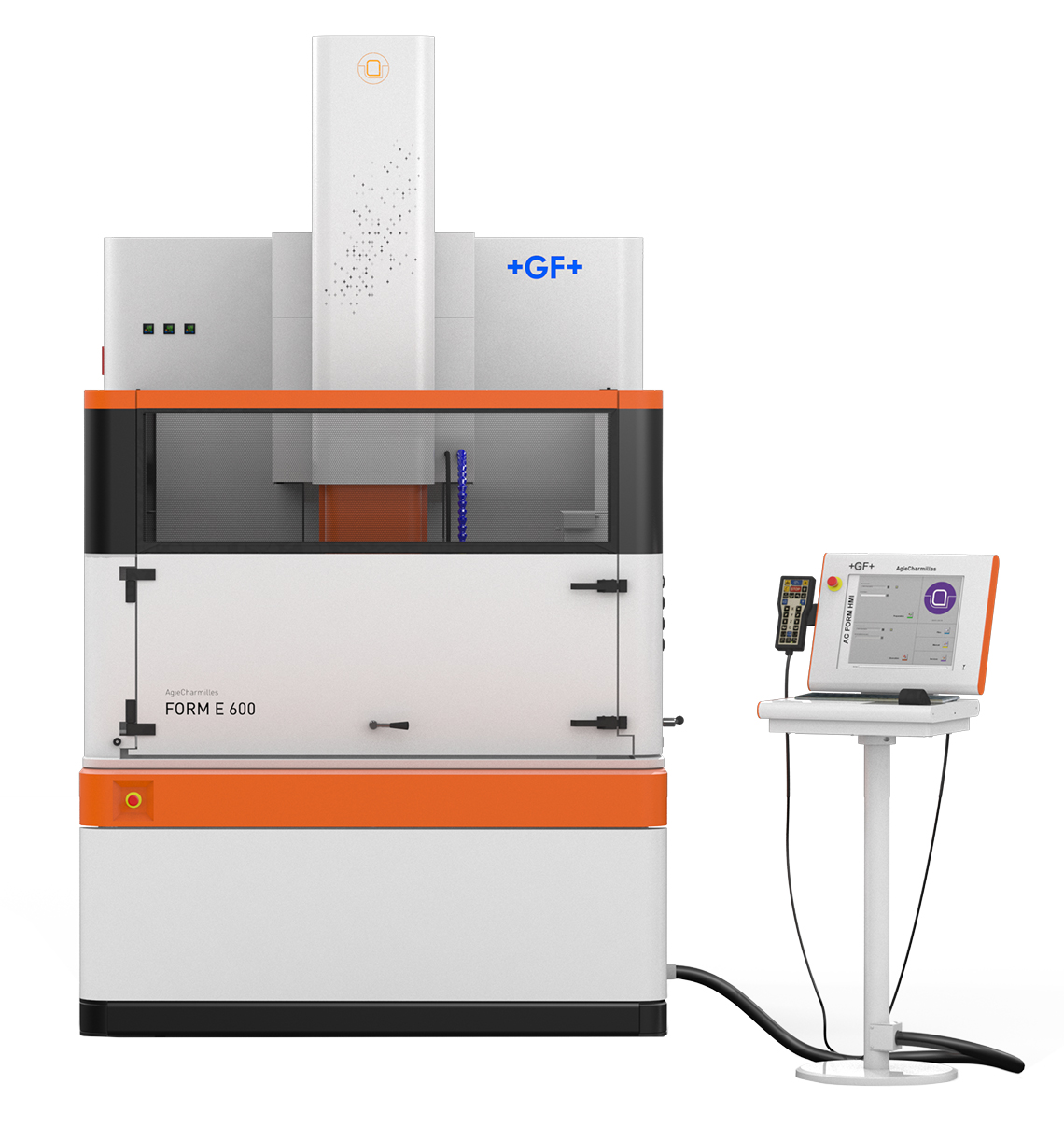

AgieCharmilles FORM E 600

AgieCharmilles FORM E Series

The FORM E Series die sinking electrical discharge machining center is built to provide the best value for your investment. Equipped with die sinking and hole drilling capabilities, integrated GF Machining Solutions Intelligent Speed Power Generator (ISPG), easy accessibility, and the ability to cut materials from steel to carbide offers users to broaden their die and mold machining capabilities and productivity.

AgieCharmilles FORM E 600

Travels
Travel Distance X-axis
600 mm (23.6 in)
Travel Distance Y-axis
400 mm (15.7 in)
Travel Distance Z-axis
400 mm (15.7 in)
Table
Table Size
800 x 600 mm (31.5 x 23.6 in)
Max Part Size
1000 x 700 mm (39.4 x 27.6 in)
Max Part Height
400 mm (15.7 in)
Max Load
1000 kg (2204 lbs)
Electrode
Max Weight
100 kg (220.5 lbs)
Generator
80 A
Min Surface Roughness
0.1 µm (3.9 µin)
Tooling
Changer Capacity
16
Machine Size
Length
1731 mm (68.1 in)
Height
2372 mm 93.4 in)
Width
1000 mm (39.4 in)
