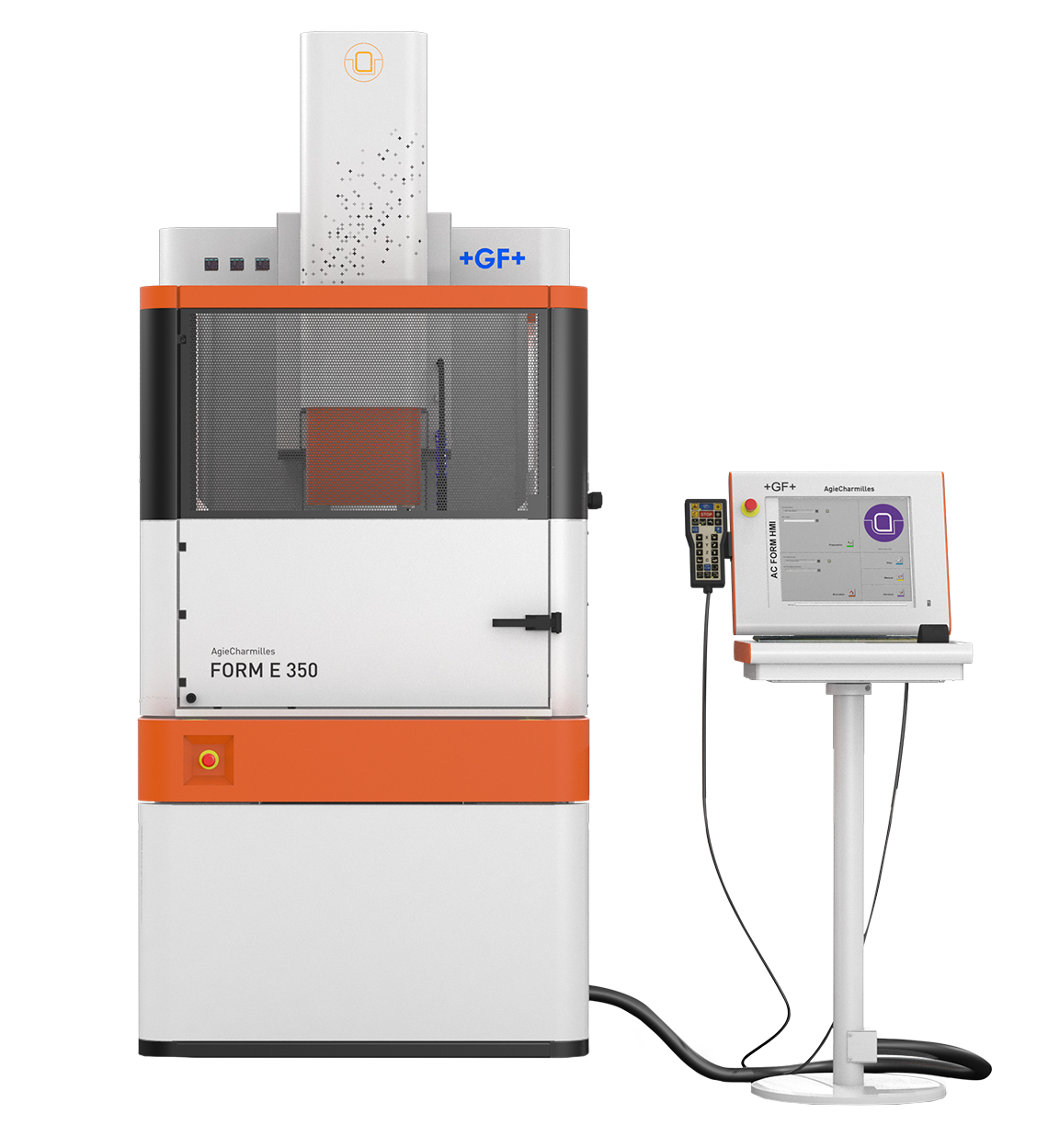

AgieCharmilles FORM E 350

AgieCharmilles FORM E Series

The FORM E Series die sinking electrical discharge machining center is built to provide the best value for your investment. Equipped with die sinking and hole drilling capabilities, integrated GF Machining Solutions Intelligent Speed Power Generator (ISPG), easy accessibility, and the ability to cut materials from steel to carbide offers users to broaden their die and mold machining capabilities and productivity.

AgieCharmilles FORM E 350

Travels
Travel Distance X-axis
350 mm (13.8 in)
Travel Distance Y-axis
250 mm (9.8 in)
Travel Distance Z-axis
250 mm (9.8 in)
Table
Table Size
630 x 400 mm (24. x 15.7 in)
Max Part Size
800 x 500 mm (31.5 x 19.7 in)
Max Part Height
265 mm (10.4 in)
Max Load
200 kg (440.9 lbs)
Electrode
Max Weight
50 kg (110.2 lbs)
Generator
140 A
Min Surface Roughness
0.1 µm (3.9 µin)
Tooling
Changer Capacity
26
Machine Size
Length
2700 mm (106.3 in)
Height
2858 mm (112.5 in)
Width
1600 mm (63 in)
