AgieCharmilles CUT P 350

AgieCharmilles CUT P Series

Achieve limitless possibilities with GF Machining Solutions' Wire Cut EDM, the AgieCharmilles CUT P Series. Designed for optimal performance, reduced time to market, and faster production, the CUT P features a newly improved power generator, 20% faster cutting speeds, 20% lower cost per part, and -25% wire consumption. Optimized to produce parts for medical, automotive, and electrical components and supported with Industry 4.0 automation technology, the CUT P will take your machining capabilities to new heights.

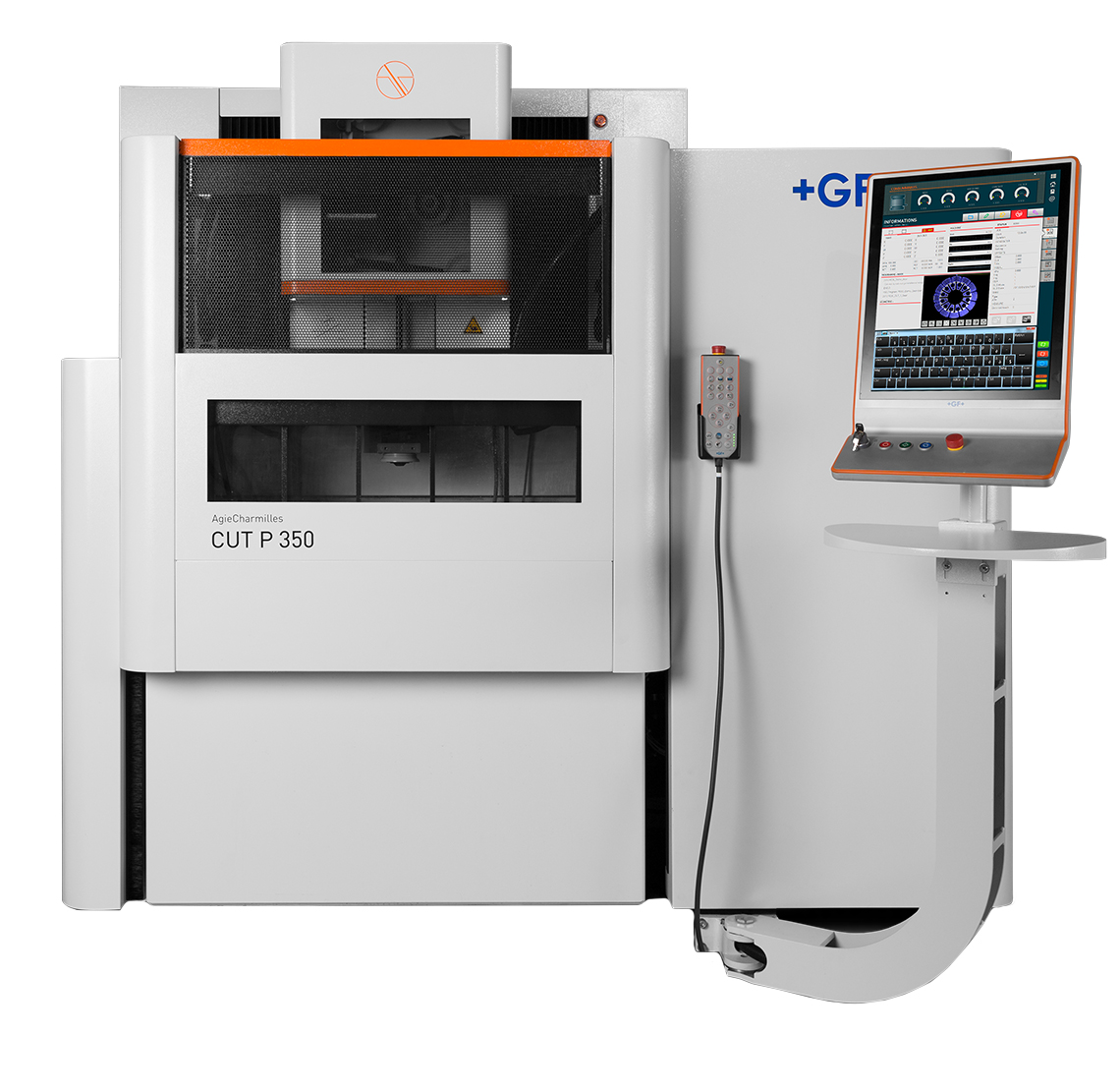

AgieCharmilles CUT P 350

Travels
Travel Distance X-axis
350 mm (13.8 in)
Travel Distance Y-axis
220 mm (8.7 in)
Travel Distance Z-axis
220 mm (8.7 in)
Travel Distance U-axis
350 mm (13.8 in)
Travel Distance V-axis
220 mm (8.7 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate U/V-axis
3 m/min (118.1 in/min)
Table
Table Size
680 x 450 mm (26.8 x 17.7 in)
Max Part Size (Top Load)
1000 x 150 mm (39.4 x 5.9 in)
Max Part Size (Front Load)
800 x 550 mm (31.5 x 21.6 in)
Max Part Height (Top/Front Load)
220 mm (8.7 in)
Max Load
750 kg (1653 lbs)
Wire
Diameter
0.07-0.33 mm (0.003-0.013 in)
Max Taper
45°/220 mm (8.7 in)
Surface Finish
0.08 µm Ra (3 µin Ra)
Machine Size
Length
2234 mm (87.9 in)
Height
2154 mm (84.8 in)
Width
2050 mm (80.7 in)
