AgieCharmilles CUT P 1250

AgieCharmilles CUT P Series

Achieve limitless possibilities with GF Machining Solutions' Wire Cut EDM, the AgieCharmilles CUT P Series. Designed for optimal performance, reduced time to market, and faster production, the CUT P features a newly improved power generator, 20% faster cutting speeds, 20% lower cost per part, and -25% wire consumption. Optimized to produce parts for medical, automotive, and electrical components and supported with Industry 4.0 automation technology, the CUT P will take your machining capabilities to new heights.

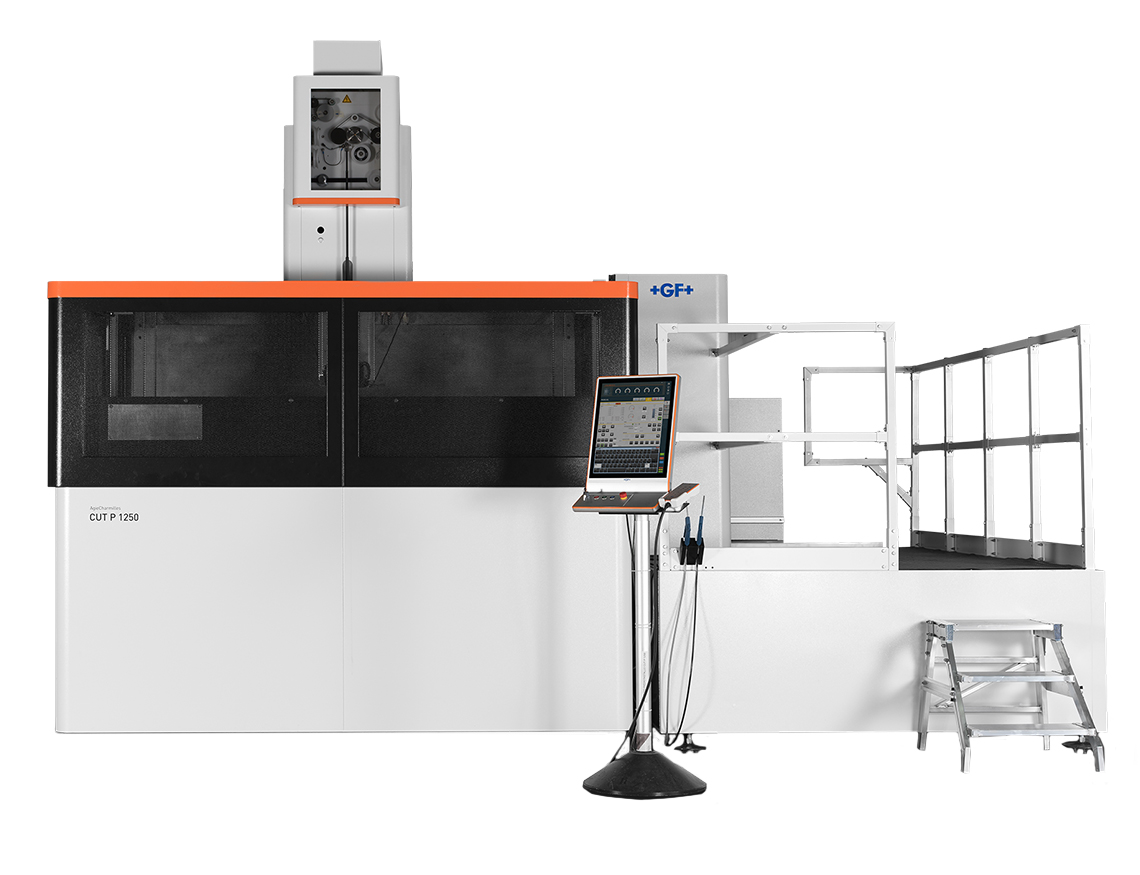

AgieCharmilles CUT P 1250

Travels
Travel Distance X-axis
1250 mm (49.2 in)
Travel Distance Y-axis
850 mm (33.5 in)
Travel Distance Z-axis
700 mm (27.6 in)
Travel Distance U-axis
1250 mm (49.2 in)
Travel Distance V-axis
850 mm (33.5 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate U/V-axis
3 m/min (118.1 in/min)
Table
Table Size
1956 x 1324 mm (77 x 52.1 in)
Max Part Size (Top Load)
2300 x900 mm (90.5 x 35.4 in)
Max Part Size (Front Load)
2300 x 1300 mm (90.5 x 51.2 in)
Max Part Height (Top/Front Load)
750 mm (29.5 in)
Max Load
6000 kg (13228 lbs)
Wire
Diameter
0.07-0.33 mm (0.003-0.013 in)
Max Taper
30°/800 mm (31.5 in)
Surface Finish
0.2 µm Ra (8 µin Ra)
Machine Size
Length
4185 mm (164.8 in)
Height
3725 mm (146.6 in)
Width
4851 mm (191 in)
