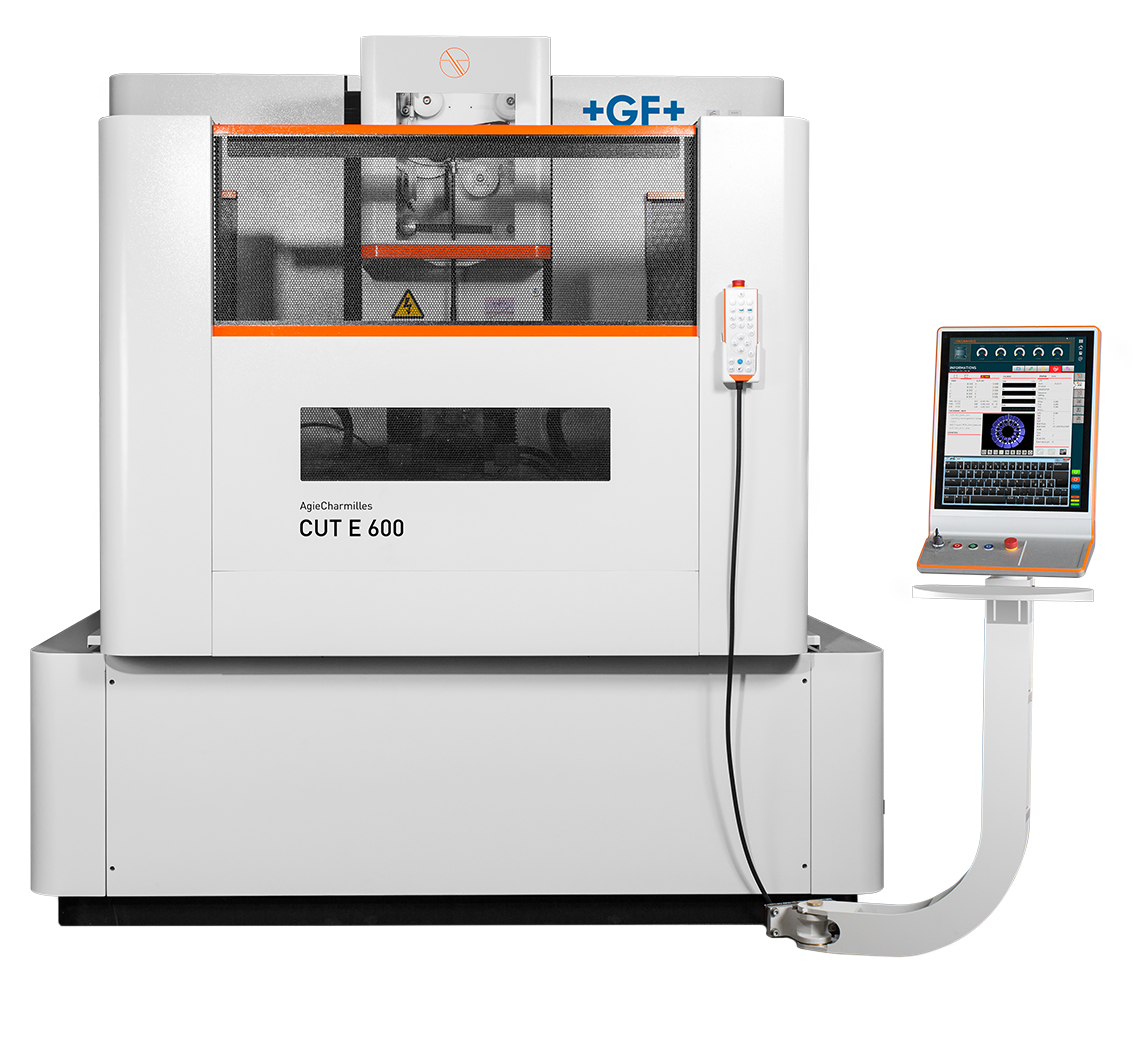

AgieCharmilles CUT E 600

AgieCharmilles CUT E Series

The AgieCharmilles CUT E Series puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.

AgieCharmilles CUT E 600

Travels
Travel Distance X-axis
600 mm (23.6 in)
Travel Distance Y-axis
400 mm (15.7 in)
Travel Distance Z-axis
350 mm (13.8 in)
Travel Distance U-axis
±50 mm (2 in)
Travel Distance V-axis
±50 mm (2 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Z-axis
3 m/min (118.1 in/min)
Table
Max Part Size
1030 x 800 mm (40.5 x 31.5 in)
Max Part Height
345 mm (13.6 in)
Max Load
1000 kg (2205 lbs)
Wire
Diameter
0.1-0.3 mm (0.004-0.012 in)
Max Taper
30°/56 mm (2.2 in)
Surface Finish - Steel/Carbide
0.12/0.18 µm Ra (4.7/7.1 µin Ra)
Machine Size
Length
2790 mm (109.8 in)
Height
2320 mm (91.3 in)
Width
2020 mm (79.5 in)
