AgieCharmilles CUT E 350

AgieCharmilles CUT E Series

The AgieCharmilles CUT E Series puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.

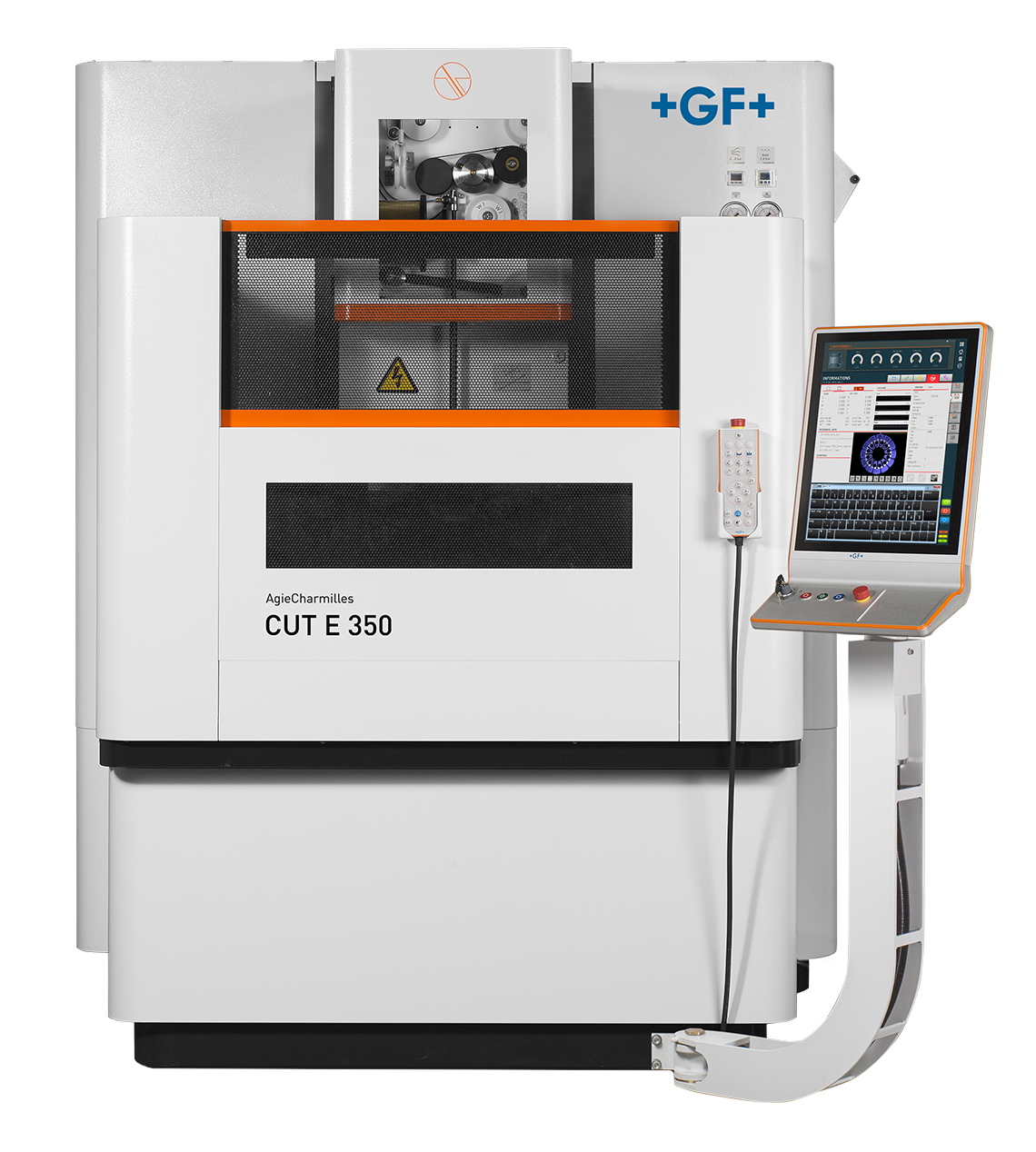

AgieCharmilles CUT E 350

Travels
Travel Distance X-axis
350 mm (13.8 in)
Travel Distance Y-axis
250 mm (9.8 in)
Travel Distance Z-axis
250 mm (9.8 in)
Travel Distance U-axis
±45 mm (1.8 in)
Travel Distance V-axis
±45 mm (1.8 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Z-axis
3 m/min (118.1 in/min)
Table
Max Part Size
820 x 680 mm (32.3 x 26.8 in)
Max Part Height
245 mm (9.6 mm)
Max Load
400 kg (880 lbs.)
Wire
Diameter
0.1-0.3 mm (0.004-0.012 in)
Max Taper
30°/56 mm (2.2 in)
Surface Finish - Steel/Carbide
0.12/0.18 µm Ra (4.7/7.1 µin Ra)
Machine Size
Length
2470 mm (97.2 in)
Height
2200 mm (86.6 in)
Width
1750 mm (68.9 in)
