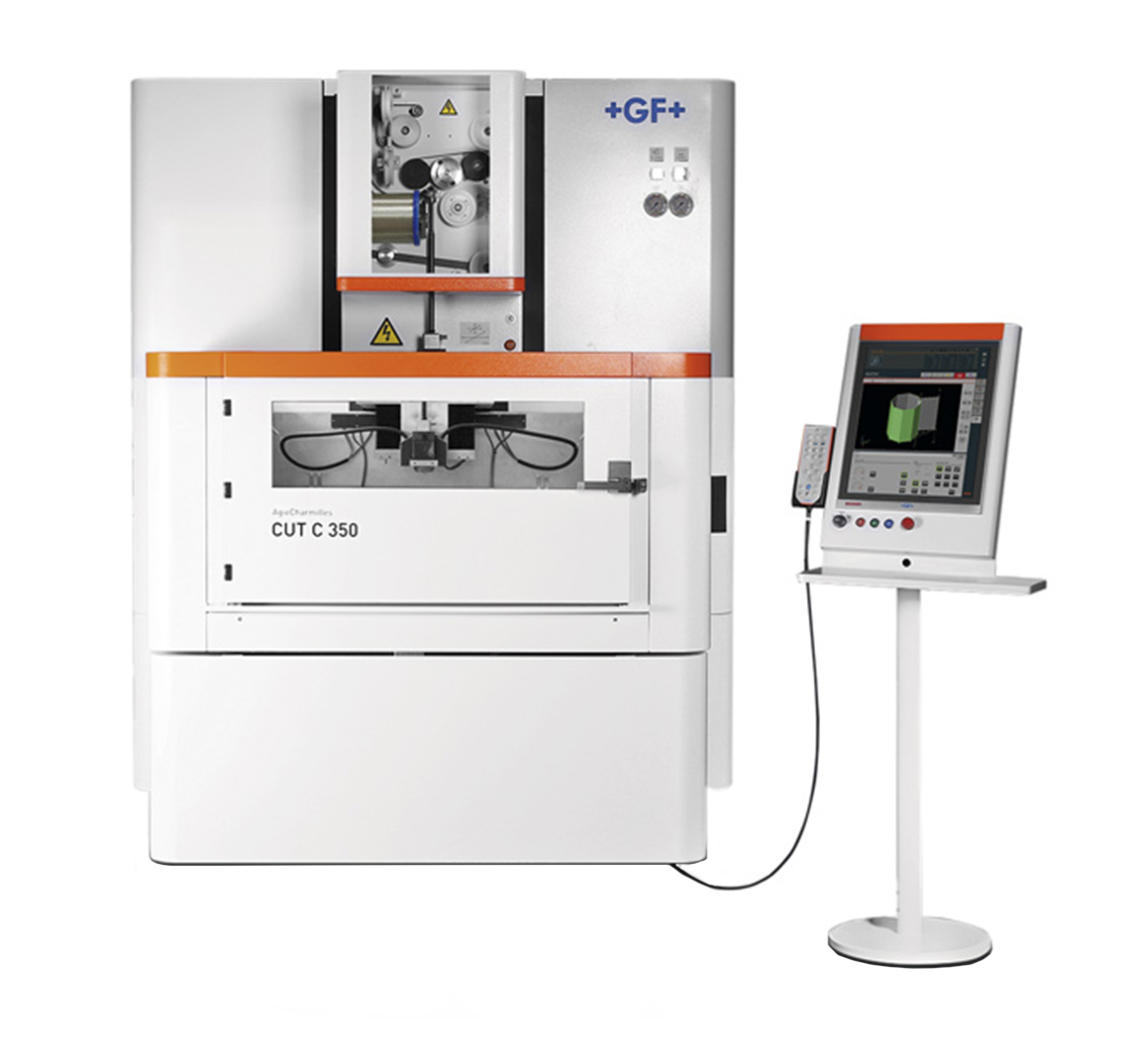

AgieCharmilles CUT C 350

AgieCharmilles CUT C Series

The new GF CUT C Series wire cut EDM comes equipped with intelligent technologies to minimize operative costs and to optimize operating efficiency. The CUT C features a low-maintenance design that uses minimal components and consumables, integrated anti-collision protection system, linear glass scales and encoders, GF's Intelligent Power Generator system, and POWER-EXPERT system to automatically select optimal power levels.

AgieCharmilles CUT C 350

Travels
Travel Distance X-axis
350 mm (13.8 in.)
Travel Distance Y-axis
250 mm (9.8 in.)
Travel Distance Z-axis
250 mm (9.8 in.)
Travel Distance U-axis
±45 mm (1.8 in.)
Travel Distance V-axis
±45 mm (1.8 in.)
Table
Max Part Size
820 x 680 mm (32.3 x 26.8 in.)
Max Part Height
250 mm (9.8 in.)
Max Load
400 kg (880 lbs.)
Wire
Diameter
0.15-0.3 mm (0.006-0.012 in)
Max Taper
±30°/50 mm (2 in)
Surface Finish - Steel/Carbide
0.25/0.3 µm Ra (9.8/11.8 µin Ra)
