AgieCharmilles CUT 3000 X

AgieCharmilles CUT 1000/2000/3000 Series

The AgieCharmilles CUT 1000, 2000, and 3000 Series machines are designed for micro machining and top end accuracy. With wire diameters are small as 0.02 mm, you will be able acquire new opportunities for ultra-precise machining of miniature components with nano level surface finishes of RA 0.04 µm (1.6 µin). Additional options for these machines include the OilTech, S, and X models designed for usage with inert dielectric oil to reduce electrochemical damage and corrosion, increased speed with the usage of a direct power supply module, and extreme precision achieving ±1.5 µm pitch and M-shape form accuracy.

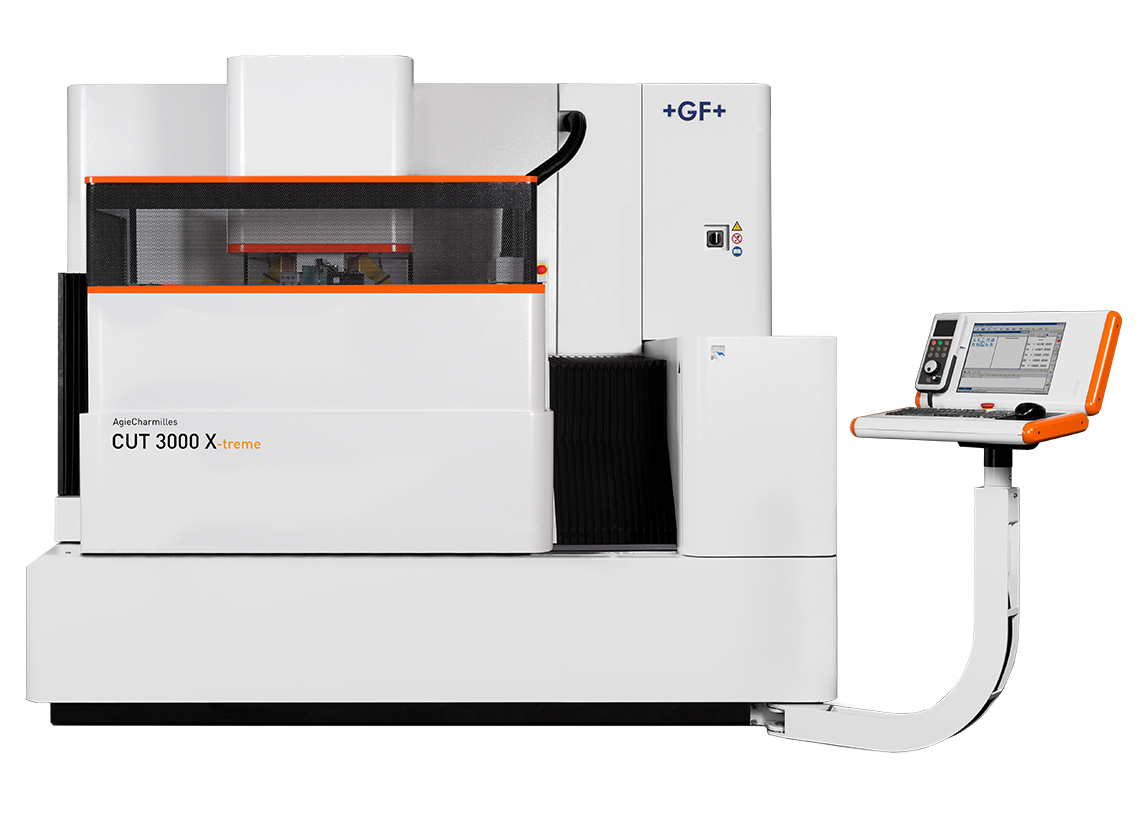

AgieCharmilles CUT 3000 X

Travels
Travel Distance X-axis
500 mm (19.7 in)
Travel Distance Y-axis
350 mm (13.8 in)
Travel Distance Z-axis
256 mm (10 in)
Travel Distance U-axis
±70 mm (2.7 in)
Travel Distance V-axis
±70 mm (2.7 in)
Rapid Traverse Rate X/Y-axis
3 m/min (118.1 in/min)
Table
Table Size
850 x 550 mm (33.5 x 21.6 in)
Max Part Size
1050 x 650 mm (41.3 x 25.6 in)
Max Part Height
250 mm (9.8 in)
Max Load
400 kg (880 in)
Wire
Diameter
0.1-0.3 mm (0.004-0.012 in)
Max Taper
30°/100 mm (3.9 in)
Surface Finish
0.07 µm Ra (2.7 µin Ra)
Machine Size
Length
2115 mm (83 in)
Height
2247 mm (89 in)
Width
2685 mm (106 in)
