AgieCharmilles CUT 1000

AgieCharmilles CUT 1000/2000/3000 Series

The AgieCharmilles CUT 1000, 2000, and 3000 Series machines are designed for micro machining and top end accuracy. With wire diameters are small as 0.02 mm, you will be able acquire new opportunities for ultra-precise machining of miniature components with nano level surface finishes of RA 0.04 µm (1.6 µin). Additional options for these machines include the OilTech, S, and X models designed for usage with inert dielectric oil to reduce electrochemical damage and corrosion, increased speed with the usage of a direct power supply module, and extreme precision achieving ±1.5 µm pitch and M-shape form accuracy.

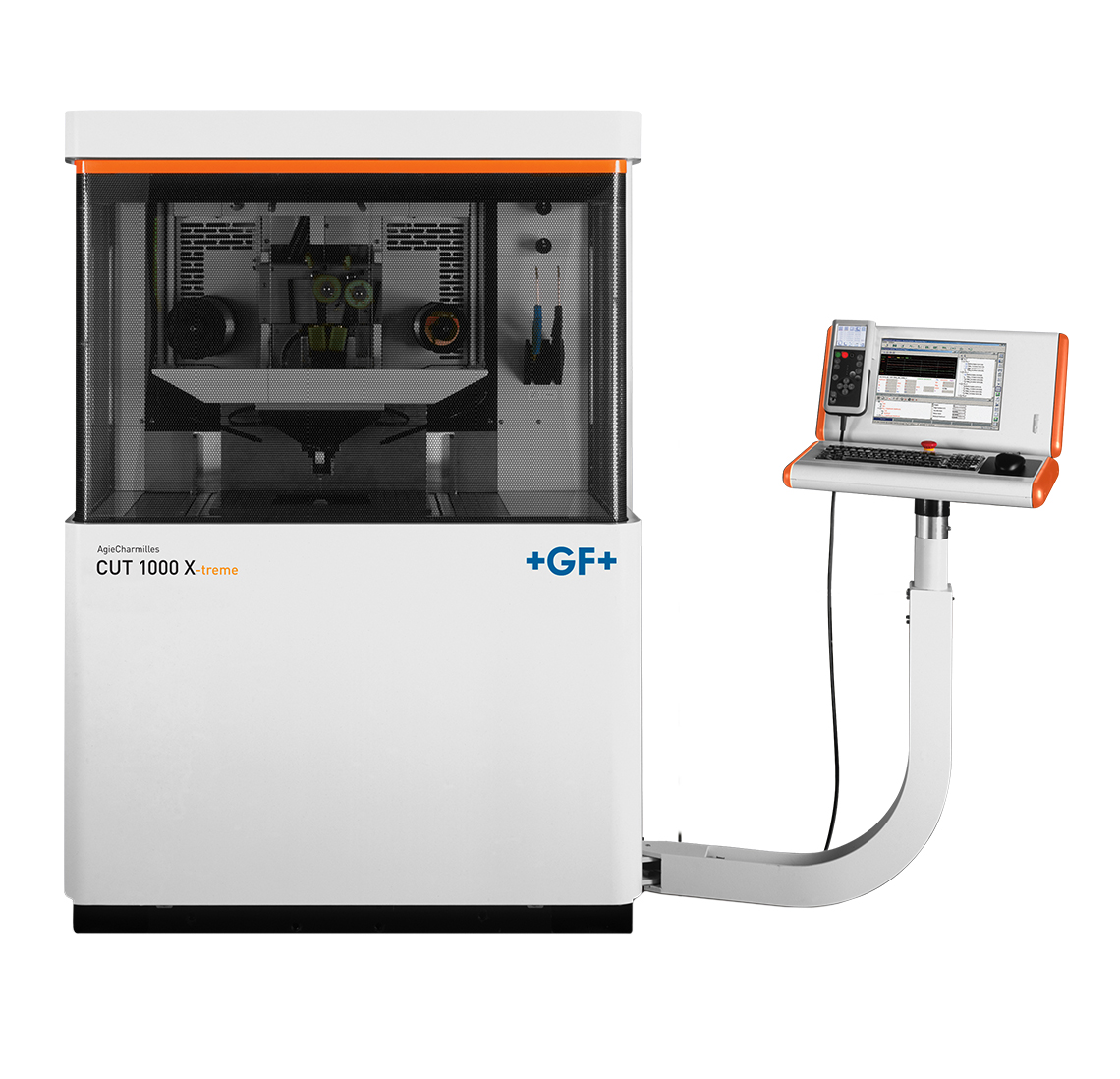

AgieCharmilles CUT 1000

Travels
Travel Distance X-axis
220 mm (8.7 in)
Travel Distance Y-axis
160 mm (6.3 in)
Travel Distance Z-axis
100 mm (3.9 in)
Travel Distance U-axis
±40 mm (1.6 in)
Travel Distance V-axis
±40 mm (1.6 in)
Rapid Traverse Rate
3 m/min (118.1 in/min)
Table
Table Size
550 x 340 mm (21.6 x 13.4 in)
Max Part Size
300 x 200 mm (11.8 x 7.9 in)
Max Part Height
80 mm (3.1 in)
Max Load
35 kg (77 lbs)
Wire
Diameter
0.07-0.2 mm (0.0027-0.0078 in)
Max Taper
3°/80 mm (3.1 in)
Min Surface Finish - Steel
0.05 µm Ra (2 µin Ra)
Machine Size
Length
1900 mm (74.8 in)
Height
1970 mm (77.5 in)
Width
1400 mm (55 in)
