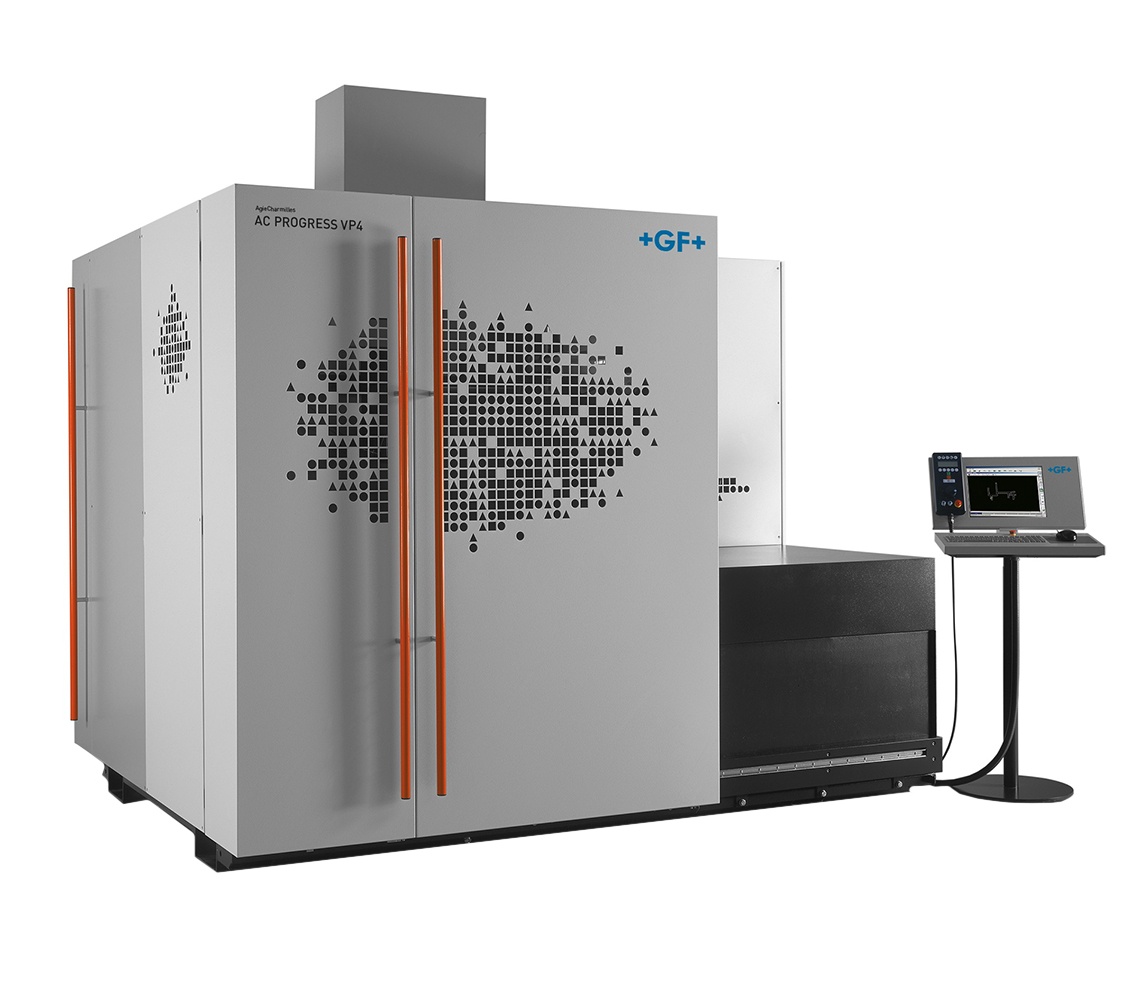

AgieCharmilles AC Progress VP4

AgieCharmilles AC Progress Series

The AgieCharmilles AC Progress VP Series Wire Cut EDM’s are designed for enhanced speed, precision, and efficiency. The VP Series features high static rigidity, built in transducers and optical scale measuring systems, and the ability to house 2 different wires in a single-wire system. The integrated Duotec system allows you to make big contour cuts with a thicker wire, and easily swap to a thinner wire for precision in one continuous machining process.

AgieCharmilles AC Progress VP4

Travels
Travel Distance X-axis
800 mm (31.5 in)
Travel Distance Y-axis
550 mm (21.6 in)
Travel Distance Z-axis
525 mm (20.7 in)
Travel Distance U-axis
800 mm (31.5 in)
Travel Distance V-axis
550 mm (21.6 in)
Rapid Traverse Rate X-axis
3 m/min (118.1 in/min)
Rapid Traverse Rate Y-axis
3 m/min (118.1 in/min)
Table
Max Part Size
1300 x 1000 mm (51.9 x 39.3 in)
Max Part Height
510 mm (20 in)
Max Load
3000 kg (6613.8 lbs)
Wire
Diameter
0.15-0.33 mm (0.006-0.013 in)
Max Taper
30°/300 mm (3.9 in)
Best Roughness Standard
< 0.1 µm Ra (< 4 µin Ra)
Machine Size
Length
2931 mm (115.4 in)
Height
2746 mm (108.1 in)
Width
2874 mm (113.1 in)
